products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Dock Leveler
Created with Pixso.

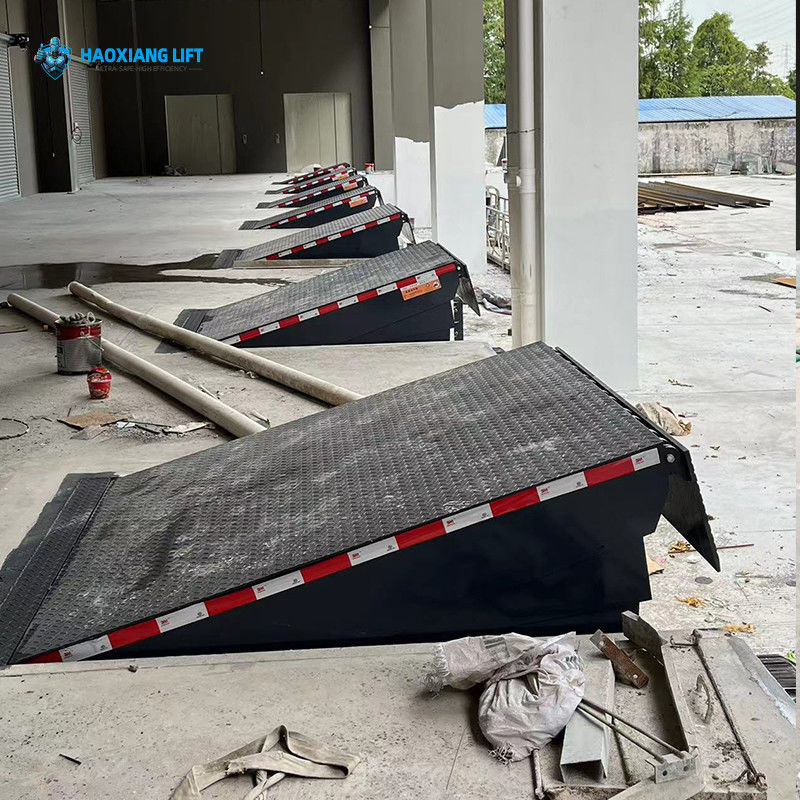

Adjustable Hydraulic Fixed Dock Leveler Plate Stationary Elevator For Truck Container

Adjustable Hydraulic Fixed Dock Leveler Plate Stationary Elevator For Truck Container

Adjustable Hydraulic Fixed Dock Leveler Plate Stationary Elevator For Truck Container

Brand Name: HAOXIANG BRAND
Model Number: HX-GTY6×8
MOQ: 1 unit
Price: USD1600- USD6800 / UNIT
Payment Terms: T/T
Supply Ability: 1100 units per year
Detail Information
Product Description
Detail Information
Place of Origin:
GUANGDONG,CHINA
Certification:
CS/ISO
Product Name:
Hydraulic Dock Leveler
Country Of Origin:
China
Control Mode:
Hydraulic
Lip Board Thickness:
15mm
Core Components:
Motor, Oil Pump
Device Size:
W1980 × L1830× H495mm
Packaging Details:
Naked packaging
Highlight:

Truck Container Fixed Dock Leveler

,

Fixed Dock Leveler Stationary Elevator

,

Adjustable dock plate ramp

Product Description

Adjustable 10-20 ton hydraulic dock leveler stationary elevator dock ramp for truck container





Advanced Dock Leveler Control Systems


(Expand with IoT integration case studies and automation workflows)

  • Next-generation control architectures:
    • CAN bus system integration
    • Proportional valve control technology
    • Predictive maintenance algorithms

  • Human-machine interfaces:
    • RFID access control systems
    • Touchscreen PLC interfaces
    • Voice command integration

  • Smart dock automation:
    • Truck presence detection systems (LiDAR vs. pressure sensor comparisons)
    • Automatic height synchronization
    • Cloud-based performance monitoring

  • Cybersecurity considerations:
    • Industrial network hardening protocols
    • Firmware update management
    • Data encryption standards

  • Failure mode analysis:
    • Fault tree analysis (FTA) documentation
    • Mean time between failures (MTBF) calculations
    • Redundant system design approaches    ​





Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model Equipment specifications (mm) Load Capacity (t) Pit size (mm) Adjustment range (mm)
HX-GTY6×6 1830(W)×1830(L)×495(H) 6-20T 1870(W)×1830(L)×500(H) +400/-300
HX-GTY6.5×6 1980(W)×1830(L)×495(H) 6-20T 2020(W)×1830(L)×500(H) +400/-300
HX-GTY7×6 2130(W)×1830(L)×495(H) 6-20T 2170(W)×1830(L)×500(H) +400/-300
HX-GTY6×8 1830(W)×2280(L)×495(H) 6-20T 1870(W)×2280(L)×500(H) +400/-300
HX-GTY6.5×8 1980(W)×2280(L)×495(H) 6-20T 2020(W)×2280(L)×500(H) +400/-300
HX-GTY7×8 2130(W)×2280(L)×495(H) 6-20T 2170(W)×2280(L)×500(H) +400/-300
HX-GTY6×10 1830(W)×2850(L)×495(H) 6-20T 1870(W)×2850(L)×500(H) +400/-300
HX-GTY6.5×10 1980(W)×2850(L)×495(H) 6-20T 2020(W)×2850(L)×500(H) +400/-300



Adjustable Hydraulic Fixed Dock Leveler Plate Stationary Elevator For Truck Container 0Adjustable Hydraulic Fixed Dock Leveler Plate Stationary Elevator For Truck Container 1Adjustable Hydraulic Fixed Dock Leveler Plate Stationary Elevator For Truck Container 2
