Goods Unloading Loading Dock Equipment Leveler Lifts PLC Control Custom

Large Image : Goods Unloading Loading Dock Equipment Leveler Lifts PLC Control Custom

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CS/ISO
Model Number:	HX-GTY 6×8

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 1500-2000
Packaging Details:	nakes
Delivery Time:	7-15 working days
Payment Terms:	T/T
Supply Ability:	5000 UNIT PER YEAR

Contact Now

Goods Unloading Loading Dock Equipment Leveler Lifts PLC Control Custom

Description

Product Name:	Hydraulic Dock Leveler	Country Of Origin:	China
Control Mode:	Hydraulic	Device Size:	W1980 × L1830× H495mm
Lip Board Thickness:	15mm Anti-slip Grooved Plate	Core Components:	Motor, Oil Pump
Adjustment Range:	+400mm/-300mm	Warranty:	12 Months
Articulated:	Open / Close	Color:	Green / Customizable
Highlight:	PLC loading dock equipment , custom loading dock equipment , PLC loading dock lifts

Goods Unloading Loading Dock Equipment Leveler Lifts PLC Control Custom

What is the Hydraulic Dock Leveler?
Optimizing Logistics Throughput with Advanced Dock Solutions
As global supply chains accelerate, modern distribution hubs demand cutting-edge loading systems to bridge the gap between storage facilities and transport vehicles. State-of-the-art dock levelers have become indispensable assets for warehouses and logistics centers, enabling seamless cargo transitions and significantly boosting material flow velocities.
Our hydraulic dock leveler integrates imported powertrain technology, combining aesthetic elegance with functional excellence. Features include:
Sleek, ergonomic design with corrosion-resistant finish
Electro-hydraulic drive system for precise position control
Safety-certified operation with anti-pinch technology
Whisper-quiet <65dB operation at full load
Zero-leakage sealing technology
Intuitive single-button activation system

What are the Benefits of the Hydraulic Dock Leveler?
Optimizing Material Handling with Advanced Dock Levelers
Designed for modern industrial facilities, the HaoXiang dock leveler serves as a dynamic bridge between warehouse platforms and transport vehicles. This equipment enables seamless forklift access into truck beds, eliminating obstructions and enhancing loading/unloading efficiency by up to 35% while ensuring personnel and cargo safety.

Key Advantages:
Diamond-Grip Deck Plate
Laser-cut anti-skid pattern with 1.5mm raised profile
Maintains traction even in wet conditions (tested at 0.8μ surface roughness)
Premium Motor System
Siemens/ABB variable frequency drive motor
3dB lower noise emissions than industry average
IP69K-rated enclosure for washdown environments
Precision Milling Technology
CNC-milled guide grooves with 45° angled profile
Reduces electric forklift slippage by 60% during incline operations
Zero-Leakage Hydraulics
Proprietary double-lip sealed cylinders
Passed 50,000-cycle pressure fatigue testing without leakage

Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

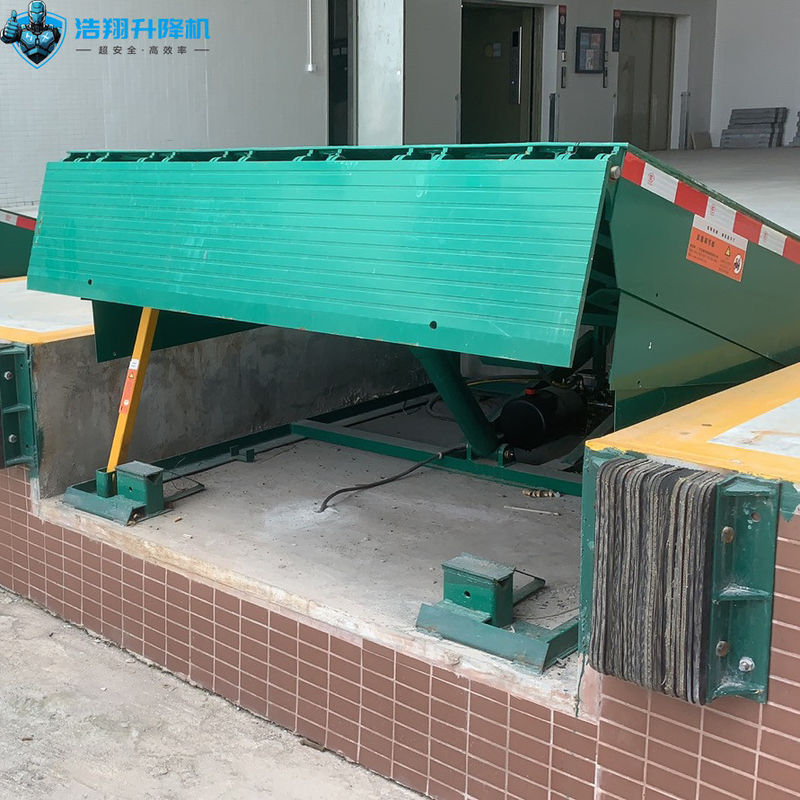

What does the Hydraulic Dock Leveler look like?
Goods Unloading Loading Dock Equipment Leveler Lifts PLC Control Custom 0

What is the name of our company and where we are?

Haoxiang: Pioneering Hydraulic Lifting Solutions Since 2005
Strategically located in Zhongshan's manufacturing hub, our 21,500㎡ state-of-the-art facility produces industry-leading hydraulic equipment. As a government-recognized high-tech enterprise, we combine 30 million RMB capital strength with German-engineered precision.

Differentiators:

Product Portfolio: Full range of hydraulic lifts, dock levelers, and goods lifts
Technology: AI-powered predictive maintenance systems for equipment
Safety: Compliance with EN 1570 and ASME B30.1 standards
Capacity: 15,000 units/year production capacity with 89% automation rate
Service: 24/7 national support with 45 mobile service units
