Automatic Loading Bay Dock Leveller Steel Plate Lifter For Cargo Loading And Unloading Hydraulic Loading Dock

Large Image : Automatic Loading Bay Dock Leveller Steel Plate Lifter For Cargo Loading And Unloading Hydraulic Loading Dock

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	HX-GTY 6×5

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 1500-2000 /UNIT
Packaging Details:	Naked packaging
Delivery Time:	10-15 working days
Payment Terms:	T/T
Supply Ability:	5000 UNITS PER YEAR

Contact Now

Automatic Loading Bay Dock Leveller Steel Plate Lifter For Cargo Loading And Unloading Hydraulic Loading Dock

Description

Power Supply:	220v/380v	Safety Features:	Safety Legs, Lip Extension Plate, Toe Guards
Load:	5000KG	Availability:	In Stock
Control System:	Push Button	Adjustment Range:	+400mm/-300mm
Highlight:	hydraulic loading dock leveler , steel plate dock leveller , automatic cargo loading lifter

Automatic Loading Bay Dock Leveller Steel Plate Lifter For Cargo Loading And Unloading Hydraulic Loading Dock

What is the Hydraulic Dock Leveler?

Powered by hydraulic systems, these dock levelers rely on a primary cylinder to lift the platform, while a smaller cylinder controls the lip plate. The lip plate naturally rests on the truck bed, forming a seamless transition between the dock and the vehicle to optimize loading efficiency. This fixed hydraulic dock leveler also boasts a scalable structure, which adapts to different height needs and transport scenarios, ensures compatibility with various trucks and containers, and addresses the uneven handling issues of traditional models.

What are the Benefits of the Hydraulic Dock Leveler?

Effortless operation experience: An electro-hydraulic control system enables easy use, which improves loading efficiency and cuts down time and labor expenses.
Durable steel construction: It is made from high-strength manganese steel square tubes, providing outstanding pressure-bearing capacity and preventing deformation.
Powerful system configuration: Equipped with high-quality hydraulic cylinders and a stable power unit, it delivers strong driving force and excellent sealing performance.
Reliable hydraulic unit: Featuring tight sealing, a sturdy structure, and an integrated design, it effectively avoids oil leakage.
Safety support bar: It shields maintenance personnel when they conduct inspection or repair tasks inside the dock bridge.
Non-slip platform surface: The patterned steel platform prevents slipping incidents during the platform's lifting or lowering process.
5-degree lip plate tilt: This incline angle ensures a tighter fit with the truck bed.
Long-shaft connection structure: The lip plate is linked through a long-shaft connector, enhancing structural strength and reliability.
Rear U-shaped design: This design allows for a smoother and more hassle-free connection between the dock and the vehicle.

Products Model and Parameter Series of the Hydraulic Dock Leveler

Specifications, sizes and colors can be customized according to customer requirements

Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

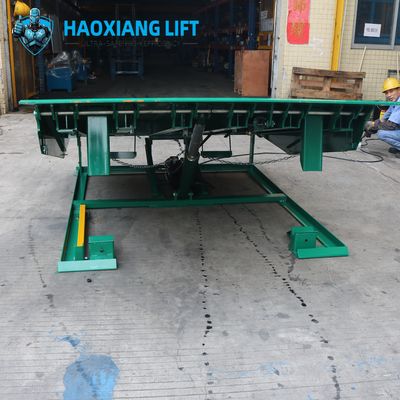

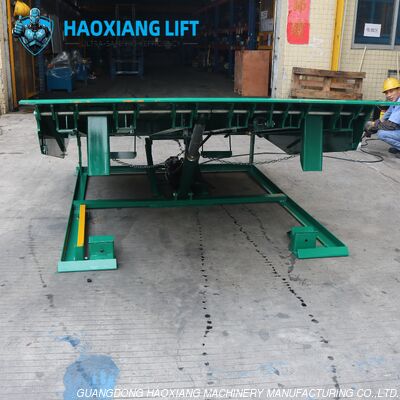

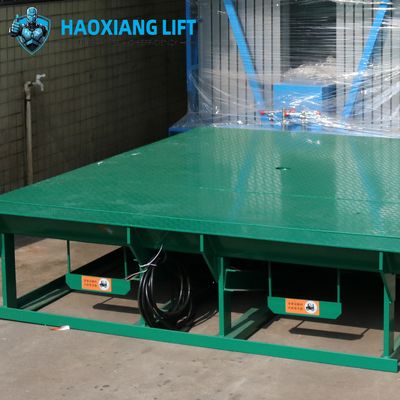

What does the Hydraulic Dock Leveler look like?
