Factory Logistics Loading and Unloading Platform, Fixed Dock Leveler, Steel Lifting Hydraulic Dock Ramp
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Hydraulic Dock Leveler |
| Lift Drive / Actuation |
Hydraulic |
| Power supply |
220v/380v |
| Working lift |
More Than 20000times |
| Articulated |
Open / Close |
What is the Hydraulic Dock Leveler?
Engineered for safety and compliance, this CE/ISO certified hydraulic dock leveler features a 15mm thick lip board and fixed scissor lift design. The electric-powered hydraulic system (220v/380v) with motor/oil pump core ensures reliable operation through 20,000+ working cycles. Safety features include:
±700mm height adjustment (+400/-300mm)
Open/close articulation mechanism
6-20T load capacity range
Vibrant green finish (customizable)
1-year manufacturer's warranty
Ideal for safe goods transfer between trucks and warehouses.
What are the Benefits of the Hydraulic Dock Leveler?
CE/ISO Safety Certification
Rigorous testing ensures compliance with machinery safety directives (CE) and quality management standards (ISO 9001).
Anti-Pinch Safety Edge
Integrated sensors automatically halt operation if obstructed during movement, preventing crush injuries.
Overload Protection System
Electronic load cells monitor weight distribution, restricting operation beyond 20-ton capacity to prevent structural failure.
Emergency Descent Control
Manual override pump enables controlled lowering during power outages, maintaining operator control in critical situations.
High-Grip Deck Surface
Diamond-pattern steel plate with anti-slip coating ensures secure footing even in wet or oily warehouse environments.
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

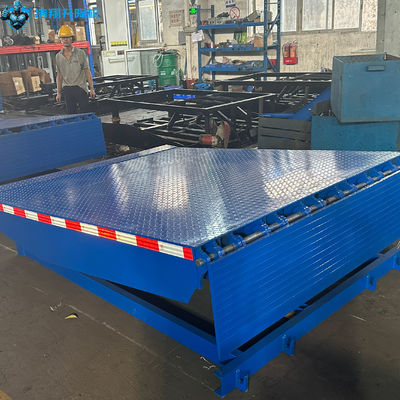

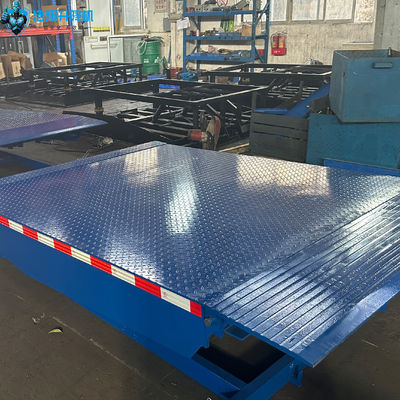

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
