15T Fixed Dock Leveler Plate For Trucks Forklift Warehouses
What is the Hydraulic Dock Leveler?
Premium Hydraulic Dock Leveler with Customization Options
Certified to CE/ISO standards, this China-built dock leveler features a 15mm structural lip and an electric hydraulic system with a maintenance-free motor and high-performance pump. Adjustable from -300mm to +400mm, its 6.5ft×6ft platform suits most loading bay configurations. With a 6–20-ton capacity and 20,000-cycle lifespan, the unit ships in an epoxy-coated green finish (customer color matching available) and operates on 220V/380V supplies. A 12-month warranty covers all components, while its articulating scissor lift design eliminates vertical gaps during vehicle docking procedures.
What are the Benefits of the Hydraulic Dock Leveler?
15mm Abrasion-Resistant Lip
Laser-cut 15mm steel lip with zinc phosphate coating resists corrosion and impacts, maintaining dock seal integrity in harsh industrial environments.
20,000-Cycle Performance Guarantee
Backed by accelerated life testing, the leveler sustains 20,000 cycles at full load—surpassing 10 years of light-duty use in retail distribution.
Fixed Scissor Lift Rigidity
Monoblock scissor arms with 40mm diameter pivot pins reduce deflection to <0.3mm/ton, critical for stabilizing 6–20-ton precision machinery transfers.
±700mm Height Adaptability
From -300mm for city delivery vans to +400mm for mega-trailers, the leveler accommodates 85% of global commercial vehicle bed heights.
Dual Certification Excellence
CE Type-C approval and ISO 3834-2 welding certification validate compliance with EU safety requirements and manufacturing quality benchmarks.
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

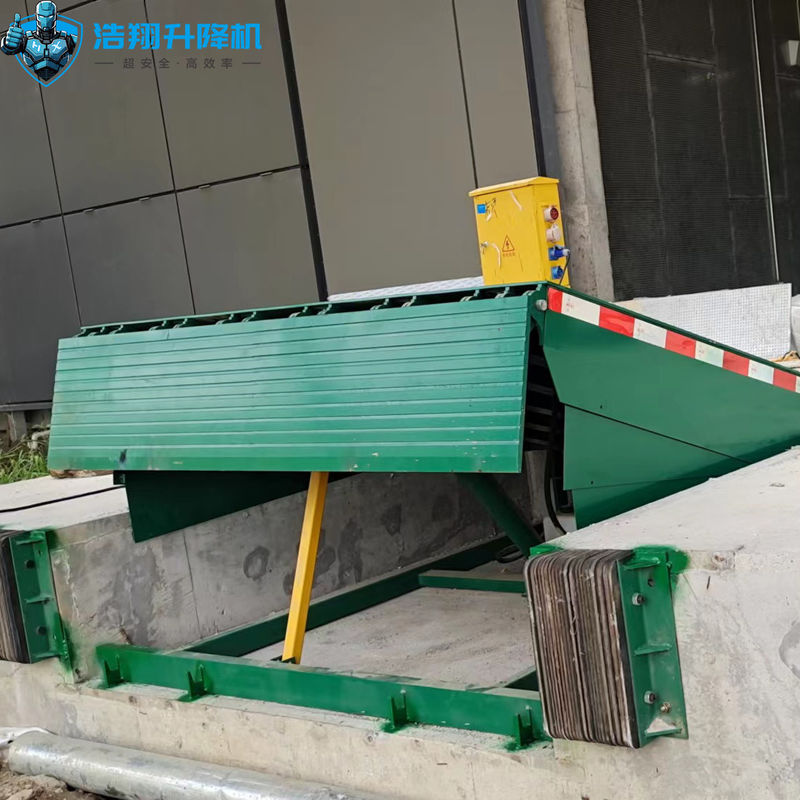

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Haoxiang: Pioneering Hydraulic Lifting Solutions Since 2005
Strategically located in Zhongshan's manufacturing hub, our 21,500㎡ state-of-the-art facility produces industry-leading hydraulic equipment. As a government-recognized high-tech enterprise, we combine 30 million RMB capital strength with German-engineered precision.
Differentiators:
Product Portfolio: Full range of hydraulic lifts, dock levelers, and goods lifts
Technology: AI-powered predictive maintenance systems for equipment
Safety: Compliance with EN 1570 and ASME B30.1 standards
Capacity: 15,000 units/year production capacity with 89% automation rate
Service: 24/7 national support with 45 mobile service units
