Industrial Hydraulic Freight Pallet Elevator Lift System For Warehouse Cargo

Large Image : Industrial Hydraulic Freight Pallet Elevator Lift System For Warehouse Cargo

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CS/ISO
Model Number:	DSL2-5

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD1600- USD6800 / UNIT
Packaging Details:	nakes
Delivery Time:	7-15 working days
Payment Terms:	T/T
Supply Ability:	2000 units per year

Contact Now

Industrial Hydraulic Freight Pallet Elevator Lift System For Warehouse Cargo

Description

Load Capacity:	2000kg	Lifting Height:	5m
Platform Size:	2000×2000mm	Power Supply:	AC 380V/50Hz
Lifting Speed:	6M/min	Warranty:	12 Months
Product Name:	Hydraulic Guide Rail Lift	Country Of Origin:	China
Control Mode:	Hydraulic
Highlight:	Hydraulic pallet elevator , Warehouse pallet elevator , Industrial warehouse cargo elevator

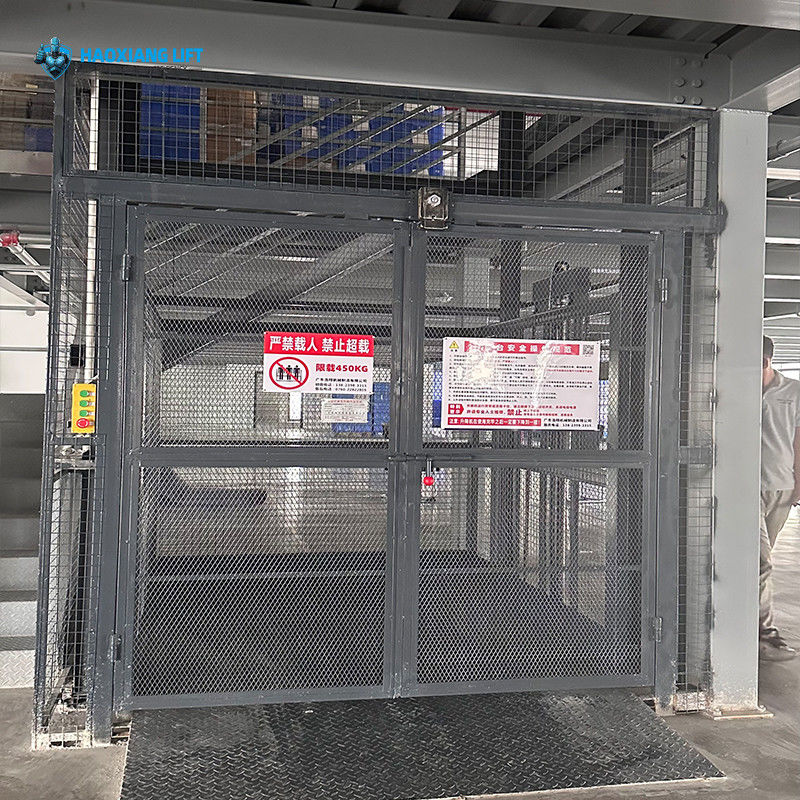

Industrial Hydraulic Freight Lift with Double Guide Rails, 5m Lifting Height, Customizable Platform Size and Load

This cargo lift is built with safety in mind. It includes an emergency stop switch, overload protection, and a safety interlock to prevent misoperation. Its hydraulic system is equipped with an explosion-proof valve that prevents sudden platform drops in case of pipeline rupture. The system uses high-quality hydraulic oil and a high-efficiency power pack, ensuring smooth, silent, and energy-saving operation.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model	Rated load (kg)	Lifting stroke (mm)	Lowering height (mm)	Table size (mm)	Lifting time	Motor power (kw)
DSL1-3	1000	3000	100	2000×1800	6m/min	3
DSL1-12	1000	12000	100	2500×2000	6m/min	3
DSL2-4	2000	4000	150	2000×1800	6m/min	4
DSL2-10	2000	10000	200	3000×3500	6m/min	4
DSL3-5	3000	5000	150	3000×1800	6m/min	5.5
DSL3-8	3000	8000	150	2000×1700	6m/min	5.5
DSL4-5	4000	5000	250	3000×4000	6m/min	7.5
DSL4-10	4000	10000	150	5000×3000	6m/min	7.5
DSL5-6	5000	6000	400	5800×3000	6m/min	11
DSL10-15	10000	15000	400	7000×5000	6m/min	18.5
DSL15-9	15000	9000	800	8000×4000	6m/min	30
DSL15-10	15000	10000	800	9000×4500	6m/min	30

Industrial Hydraulic Freight Pallet Elevator Lift System For Warehouse Cargo 0
