Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m

Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m
Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m

Large Image :  Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: HAOXIANG BRAND
Certification: CE/ISO
Model Number: DSL 1-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD2300- USD5900 / UNIT
Packaging Details: Naked packaging
Delivery Time: 7-15 WORKING DAYS
Payment Terms: T/T
Supply Ability: 1500 UNITS PER YEAR
Contact Now

Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m

Description
Product Name: Hydraulic Guide Rail Lift Country Of Origin: Made In China
Control Mode: Hydraulic Type: Cargo Lifts
Lifting Speed: 6m/min Power Supply: AC 380V/50Hz
Entrance: Front/Through/90 Degree Main Function: Lifting Cargos
Lead Time (days): 15-20 Working Days Rated Load: Up To 50 Tons,Customizable
Platform Size: 1.2m X 1.2m
Highlight:

5 ton hydraulic cargo lift

,

15m height cargo lift platform

,

heavy duty hydraulic lift platform

Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m
Hydraulic Cargo Lift Platform Load Up To 5 Tons Height Up To 15m
Key Features
Parameter Specification
Product Name Hydraulic Guide Rail Lift
Installation Indoor/Outdoor
Safety Features Emergency Stop, Overload Protection, Safety Brake
Usage Loading And Unloading
Application Warehouse, Factory, Distribution Center
Product Overview
Freight lifts are primarily used to transport various goods vertically between different floors of a building. It can meet the needs of goods transportation in different industries and scenarios, such as factory floors for transporting raw materials, semi-finished products and finished products; warehouses are used for the storage and handling of goods; shopping malls are used to transport goods, shelves, etc.; The hotel is used to transport ingredients, linen and other items in the logistics area.
Product Benefits
  • Powerful Hydraulics: High-performance hydraulic system guarantees steady and precise lifting for heavy-duty loads.
  • Heavy-Duty Capacity: Engineered for oversized cargo, making transportation smoother and faster.
  • Durable in Any Climate: Resistant materials and robust enclosure allow reliable indoor/outdoor operation.
  • Comprehensive Safety: Built-in safety locks, emergency stop, and overload protection safeguard users and goods.
  • Optimized Vertical Design: Tall yet compact structure saves valuable floor area.
  • Low-Noise System: Smooth hydraulic motion works quietly in busy environments.
  • User-Friendly Interface: Easy-to-use control panel speeds up training and operation.
  • Customizable Size Options: Adjustable platform dimensions to match your requirements.
  • Tough Construction: Strong framework reduces wear and extends service life.
  • Eco-Efficient: Energy-saving hydraulics reduce power use and operating costs.
Technical Specifications
Specifications, sizes and colors can be customized according to customer requirements
Model Rated load (kg) Lifting stroke (mm) Lowering height (mm) Table size (mm) Lifting time Motor power (kw)
DSL1-3 1000 3000 100 2000×1800 6m/min 3
DSL1-12 1000 12000 100 2500×2000 6m/min 3
DSL2-4 2000 4000 150 2000×1800 6m/min 4
DSL2-10 2000 10000 200 3000×3500 6m/min 4
DSL3-5 3000 5000 150 3000×1800 6m/min 5.5
DSL3-8 3000 8000 150 2000×1700 6m/min 5.5
DSL4-5 4000 5000 250 3000×4000 6m/min 7.5
DSL4-10 4000 10000 150 5000×3000 6m/min 7.5
DSL5-6 5000 6000 400 5800×3000 6m/min 11
DSL10-15 10000 15000 400 7000×5000 6m/min 18.5
DSL15-9 15000 9000 800 8000×4000 6m/min 30
DSL15-10 15000 10000 800 9000×4500 6m/min 30

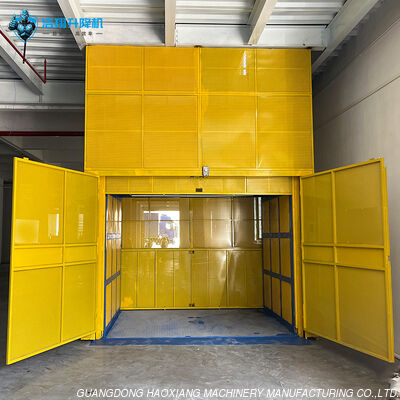

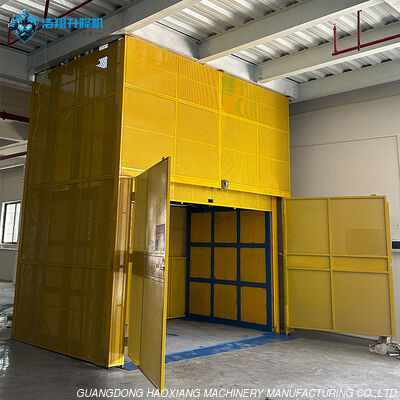

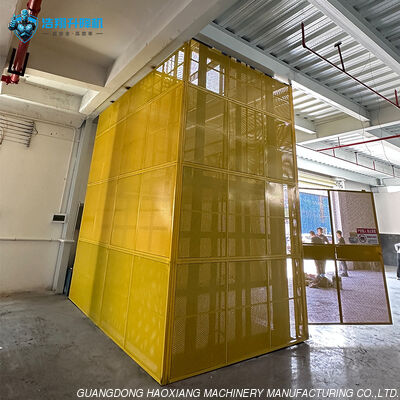

Product Images
Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m 0 Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m 1 Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m 2
About Our Company
Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility. Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.
Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide. We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.
Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m 3 Hydraulic Cargo Lift Platform Load Up To 5 Tons, Height Up To 15m 4
