3000kg Q235 Steel Vertical Hydraulic Cargo Lift Freight Platform Transportation System

3000kg Q235 Steel Vertical Hydraulic Cargo Lift Freight Platform Transportation System
3000kg Q235 Steel Vertical Hydraulic Cargo Lift Freight Platform Transportation System

Large Image :  3000kg Q235 Steel Vertical Hydraulic Cargo Lift Freight Platform Transportation System

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: HAOXIANG LIFT
Certification: CS/ISO
Model Number: DSL2-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD2300- USD6800 / UNIT
Packaging Details: Naked packaging
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 2000 units per year
Contact Now

3000kg Q235 Steel Vertical Hydraulic Cargo Lift Freight Platform Transportation System

Description
Product Name: Hydraulic Guide Rail Lift Load Capacity: 2000kg
Lifting Height: 4m Color: Grey
Power Supply: AC 380V/50Hz Lifting Speed: 6M/min
Country Of Origin: Made In China Control Mode: Hydraulic
Rated Load: Up To 30 Tons,Customizable
Highlight:

Q235 steel Hydraulic Cargo Lift

,

3000kg Hydraulic Cargo Lift

,

3000kg freight platform lift

Hydraulic Guide Rail Cargo Lift with 3T Capacity, Max Lifting Height 6m, for Warehouse and Factory Vertical Transportation



Hydraulic Guide Rail Lift – Product Descriptions (10 items)

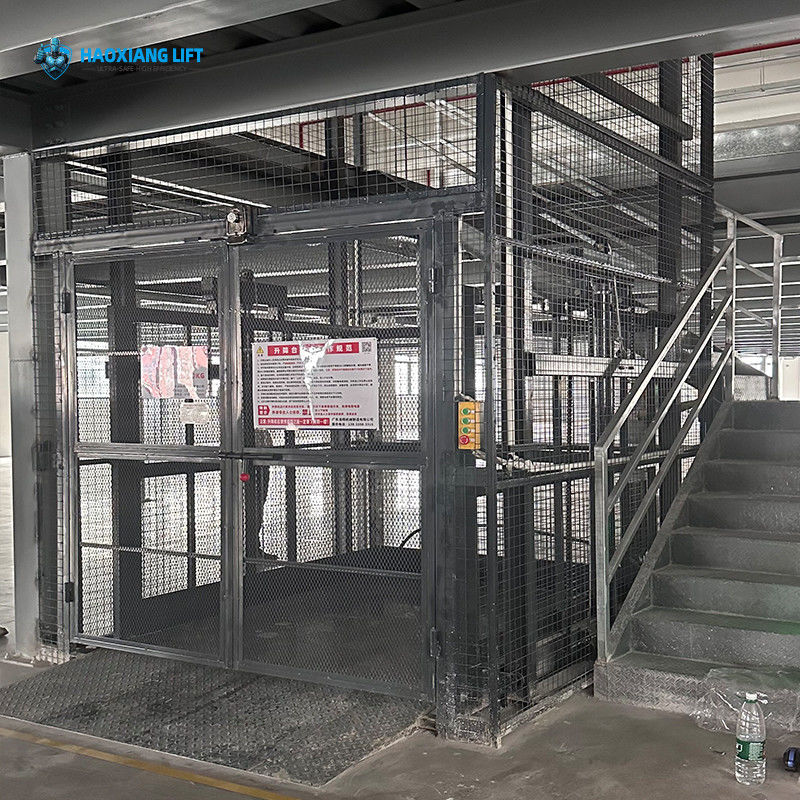

The Hydraulic Guide Rail Lift is a powerful vertical cargo transportation system designed to move heavy goods between floors efficiently and safely. Built with a high-strength Q235 steel structure and double guide rail support, it ensures excellent load stability and reliable lifting up to 6 meters. This lift can handle loads up to 3000kg, making it ideal for use in warehouses, factories, logistics centers, and mezzanine buildings. Its anti-skid platform surface, explosion-proof hydraulic valve, and multiple safety locks ensure safe operation even in high-frequency industrial environments.





Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model Rated load (kg) Lifting stroke (mm) Lowering height (mm) Table size (mm) Lifting time Motor power (kw)
DSL1-3 1000 3000 100 2000×1800 6m/min 3
DSL1-12 1000 12000 100 2500×2000 6m/min 3
DSL2-4 2000 4000 150 2000×1800 6m/min 4
DSL2-10 2000 10000 200 3000×3500 6m/min 4
DSL3-5 3000 5000 150 3000×1800 6m/min 5.5
DSL3-8 3000 8000 150 2000×1700 6m/min 5.5
DSL4-5 4000 5000 250 3000×4000 6m/min 7.5
DSL4-10 4000 10000 150 5000×3000 6m/min 7.5
DSL5-6 5000 6000 400 5800×3000 6m/min 11
DSL10-15 10000 15000 400 7000×5000 6m/min 18.5
DSL15-9 15000 9000 800 8000×4000 6m/min 30
DSL15-10 15000 10000 800 9000×4500 6m/min 30



3000kg Q235 Steel Vertical Hydraulic Cargo Lift Freight Platform Transportation System 03000kg Q235 Steel Vertical Hydraulic Cargo Lift Freight Platform Transportation System 13000kg Q235 Steel Vertical Hydraulic Cargo Lift Freight Platform Transportation System 2
