Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport

Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport
Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport

Large Image :  Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: HAOXIANG BRAND
Certification: CE/ISO
Model Number: DSL5-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD2300- USD6980 / UNIT
Packaging Details: Naked packaging
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 1500 UNITS PER YEAR
Contact Now

Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport

Description
Safety Features: Emergency Stop, Overload Protection, Safety Brake Lifting Height: Up To 50 Meters,Customizable
Table Size: 2000*2100mm Application: Warehouse, Factory, Distribution Center
Warranty: 1 Year Type: Cargo Lifts
Highlight:

500kg-20000kg hydraulic freight elevator

,

6m high four-fold door lift

,

large capacity platform lift with warranty

Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport
Commercial material lifts offer a practical solution for moving goods across different floors, and they work just as well for hotels, logistics centers, auto repair shops, and hypermarkets. The key feature here is total adaptability—voltage, table size, lift height, load capacity, and loading direction are all customizable, and guardrail doors are available as an optional add-on. The installation process is simple, requiring minimal site conditions.
Key Benefits
  • Quiet Operation: The hydraulic motor works with little noise and no vibration, maintaining a calm workplace.
  • Simple Controls: Easy-to-grasp panels shorten onboarding and accelerate daily operations.
  • Customizable Sizes: Tailored widths, depths, and heights align with facility layouts and specific cargo requirements.
  • Long-Lasting Build: Top-quality alloys and protective coatings endure continuous heavy use, lessening maintenance frequency.
  • Eco-Friendly Performance: Improved hydraulic systems reduce energy consumption, lowering costs while boosting sustainable work processes.
Technical Specifications
Specifications, sizes and colors can be customized according to customer requirements.
Model Rated load (kg) Lifting stroke (mm) Lowering height (mm) Table size (mm) Lifting time Motor power (kw)
DSL1-3 1000 3000 100 2000×1800 6m/min 3
DSL2-4 2000 4000 150 2000×1800 6m/min 4
DSL2-10 2000 10000 200 3000×3500 6m/min 4
DSL3-5 3000 5000 150 3000×1800 6m/min 5.5
DSL3-8 3000 8000 150 2000×1700 6m/min 5.5
DSL4-5 4000 5000 250 3000×4000 6m/min 7.5
DSL4-10 4000 10000 150 5000×3000 6m/min 7.5
DSL5-6 5000 6000 400 5800×3000 6m/min 11
Product Gallery

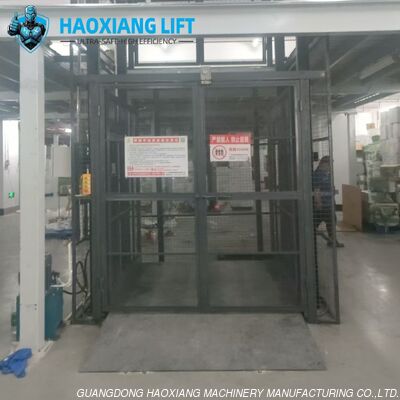

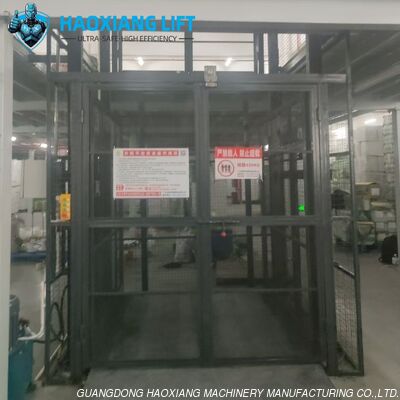

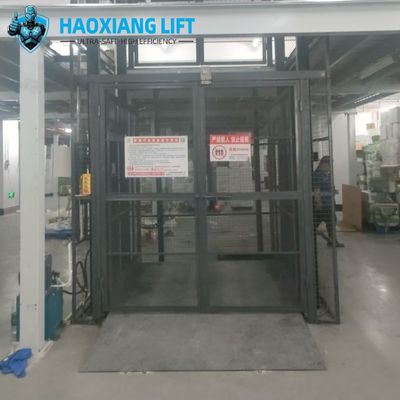

Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport 0 Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport 1 Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport 2
About Our Company
Guangdong Haoxiang Machinery Manufacturing Co., Ltd.
Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility.
Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.
Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide.
We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.
Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport 3 Customized 500kg-20000kg Hydraulic Elevator Large Capacity 6M High Four-fold Door For Freight Transport 4
