Hydraulic Dock Ramp Blue - Customizable Height 8T-20T - High-Strength No Pit Required for Manufacturing

Hydraulic Dock Ramp Blue - Customizable Height 8T-20T - High-Strength No Pit Required for Manufacturing
Hydraulic Dock Ramp Blue - Customizable Height 8T-20T - High-Strength No Pit Required for Manufacturing Hydraulic Dock Ramp Blue - Customizable Height 8T-20T - High-Strength No Pit Required for Manufacturing

Large Image :  Hydraulic Dock Ramp Blue - Customizable Height 8T-20T - High-Strength No Pit Required for Manufacturing

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: HAOXIANG BRAND
Certification: CE/ISO
Model Number: HX-GTY 6×8
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 1500-2000 /UNIT
Packaging Details: Naked packaging
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 5000 UNITS PER YEAR
Contact Now

Hydraulic Dock Ramp Blue - Customizable Height 8T-20T - High-Strength No Pit Required for Manufacturing

Description
Load: 6-20 Tons Application: Loading And Unloading Goods Between Trucks And Warehouse
Operation Method: Hydraulic Country Of Origin: China
Articulated: Open / Close Working Lift: More Than 60000times
Highlight:

Hydraulic dock ramp with customizable height

,

High-strength fixed dock leveler

,

No pit hydraulic dock ramp

Hydraulic Dock Ramp Blue - Customizable Height 8T-20T - High-Strength No Pit Required for Manufacturing
Product Overview

The hydraulic dock leveler is the most widely used dock leveler type today. It operates with a hydraulic power system where the main oil cylinder lifts the platform deck, and the auxiliary cylinder extends the lip plate. This ensures smooth connection when there is a height gap between the dock and the truck.

Key Benefits
  • Smooth Loading & Unloading: Creates a seamless connection between the dock and truck, laying the foundation for efficient cargo transfer.
  • Seamless Cargo Transfer: Acts as a gap-free bridge between dock and truck, reducing transfer time.
  • Hydraulic Efficiency: Features a dependable hydraulic system for fast, effortless operation.
  • Efficient Performance: Streamlines loading and unloading workflows with quick operation.
Technical Specifications

Specifications, sizes and colors can be customized according to customer requirements.

Model Equipment Specifications (mm) Load Capacity (t) Pit Size (mm) Adjustment Range (mm)
HX-GTY6×6 1830(W)×1830(L)×495(H) 6-20T 1870(W)×1830(L)×500(H) +400/-300
HX-GTY6.5×6 1980(W)×1830(L)×495(H) 6-20T 2020(W)×1830(L)×500(H) +400/-300
HX-GTY7×6 2130(W)×1830(L)×495(H) 6-20T 2170(W)×1830(L)×500(H) +400/-300
HX-GTY6×8 1830(W)×2280(L)×495(H) 6-20T 1870(W)×2280(L)×500(H) +400/-300
HX-GTY6.5×8 1980(W)×2280(L)×495(H) 6-20T 2020(W)×2280(L)×500(H) +400/-300
HX-GTY7×8 2130(W)×2280(L)×495(H) 6-20T 2170(W)×2280(L)×500(H) +400/-300
HX-GTY6×10 1830(W)×2850(L)×495(H) 6-20T 1870(W)×2850(L)×500(H) +400/-300
HX-GTY6.5×10 1980(W)×2850(L)×495(H) 6-20T 2020(W)×2850(L)×500(H) +400/-300

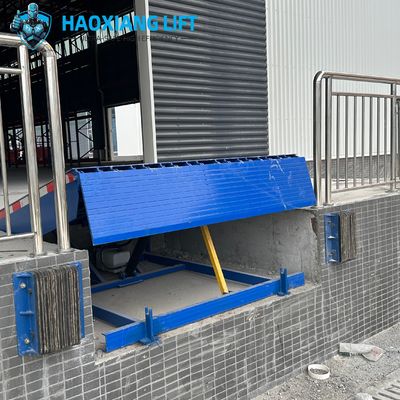

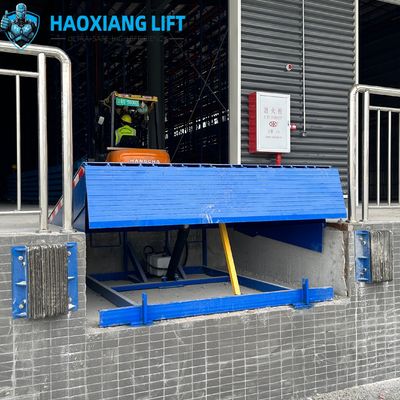

Product Images
Hydraulic Dock Ramp Blue - Customizable Height 8T-20T - High-Strength No Pit Required for Manufacturing 0 Hydraulic Dock Ramp Blue - Customizable Height 8T-20T - High-Strength No Pit Required for Manufacturing 1 Hydraulic Dock Ramp Blue - Customizable Height 8T-20T - High-Strength No Pit Required for Manufacturing 2
Manufacturer Information

Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment, with:

  • Special equipment license
  • Registered capital of 30 million
  • Annual output value of over 100 million
  • Large production workshop (21,500 square meters)

We serve over 40,000 companies with 45 installation teams, offering:

  • 2-hour door-to-door service in the Pearl River Delta
  • 24-hour door-to-door service nationwide
