제품 상세 정보:
|
짐: | 6-20 톤 | 애플리케이션: | 트럭과 창고 사이에 상품을 적재하고 언로드합니다 |
---|---|---|---|
작동 방법: | 유압 | 원산지 국가: | 중국 |
관절이 이어집니다: | 열 / 닫습니다 | 작업 리프트: | 60000 년 이상 |
강조하다: | Hydraulic dock ramp with customizable height,High-strength fixed dock leveler,No pit hydraulic dock ramp |

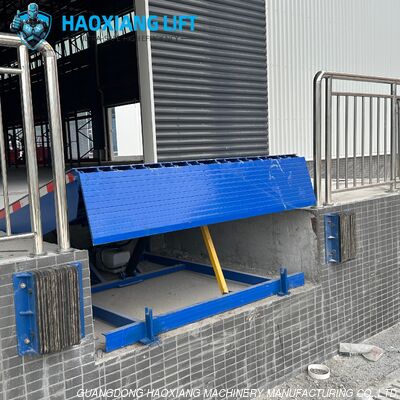

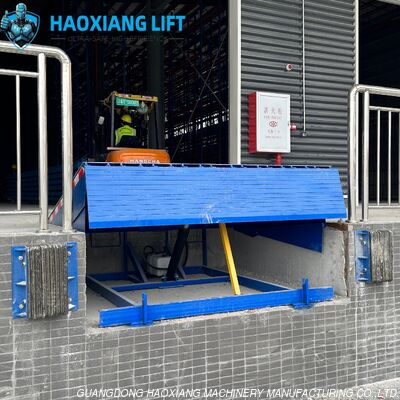

The hydraulic dock leveler is the most widely used dock leveler type today. It operates with a hydraulic power system where the main oil cylinder lifts the platform deck, and the auxiliary cylinder extends the lip plate. This ensures smooth connection when there is a height gap between the dock and the truck.
Specifications, sizes and colors can be customized according to customer requirements.
Model | Equipment Specifications (mm) | Load Capacity (t) | Pit Size (mm) | Adjustment Range (mm) |
---|---|---|---|---|
HX-GTY6×6 | 1830(W)×1830(L)×495(H) | 6-20T | 1870(W)×1830(L)×500(H) | +400/-300 |
HX-GTY6.5×6 | 1980(W)×1830(L)×495(H) | 6-20T | 2020(W)×1830(L)×500(H) | +400/-300 |
HX-GTY7×6 | 2130(W)×1830(L)×495(H) | 6-20T | 2170(W)×1830(L)×500(H) | +400/-300 |
HX-GTY6×8 | 1830(W)×2280(L)×495(H) | 6-20T | 1870(W)×2280(L)×500(H) | +400/-300 |
HX-GTY6.5×8 | 1980(W)×2280(L)×495(H) | 6-20T | 2020(W)×2280(L)×500(H) | +400/-300 |
HX-GTY7×8 | 2130(W)×2280(L)×495(H) | 6-20T | 2170(W)×2280(L)×500(H) | +400/-300 |
HX-GTY6×10 | 1830(W)×2850(L)×495(H) | 6-20T | 1870(W)×2850(L)×500(H) | +400/-300 |
HX-GTY6.5×10 | 1980(W)×2850(L)×495(H) | 6-20T | 2020(W)×2850(L)×500(H) | +400/-300 |
