Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler

Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler
Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler

Large Image :  Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: HAOXIANG BRAND
Certification: CE/ISO
Model Number: HX-GTY 6×8
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 1500-2000 /UNIT
Packaging Details: nakes
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 5000 UNITS PER YEAR

Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler

Description
Product Name: Hydraulic Dock Leveler Country Of Origin: Made In China
Motor Power: 3KW Lifting Speed: Up: 12s/400mm; Down: 8s/400mm
Power Supply: 220v/380v Working Lift: More Than 20000times
Certification: CE/ISO Articulated: Open / Close
Application: Warehouse, Factory, Distribution Center Warranty: 12 Months
Highlight:

Hydraulic Dock Leveler 10 Ton

,

Unloading Platform Hydraulic Dock Leveler

,

Warehouse Hydraulic Dock Leveler

Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler

Product Key Attributes

Parameter/Feature Specification Details
Load Capacity 10T
Platform Size 1830(W)×495(D)×2280(H) mm
Lifting Speed Up: 12s/400mm; Down: 8s/400mm
Motor Power 3kW
Lifting Stroke +400mm/-300mm


What is the Hydraulic Dock Leveler?
This 10-ton hydraulic electric dock leveler is designed to streamline warehouse operations, ensuring smoot transitions between loading docks and trucks of varying heights. Built with high-strength steel and a robust hydraulic system, it effortlessly adjusts to height differences, eliminating manual lifting and reducing worker fatigue.
What are the Benefits of the Hydraulic Dock Leveler?
Powerful Performance
The electro-hydraulic operation provides reliable lifting and lowering with just a push-button or remote control, making it ideal for high-traffic warehouses.

Space-Saving Edge Design
Mounts directly to the dock edge, maximizing floor space while securely bridging gaps between the dock and trucks.

Built to Last
Heavy-duty construction withstands daily industrial use, with anti-slip surfaces and safety features like overload protection for secure cargo handling.

Adaptable & Customizable
Works with various truck sizes and can be tailored with options like extended lips, side barriers, or automation for enhanced efficiency.

Where It Excels
Perfect for logistics centers, manufacturing plants, and cold storage facilities, this dock leveler speeds up loading/unloading while improving safety. Its low-maintenance hydraulic system ensures long-term reliability, reducing downtime.


Easy Integration & Support
Quick to install and backed by responsive technical support, this leveler is a smart investment for businesses looking to boost productivity and minimize loading delays.

Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model Equipment specifications (mm) Load Capacity (t) Pit size (mm) Adjustment range (mm)
HX-GTY6×6 1830(W)×1830(L)×495(H) 6-20T 1870(W)×1830(L)×500(H) +400/-300
HX-GTY6.5×6 1980(W)×1830(L)×495(H) 6-20T 2020(W)×1830(L)×500(H) +400/-300
HX-GTY7×6 2130(W)×1830(L)×495(H) 6-20T 2170(W)×1830(L)×500(H) +400/-300
HX-GTY6×8 1830(W)×2280(L)×495(H) 6-20T 1870(W)×2280(L)×500(H) +400/-300
HX-GTY6.5×8 1980(W)×2280(L)×495(H) 6-20T 2020(W)×2280(L)×500(H) +400/-300
HX-GTY7×8 2130(W)×2280(L)×495(H) 6-20T 2170(W)×2280(L)×500(H) +400/-300
HX-GTY6×10 1830(W)×2850(L)×495(H) 6-20T 1870(W)×2850(L)×500(H) +400/-300
HX-GTY6.5×10 1980(W)×2850(L)×495(H) 6-20T 2020(W)×2850(L)×500(H) +400/-300

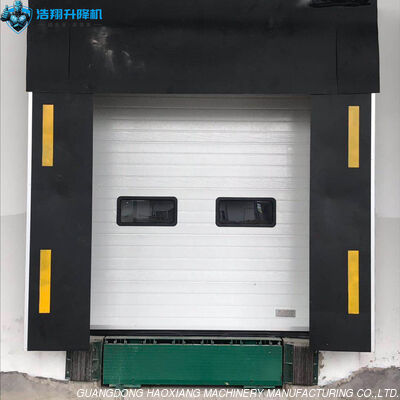

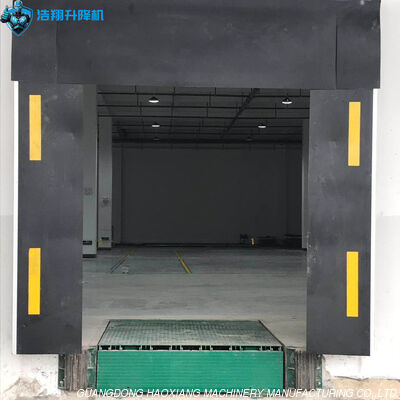

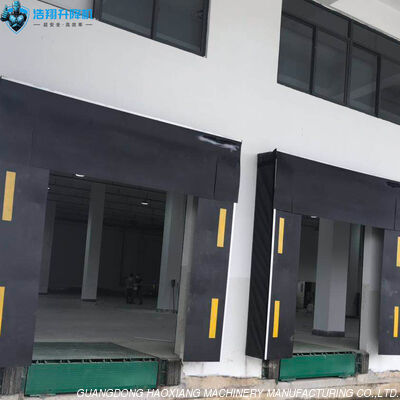

What does the Hydraulic Dock Leveler look like?
Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler 0
Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler 1
Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler 2
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.



Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler 3

Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler 4
