Подробная информация о продукте:
|
Название продукта: | Гидравлический нивелир доков | Страна происхождения: | Сделано в Китае |
---|---|---|---|
Мощность двигателя: | 3 кВт | Скорость подъема: | Вверх: 12 см / 400 мм; Вниз: 8 см / 400 мм |
Электрическое питание: | 220V/380V | Рабочий лифт: | более 20000 раз |
Сертификация: | CE/ISO | Отчетливо произношенный: | Открыть / Закрыть |
Применение: | Хранилище, фабрика, центр распределения | Гарантия: | 12 месяцев |
Выделить: | Hydraulic Dock Leveler 10 Ton,Unloading Platform Hydraulic Dock Leveler,Warehouse Hydraulic Dock Leveler |
Warehouse Loading And Unloading Platform 10 Ton Hydraulic Dock Leveler
Product Key Attributes
Parameter/Feature | Specification Details |
Load Capacity | 10T |
Platform Size | 1830(W)×495(D)×2280(H) mm |
Lifting Speed | Up: 12s/400mm; Down: 8s/400mm |
Motor Power | 3kW |
Lifting Stroke | +400mm/-300mm |
What is the Hydraulic Dock Leveler?
This 10-ton hydraulic electric dock leveler is designed to streamline warehouse operations, ensuring smoot transitions between loading docks and trucks of varying heights. Built with high-strength steel and a robust hydraulic system, it effortlessly adjusts to height differences, eliminating manual lifting and reducing worker fatigue.
What are the Benefits of the Hydraulic Dock Leveler?
Powerful Performance
The electro-hydraulic operation provides reliable lifting and lowering with just a push-button or remote control, making it ideal for high-traffic warehouses.
Space-Saving Edge Design
Mounts directly to the dock edge, maximizing floor space while securely bridging gaps between the dock and trucks.
Built to Last
Heavy-duty construction withstands daily industrial use, with anti-slip surfaces and safety features like overload protection for secure cargo handling.
Adaptable & Customizable
Works with various truck sizes and can be tailored with options like extended lips, side barriers, or automation for enhanced efficiency.
Where It Excels
Perfect for logistics centers, manufacturing plants, and cold storage facilities, this dock leveler speeds up loading/unloading while improving safety. Its low-maintenance hydraulic system ensures long-term reliability, reducing downtime.
Easy Integration & Support
Quick to install and backed by responsive technical support, this leveler is a smart investment for businesses looking to boost productivity and minimize loading delays.
Products model and parameter series of the Hydraulic Dock Leveler.
Technical Parameter | ||||
Specifications, sizes and colors can be customized according to customer requirements | ||||
Model | Equipment specifications (mm) | Load Capacity (t) | Pit size (mm) | Adjustment range (mm) |
HX-GTY6×6 | 1830(W)×1830(L)×495(H) | 6-20T | 1870(W)×1830(L)×500(H) | +400/-300 |
HX-GTY6.5×6 | 1980(W)×1830(L)×495(H) | 6-20T | 2020(W)×1830(L)×500(H) | +400/-300 |
HX-GTY7×6 | 2130(W)×1830(L)×495(H) | 6-20T | 2170(W)×1830(L)×500(H) | +400/-300 |
HX-GTY6×8 | 1830(W)×2280(L)×495(H) | 6-20T | 1870(W)×2280(L)×500(H) | +400/-300 |
HX-GTY6.5×8 | 1980(W)×2280(L)×495(H) | 6-20T | 2020(W)×2280(L)×500(H) | +400/-300 |
HX-GTY7×8 | 2130(W)×2280(L)×495(H) | 6-20T | 2170(W)×2280(L)×500(H) | +400/-300 |
HX-GTY6×10 | 1830(W)×2850(L)×495(H) | 6-20T | 1870(W)×2850(L)×500(H) | +400/-300 |
HX-GTY6.5×10 | 1980(W)×2850(L)×495(H) | 6-20T | 2020(W)×2850(L)×500(H) | +400/-300 |

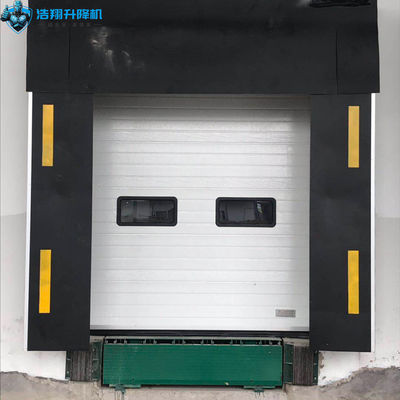

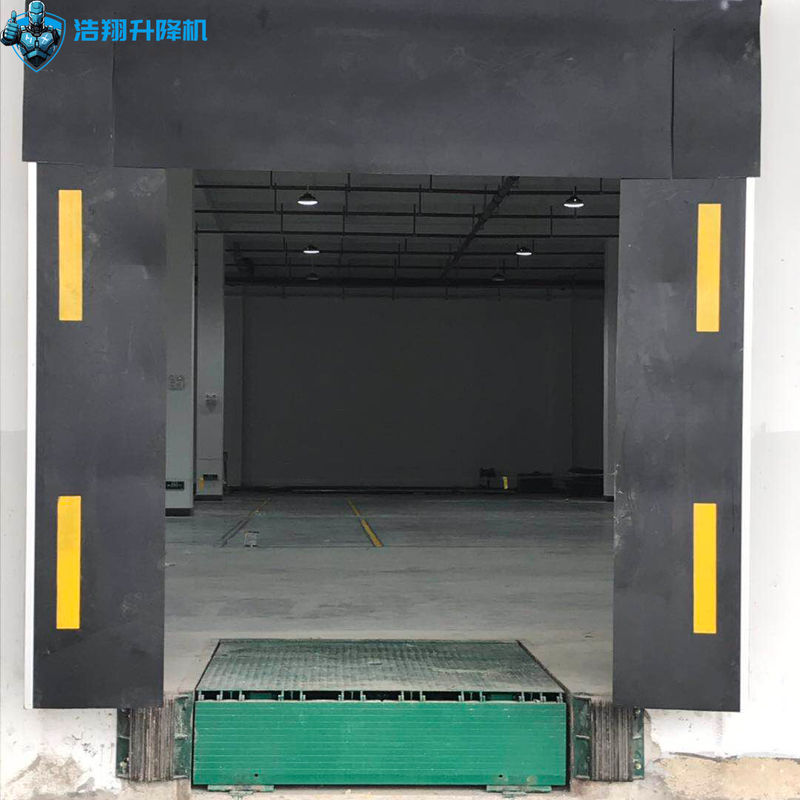

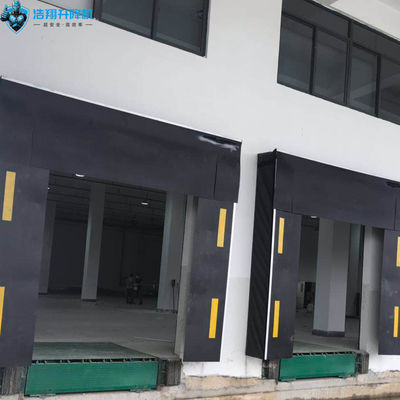

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
