High-Capacity 5T-20T Hydraulic Lift Platform - Steel Structure Adjustable Height & Slip-Resistant for Efficient Cargo Handling

Name: High-Capacity 5T-20T Hydraulic Lift Platform - Steel Structure Adjustable Height & Slip-Resistant for Efficient Cargo Handling
Brand: Guangdong Haoxiang Machinery Manufacturing Co., Ltd.
SKU: HX-GTY 6×5
Price: 1,750.00 USD
Availability: InStock

Brand Name:	HAOXIANG BRAND
Model Number:	HX-GTY 6×5
MOQ:	1 unit
Price:	USD 1500-2000 /UNIT
Payment Terms:	T/T
Supply Ability:	5000 UNITS PER YEAR

Detail Information

Product Description

Detail Information

Place of Origin:

GUANGDONG,CHINA

Certification:

CE/ISO

Voltage:

220/380V 50/60hz

Motor Power:

0.75kw

Table Size:

L2000mm/2500mm*W2000mm

Height:

495mm

Availability:

In Stock

Operation Method:

Hydraulic

Packaging Details:

Naked packaging

Highlight:

5T-20T hydraulic lift platform

steel structure loading dock leveler

slip-resistant cargo handling platform

Product Description

High-Capacity 5T-20T Hydraulic Lift Platform

As a core link for seamless and secure cargo transfer, hydraulic dock levelers are built around robust, precision-calibrated hydraulic mechanisms. A main hydraulic cylinder elevates the platform, while a secondary cylinder adjusts the lip plate with exceptional precision, creating a tight, gapless fit against truck beds. Anchored by a heavy-duty Q355 high-tensile steel frame—reinforced with integral welding at stress points—this stationary equipment flexibly adapts to varying vehicle heights and logistics demands. It eliminates the inefficiencies of conventional loading methods and integrates flawlessly with most trucks and shipping containers.

Key Benefits

Human-Centered Electro-Hydraulic System: User-friendly electro-hydraulic control simplifies operational steps, reducing manual effort significantly while boosting loading/unloading efficiency and trimming operational costs.
Deformation-Resistant Steel Structure: Frame adopts thick-walled manganese steel square tubes with hot-rolled forming technology, delivering outstanding load-bearing capacity and structural rigidity that maintains shape even under long-term heavy-load operations.
Enhanced Maintenance Safety Guard: Rugged safety bracket provides reliable protection for maintenance staff during internal checks or repairs, effectively reducing on-site safety hazards.
Oil-Tight Hydraulic Assembly: Fully sealed, integrated hydraulic unit features precision-machined connectors, preventing oil leakage and ensuring consistent performance in harsh working conditions.

Technical Specifications

Specifications, sizes and colors can be customized according to customer requirements

Model	Equipment Specifications (mm)	Load Capacity (t)	Pit Size (mm)	Adjustment Range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

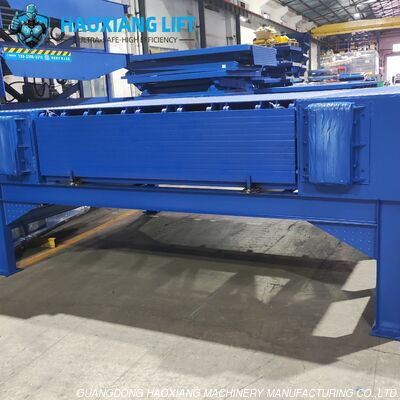

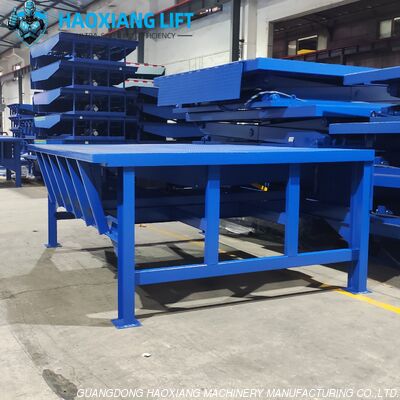

Product Images

About Our Company

Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment, a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, with a large production workshop and plant area of 21,500 square meters.

We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, positioning "super safe and efficient lifts". The product design is novel and the operation is stable, used in many fields such as logistics. With advanced equipment and fine management, we are a benchmark in the industry for warehousing management.

We have served more than 40,000 companies and maintain 45 installation teams that provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, ensuring worry-free use of our products.
