Industrial-Grade Hydraulic Fixed Elevator - High-Strength Steel for 5T-18T Heavy Logistics Cargo Lifting

Name: Industrial-Grade Hydraulic Fixed Elevator - High-Strength Steel for 5T-18T Heavy Logistics Cargo Lifting
Brand: Guangdong Haoxiang Machinery Manufacturing Co., Ltd.
SKU: HX-GTY 6×5
Price: 1,750.00 USD
Availability: InStock

Brand Name:	HAOXIANG BRAND
Model Number:	HX-GTY 6×5
MOQ:	1 unit
Price:	USD 1500-2000 /UNIT
Payment Terms:	T/T
Supply Ability:	5000 UNITS PER YEAR

Detail Information

Product Description

Detail Information

Place of Origin:

GUANGDONG,CHINA

Certification:

CE/ISO

Adjustment Range:

+400mm/-300mm

Lead Time:

15 Work Days

Controls:

Push Button

Power Source:

Electric, Hydraulic

Capacity:

10tons

Dock Leveler Voltage:

220/380V

Packaging Details:

Naked packaging

Highlight:

Industrial hydraulic fixed elevator

Heavy-duty cargo lifting elevator

High-strength steel dock leveler

Product Description

Industrial-Grade Hydraulic Fixed Elevator - High-Strength Steel for 5T-18T Heavy Logistics Cargo Lifting

Product Overview

Serving as a critical link for seamless, secure cargo transit, hydraulic dock levelers leverage precision-crafted hydraulic systems: a primary hydraulic cylinder raises the platform, while a secondary cylinder adjusts the lip plate with pinpoint precision to create a tight, gapless seal with truck bed surfaces. This fixed structure adapts flexibly to varying vehicle heights and logistics demands, eliminating the bottlenecks of traditional load-handling methods and integrating effortlessly with almost all trucks and shipping containers.

Key Benefits

User-Centric Electro-Hydraulic Control System: The user-friendly electro-hydraulic configuration simplifies operational processes, boosting loading and unloading efficiency by reducing manual labor and cutting operational costs to a significant extent.
Warp-Resistant High-Strength Steel Frame: Constructed with manganese steel square tubing, the frame delivers exceptional load capacity and structural rigidity, resisting deformation even after extended heavy-duty use.
Enhanced Maintenance Safety Bracket: A robust safety bracket protects maintenance staff during internal inspections or repairs, reducing the risk of on-site safety hazards.
Leak-Proof Hydraulic Unit: The fully sealed, integrated hydraulic assembly features precision-machined connectors to prevent oil seepage, ensuring reliable long-term performance in harsh working conditions.

Technical Specifications

Specifications, sizes and colors can be customized according to customer requirements

Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

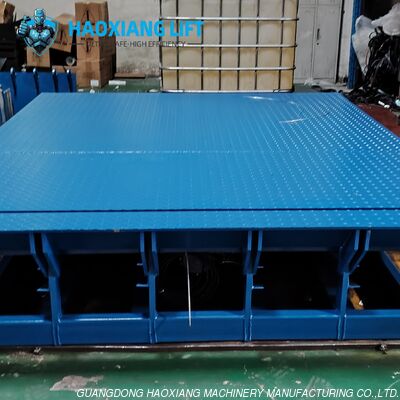

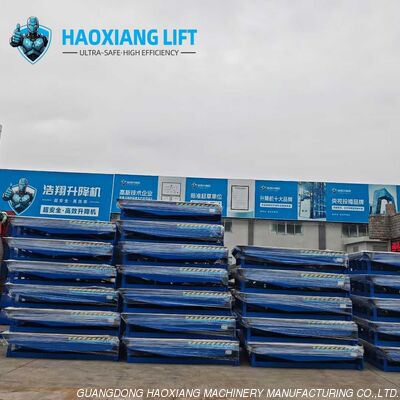

Product Images

About Our Company

Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment, a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters.

We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts". The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management.

We have served more than 40,000 companies and 45 installation teams, which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
