Heavy-Duty 5T-18T Hydraulic Lift Platform - Adjustable Height & Slip-Resistant for Cargo Transfer

Name: Heavy-Duty 5T-18T Hydraulic Lift Platform - Adjustable Height & Slip-Resistant for Cargo Transfer
Brand: Guangdong Haoxiang Machinery Manufacturing Co., Ltd.
SKU: HX-GTY 6×5
Price: 1,750.00 USD
Availability: InStock

Brand Name:	HAOXIANG BRAND
Model Number:	HX-GTY 6×5
MOQ:	1 unit
Price:	USD 1500-2000 /UNIT
Payment Terms:	T/T
Supply Ability:	5000 UNITS PER YEAR

Detail Information

Product Description

Detail Information

Place of Origin:

GUANGDONG,CHINA

Certification:

CE/ISO

Power Source:

Electric，Hydraulic

Loading Capacity:

6000kg

Deck Plate:

Diamond Tread Plate

Deck Plate Material:

Steel

Productname:

Loading Dock Leveler

Lip Board Thickness:

15mm Anti-slip Grooved Plate

Packaging Details:

Naked packaging

Highlight:

Heavy-Duty Hydraulic Lift Platform

Adjustable Height Loading Dock Leveler

Slip-Resistant Cargo Transfer Platform

Product Description

Heavy-Duty 5T-18T Hydraulic Lift Platform - Adjustable Height & Slip-Resistant for Cargo Transfer

Product Overview

Hydraulic dock levelers act as a critical connection for smooth, secure cargo transfer, utilizing precision hydraulic systems: a primary cylinder elevates the platform, while a secondary cylinder adjusts the lip plate with pinpoint accuracy to create a tight, gap-free fit with truck beds. This stationary design flexibly accommodates varying vehicle heights and logistics demands, eliminating the inefficiencies of traditional load-handling solutions and integrating seamlessly with most trucks and shipping containers.

Key Benefits

User-Centric Electro-Hydraulic Control: The intuitive electro-hydraulic system streamlines workflows, boosting loading/unloading efficiency by reducing manual labor and cutting operational costs significantly.
Warp-Proof High-Tensile Steel Frame: Fabricated with manganese steel square tubes, the frame offers exceptional load-bearing capacity and structural stability, resisting deformation even under continuous heavy-duty use.
Enhanced Maintenance Safety Brace: A rugged safety brace safeguards maintenance personnel during internal checks or repairs, minimizing potential on-site hazards.
Leak-Proof Hydraulic Assembly: The sealed, integrated hydraulic unit features precision fittings to prevent oil leakage, ensuring reliable long-term performance in demanding environments.

Technical Specifications

Specifications, sizes and colors can be customized according to customer requirements

Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

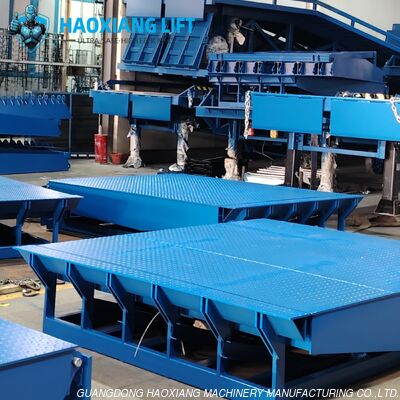

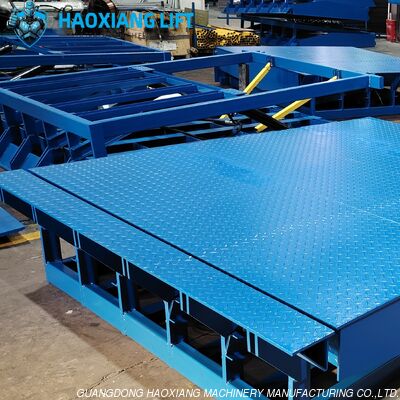

Product Images

About Our Company

Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment, a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters.

We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts". The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management.

We have served more than 40,000 companies and 45 installation teams, which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
