Industrial-Grade Hydraulic Fixed Elevator - High-Strength Steel for Heavy Logistics Cargo Lifting

Large Image : Industrial-Grade Hydraulic Fixed Elevator - High-Strength Steel for Heavy Logistics Cargo Lifting

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	HX-GTY 6×5

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 1500-2000 /UNIT
Packaging Details:	Naked packaging
Delivery Time:	10-15 working days
Payment Terms:	T/T
Supply Ability:	5000 UNITS PER YEAR

Contact Now

Industrial-Grade Hydraulic Fixed Elevator - High-Strength Steel for Heavy Logistics Cargo Lifting

Description

Lift Mechanism:	Hydraulic	Safety Features:	Anti-collision Rubber / Safety Legs / Bumpers
Lip Board Thickness:	15mm Anti-slip Grooved Plate	Keywords:	Hydraulic Dock Leveler/Dock Leveller
Load:	6000-10000kg	Platform Size:	Customizable
Highlight:	Industrial hydraulic fixed elevator , Heavy logistics cargo lifting elevator , High-strength steel dock leveler

Industrial-Grade Hydraulic Fixed Elevator - High-Strength Steel for Heavy Logistics Cargo Lifting

What is the Hydraulic Dock Leveler?

Hydraulic dock levelers serve as the vital link for seamless cargo movement, leveraging precision hydraulic mechanisms: a main cylinder raises the platform, while a secondary cylinder fine-tunes the lip plate to form a tight, gap-free seal with truck beds. This fixed model adapts flexibly to varying heights and transport needs, resolving the load-handling inefficiencies of traditional designs and integrating seamlessly with most trucks and shipping containers.

What are the Benefits of the Hydraulic Dock Leveler?

Intuitive Electro-Hydraulic Control: The user-friendly electro-hydraulic system optimizes workflows, boosting loading efficiency while reducing labor time and operational costs.
Deformation-Resistant High-Tensile Steel Frame: Constructed with manganese steel square tubes, the frame delivers exceptional load capacity and structural stability, resisting warping under heavy-duty operations.
Robust Maintenance Safety Brace: A durable safety brace protects maintenance staff during internal inspections or repairs, minimizing on-site safety hazards.
Oil-Tight Hydraulic Assembly: The sealed, integrated hydraulic unit features tight fittings to prevent leakage, ensuring consistent long-term performance.

Products Model and Parameter Series of the Hydraulic Dock Leveler

Specifications, sizes and colors can be customized according to customer requirements

Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

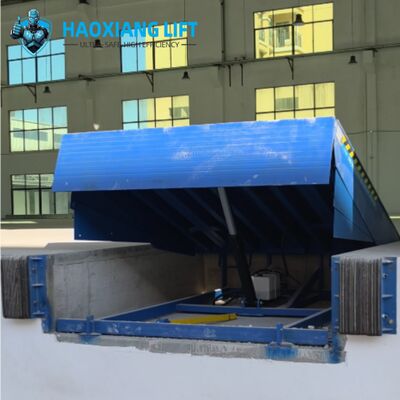

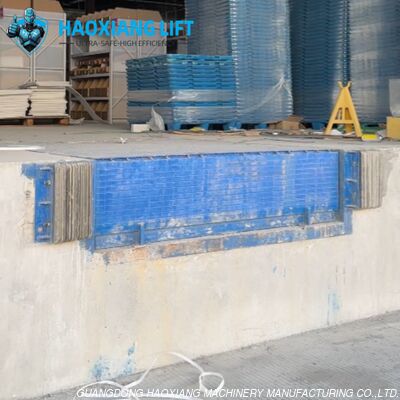

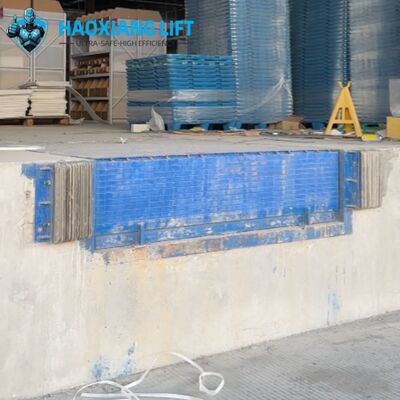

What does the Hydraulic Dock Leveler look like?

About Our Company

Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment, a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters.

We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts". The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management.

We have served more than 40,000 companies and 45 installation teams, which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
