Mechanical Container Dock Leveler 15mm Steel Plate Platform Lifter For Forklift Truck Suitable
Product Description
Mechanical Container Dock Leveler 15mm Steel Plate Platform Lifter For Forklift Truck Suitable
What is the Hydraulic Dock Leveler?
The fixed hydraulic dock leveler operates with hydraulic mechanisms: a main cylinder is used to raise the platform, and a smaller cylinder drives the lip plate. When the lip plate lies naturally on the truck bed, it creates a smooth link between the dock and the vehicle, streamlining the entire loading process. Additionally, its scalable structure allows adaptation to diverse height requirements and transport scenarios, enabling it to work with multiple truck and container types and resolve the uneven handling problems common in traditional levelers.
What are the Benefits of the Hydraulic Dock Leveler?
- Safety protection component: A safety brace safeguards technicians who perform inspection or maintenance work inside the dock bridge.
- Sturdy steel framework: Constructed with high-tensile manganese steel rectangular tubes, it offers exceptional pressure resistance and resists warping.
- Anti-slip working platform: The textured steel deck stops slipping when the platform is being raised or lowered.
- High-performance hydraulic system: Fitted with premium hydraulic cylinders and a dependable power unit, it provides strong driving force and superior sealing.
- Leak-proof hydraulic unit: With tight sealing, a solid structure, and an integrated design, it keeps oil leakage at bay.
- Simple operation mode: Electro-hydraulic control ensures effortless operation, boosting loading efficiency and reducing time and labor costs.
- Lip plate angle optimization: A 5-degree incline helps achieve a snugger fit with the truck bed.
- Long-shaft linkage design: The lip plate is connected via a long-shaft joint, which increases strength and reliability.
- Rear U-shaped structure: It enables a smoother and more convenient connection between the dock and the vehicle.
Products Model and Parameter Series of the Hydraulic Dock Leveler
Specifications, sizes and colors can be customized according to customer requirements
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

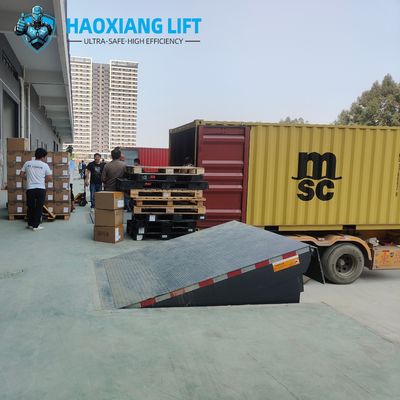

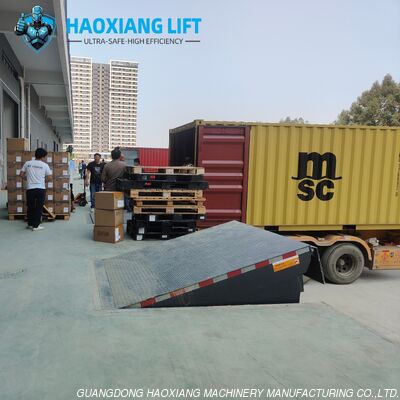

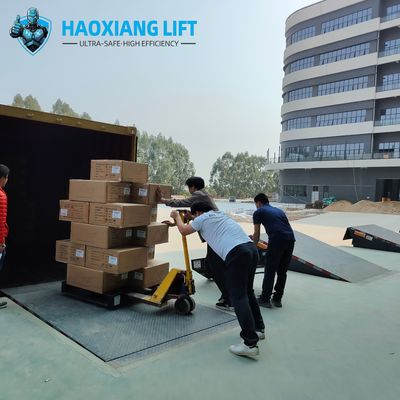

What does the Hydraulic Dock Leveler look like?
About Our Company
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment, a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters.
We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts". The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management.
We have served more than 40,000 companies and 45 installation teams, which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
