Sturdy Structure Fixed Scissor Lift - 20 Ton Stationary Cargo Lift - Custom Large Platform for Warehouse

Name: Sturdy Structure Fixed Scissor Lift - 20 Ton Stationary Cargo Lift - Custom Large Platform for Warehouse
Brand: Guangdong Haoxiang Machinery Manufacturing Co., Ltd.
SKU: SJG3-4
Price: 1,750.00 USD
Availability: InStock

All Products

Hydraulic Cargo Lift
(36)

Industrial Hydraulic Lift
(39)

Freight Platform Lift
(33)

Industrial Goods Lift
(32)

Hydraulic Leveler
(18)

Mobile Loading Dock
(50)

Portable Forklift Ramp
(47)

Loading Dock Leveler
(19)

Fixed Dock Leveler
(17)

Fixed Scissor Lift Platform
(24)

Hydraulic Scissor Lift Table
(24)

Certification

Customer Reviews

great deal,the seller is very helpful.

—— Kevin

My clients are very satified with the products,the quality is very good.

—— Amy

I'm Online Chat Now

Sturdy Structure Fixed Scissor Lift - 20 Ton Stationary Cargo Lift - Custom Large Platform for Warehouse

Large Image : Sturdy Structure Fixed Scissor Lift - 20 Ton Stationary Cargo Lift - Custom Large Platform for Warehouse

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	SJG3-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 1500-2000 /UNIT
Packaging Details:	Naked packaging
Delivery Time:	7-15 working days
Payment Terms:	T/T
Supply Ability:	5000 UNITS PER YEAR

Contact Now

Sturdy Structure Fixed Scissor Lift - 20 Ton Stationary Cargo Lift - Custom Large Platform for Warehouse

Description

Product Name:	Fixed Scissor Lifting Platform	Country Of Origin:	Made In China
Lifting Height:	4m/6m/8m/9m/10m/12m/14m/16m/Max 20m	Warranty:	12 Months
Control Mode:	Hydraulic	Voltage:	220v/380v
Highlight:	20 ton stationary scissor lift , custom large platform hydraulic lift , sturdy warehouse scissor lift table

Sturdy Structure Fixed Scissor Lift - 20 Ton Stationary Cargo Lift - Custom Large Platform for Warehouse

Product Key Attributes

Parameter/Feature	Specification Details
Advantage	High Efficiency and More Security
Way of Installation	On Ground Or Underground
Feature	With UP,DOWN And Emergency
Switch	Up/Down Button
Certification	CE/ISO

What is the Fixed Scissor Lift Platform?

Within the field of material handling, hydraulic scissor lift tables stand as vital high-altitude work tools. Their core function allows smooth goods transfer across different elevation levels, and they offer flexible deployment--suitable for both above-ground and in-pit installations.

What are the Benefits of the Fixed Scissor Lift Platform?

Robust Elevation Solution: Adopts a fixed design with a 5-meter platform height, ideal for lifting heavy equipment, moving construction supplies, and positioning personnel in diverse industrial applications. Customizable elevation ranges enable precise adaptation to operational needs for easy access to required working heights.
Precision Hydraulic Control: The stationary lift's hydraulic system ensures smooth, vibration-free operation with millimeter-level accuracy. User-friendly controls guarantee stable positioning throughout the lifting cycle, making it a secure choice for demanding tasks.
Aesthetic Customization: We offer personalized color schemes for the stable scissor platform, considering the importance of visual harmony in workspaces. This allows matching equipment aesthetics to facility design while maintaining peak performance.
Comprehensive Advantages: Combining hydraulic precision, adjustable elevation (5m as standard), and fixed-base stability, the non-movable scissor lift meets heavy-duty requirements across industries. With color customization options, it enhances both functionality and workspace ambiance--upgrade your material handling capabilities today!

Products Model and Parameter Series

Specifications, sizes and colors can be customized according to customer requirements

Model	Rated load (kg)	Lifting stroke (mm)	Maximum height (mm)	Lower height (mm)	Table size (mm)	Lifting time	Motor power (kw)
SJG1-1.7	1000	1700	2150	450	2500×2000	20	3
SJG10-1.7	10000	1700	2500	800	4000×2000	30	11
SJG3-4	3000	3000	3650	650	1500×6000	40	5.5
SJG1-4	1000	4000	4600	600	3100×5000	60	4
SJG2-5	2000	5000	5900	900	7000×3000	60	5.5
SJG3-6	3000	6000	7000	1000	6000×5000	70	7.5
SJG5-1.7	5000	1700	2350	650	6000×2000	40	7.5

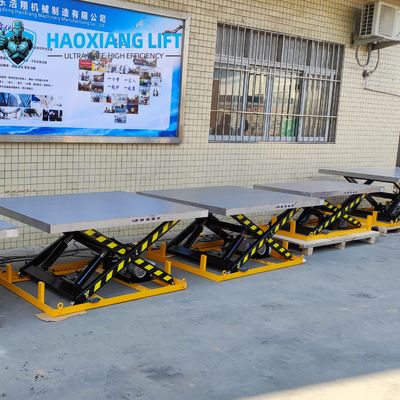

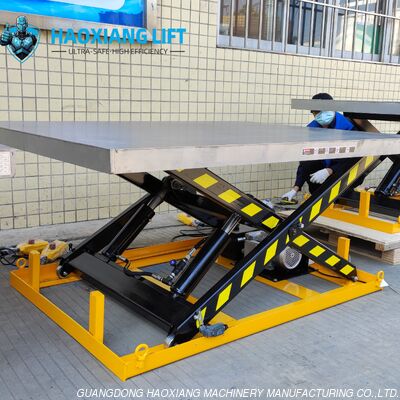

Product Images

About Our Company

Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment, a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters.

We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".

The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams, which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
