Modern Latest Custom-Made Outdoor Manganese Steel Fixed Scissor Lift Platform Design Heavy Duty Applications
Product key attributes
| Parameter/Feature |
Specification Details |
| Model NO. |
SJG3-4 |
| Operate |
Simple and Convenient |
| Advantage |
High Efficiency and More Security |
| Installation Types |
DIY, Easy Installed With Bolts/Complete |
| Showroom Location |
Canada, United States, Italy, Germany |
What is the Fixed Scissor Lift Platform?
Hydraulic scissor lift table is an important component in material handling area, it is one of professional high-altitude operation equipment.Scissor lift table is mainly used to convey goods from one working level to another, and it can be installed on the ground or in the pit.
HAOXIANG can also provide customer many options like wireless controller, footstep control, roller, safety bellows and so on, customer can provide their need to SINOFIRST, and we will try to fulfill all customers' need.
What are the Benefits of the Fixed Scissor Lift Platform?
Removable lifting eye can help to lift the table and install.
Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
Brief structure make it much easier to operate and maintain.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

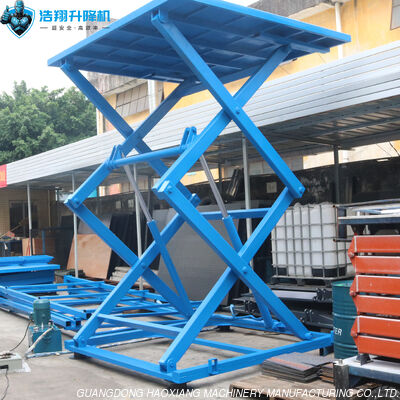

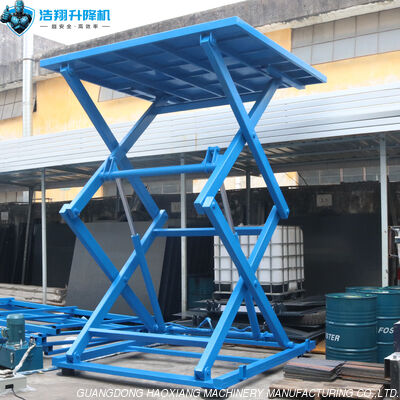

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
