Outdoor CE Approved Cargo Lift Platform Freight Elevator Cage Lift in Warehouse

Large Image : Outdoor CE Approved Cargo Lift Platform Freight Elevator Cage Lift in Warehouse

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	DSL 3-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD2300- USD5000 / UNIT
Packaging Details:	Naked packaging
Delivery Time:	7-15 WORKING DAYS
Payment Terms:	T/T
Supply Ability:	1500 UNITS PER YEAR

Contact Now

Outdoor CE Approved Cargo Lift Platform Freight Elevator Cage Lift in Warehouse

Description

Product Name:	Hydraulic Guide Rail Lift	Installation:	Platform In Pit Or On Ground
Floor Height:	1-7th Floor/Customizable	Table Size:	L2000mm×W2000mm,Customizable
Application:	Warehouse, Factory, Distribution Center	Stroke Height:	8m
Power Supply:	AC 380V/50Hz	Surface Treatment:	Anti-Rust Paint
HS Code:	842890	Lead Time (days):	15-20 Working Days
Highlight:	CE approved cargo lift platform , warehouse freight elevator cage , industrial goods lift with warranty

Outdoor CE Approved Cargo Lift Platform Freight Elevator Cage Lift in Warehouse

Product Specifications

Attribute	Value
Product Name	Hydraulic Guide Rail Lift
Installation	Platform in pit or on ground
Floor Height	1-7th Floor/Customizable
Table Size	L2000mm×W2000mm, Customizable
Application	Warehouse, Factory, Distribution Center
Stroke Height	8m
Power Supply	AC 380V/50Hz
Surface Treatment	Anti-Rust Paint
HS Code	842890
Lead time (days)	15-20 Working days

Key Features

Parameter	Specification
Product Name	Hydraulic Guide Rail Lift
Control Mode	Hydraulic
Safety Features	Emergency Stop, Overload Protection, Safety Brake
Table Size	L2000mm×W2000mm, Customizable
Entrance	Front/Through/90 Degree

Product Overview

Cargo service elevators transport merchandise; our models operate in hotels, distribution centers, auto showrooms, and hypermarkets, shifting loads level-to-level. Core benefit: bespoke configuration--customers choose voltage, deck size, travel height, rated load, entry/exit orientation, and whether to add safety rail doors. Plus, setup requirements are modest and installation is straightforward.

Product Benefits

Heavy-Duty Hydraulic Drive: A muscular hydraulic system ensures silky, dependable elevation of dense cargo with pinpoint control.
Massive Load Accommodation: Designed for high weights, it relocates bulky items with ease, refining material flow.
Indoor-Outdoor Flexibility: Sealed components and rugged framing perform in any climate.
Full-Circle Safety: Emergency halts, gated shields, and overload guards keep people and products safe.
Height-Maximizing Form: A compact vertical module frees floor area while expanding upward storage.
Whisper-Soft Operation: Hydraulic actuation runs quietly, preserving a calm workspace.
User-Centric Interface: Clear controls reduce learning time and boost efficiency.
Scalable Sizes: Customizable dimensions fit unique facility needs.
Enduring Construction: High-grade materials withstand constant use, lowering service calls.
Eco-Conscious Efficiency: Smart hydraulics lower energy bills and carbon output.

Technical Specifications

Model	Rated load (kg)	Lifting stroke (mm)	Lowering height (mm)	Table size (mm)	Lifting time	Motor power (kw)
DSL1-3	1000	3000	100	2000×1800	6m/min	3
DSL1-12	1000	12000	100	2500×2000	6m/min	3
DSL2-4	2000	4000	150	2000×1800	6m/min	4
DSL2-10	2000	10000	200	3000×3500	6m/min	4
DSL3-5	3000	5000	150	3000×1800	6m/min	5.5
DSL3-8	3000	8000	150	2000×1700	6m/min	5.5
DSL4-5	4000	5000	250	3000×4000	6m/min	7.5
DSL4-10	4000	10000	150	5000×3000	6m/min	7.5
DSL5-6	5000	6000	400	5800×3000	6m/min	11
DSL10-15	10000	15000	400	7000×5000	6m/min	18.5
DSL15-9	15000	9000	800	8000×4000	6m/min	30
DSL15-10	15000	10000	800	9000×4500	6m/min	30

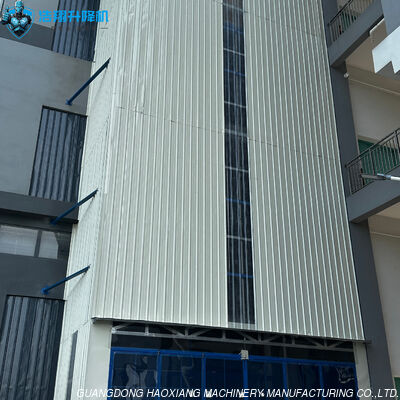

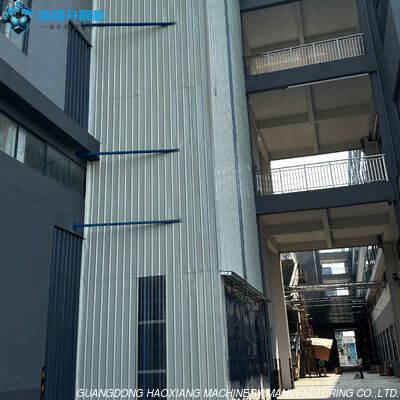

Product Images

About Our Company

Situated in Xiaolan Township, Zhongshan City, Guangdong Haoxiang Machinery Manufacturing Co., Ltd. operates as a certified high-technology manufacturing enterprise specializing in hydraulic logistics solutions. With 30 million RMB registered capital and annual production value exceeding 100 million RMB, our company maintains a 21,500-square-meter modern production facility. Committed to developing ultra-safe, high-efficiency lifting systems, we prioritize creating innovative hydraulic lifting platforms that deliver reliable performance across logistics, warehousing, and industrial applications.

Equipped with advanced manufacturing technologies and rigorous quality control systems, we have established ourselves as an industry benchmark recognized for precision engineering and operational excellence. Our extensive service network includes 45 professional installation teams supporting over 40,000 client enterprises nationwide. We guarantee rapid-response services with 2-hour on-site support available in the Pearl River Delta region and 24-hour emergency response coverage across China, ensuring complete peace of mind for all equipment users.
