Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform
Product key attributes
| Parameter |
Specification |
| Product Name |
Hydraulic dock leveler |
| Country of Origin |
Made in China |
| Adjustment Range |
Up to 400 mm,Down to 300 mm |
| Operation |
Hydraulic, push-button control |
| Application |
Loading and unloading goods between trucks and warehouse |
What is the Hydraulic Dock Leveler?
A dock leveler serves as a critical link bridging the gap between trucks and warehouses, offering automatic height adjustment to seamlessly align with various vehicle types. This functionality not only accelerates the docking process but also significantly boosts loading and unloading efficiency. Constructed from high-strength steel, it boasts exceptional load-bearing capabilities, while its hydraulic or mechanical drive systems ensure operations remain stable and secure. Ideal for logistics hubs, warehouses, and manufacturing facilities, it often works in tandem with door seals and industrial doors, forming a streamlined, high-performance loading zone.
What are the Benefits of the Hydraulic Dock Leveler?
Durable Blue Construction
Constructed from high-strength materials, the Blue Hydraulic Unloading Platform is designed for durability and longevity. Its robust blue finish not only provides a modern aesthetic but also offers protection against corrosion and wear, making it suitable for both indoor and outdoor environments. This durability ensures that the platform can withstand the rigors of daily use in busy loading areas, maintaining its functionality over time. The platform's design is built to endure the weight and movement of heavy loads, making it a reliable choice for warehouses, distribution centers, and manufacturing facilities.
Advanced Hydraulic System
The platform features an advanced hydraulic system that ensures smooth and efficient operation. This system allows for easy adjustments in height, accommodating various truck sizes and ensuring a perfect fit every time. The hydraulic mechanism is designed for reliability, providing consistent performance even under heavy loads. Operators can quickly raise or lower the platform with minimal effort, reducing strain and enhancing safety during unloading operations. This advanced hydraulic technology not only improves operational efficiency but also contributes to a safer working environment, minimizing the risk of injuries associated with manual adjustments.
Safety and Stability Features
Safety is paramount with the 220V Dock Leveler Hydraulic Unloading Platform. The platform is equipped with several safety features, including non-slip surfaces, safety barriers, and hydraulic safety locks that prevent unintended movement during operation. These features help to secure both the platform and the cargo, reducing the risk of accidents. The non-slip surface provides excellent traction for forklifts and personnel, ensuring stability during loading and unloading tasks. Additionally, clear safety markings are included to guide operators and enhance visibility, creating a safer working environment in busy logistics operations.
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

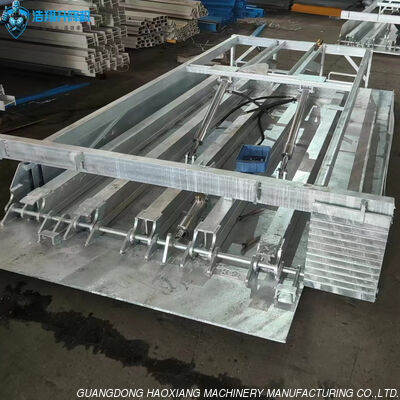

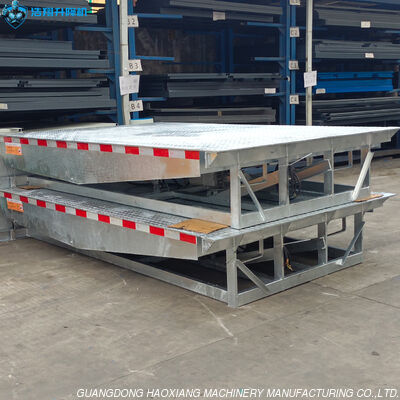

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
