Fixed Electric Hydraulic Lifting Table/Stationary Scissor Car Lift Platform for Indoor Outdoor
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Fixed Scissor Lifting Platform |
Table Size
|
L1920*W1300mm or Customized |
| Color |
Customers' Requirements |
| Feature |
Explosion-Proof, Insulating, Manganese Steel |
| Switch |
Up/Down Button |
What is the Fixed Scissor Lift Platform?
Fixed scissor lift tables are mainly suitable for work in warehouses, docks and other places.
Scissor equipment is equipped with a safety valve to prevent overload, compensating flow valve control to reduce speed.
Machinery lifts is also designed with functions such as anti-clamping function, self-lubricating bearing and safety pad to ensure the safety of work.
Don't hesitate to send us an inquiry if you have the products you need.
What are the Benefits of the Fixed Scissor Lift Platform?
Corrosion-protected through shot blasting and stoving varnish processes.
Premium hydraulic pumps enable smooth, vibration-free lifting and lowering.
Anti-pinch scissor mechanism with self-lubricating main rollers reduces maintenance.
Removable lifting eyes for secure transportation and installation.
Fail-safe cylinders with drainage systems and check valves prevent uncontrolled descent.
Pressure relief valves for overload protection; flow control for adjustable speed.
Simplified mechanical architecture ensures ease of use and low maintenance requirements..
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

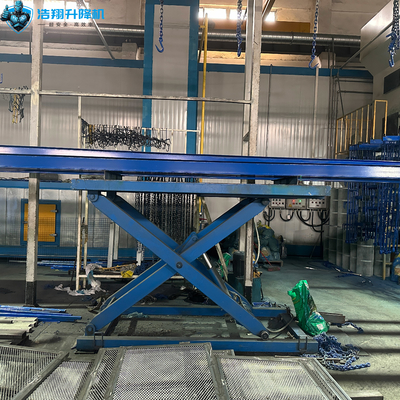

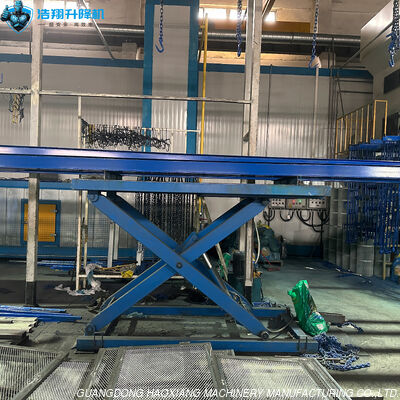

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
