Hot Selling 1-ton 2-ton 3-ton Hydraulic Electric Fixed Scissor Lift New Condition Steel Worktable Lift for Hotels 380V Voltage
Product key attributes
| Parameter/Feature |
Specification Details |
| Lift Drive / Actuation |
Hydraulic |
| Overall Dimensions |
On-demand customization |
| Application |
Building Material Shops, Machinery Repair |
| Lifting Height |
1-20m/As per users' need |
| Certification |
CE/ISO |
| Table Size |
L1920*W1300mm or Customized |
| Usage |
Cargo Lift Used |
| Lifting Height |
4m/6m/8m/9m/10m/12m/14m/16m/Max 20m |
What is the Fixed Scissor Lift Platform?
Engineered for industrial precision and longevity with anti-corrosion treatments, this fixed scissor lift platform handles 0.1-10 metric ton loads. Customers select either steel skeletal construction or high-strength steel plating. The combination of a monocoque platform and parallelogram scissor design delivers superior rigidity. Safety systems include 360° obstacle detection, dual-channel emergency stops, articulating support legs, motor-driven barriers, and modular handrails. Suitable for applications ranging from shipbuilding to pharmaceuticals, it accepts complete equipment modifications as required.
What are the Benefits of the Fixed Scissor Lift Platform?
Optimized Hydraulic Flow
Continuous speed regulation through adaptive load sensing maximizes powertrain efficiency.
Emergency Lowering Assurance
Precision-engineered cylinders activate in emergencies to ensure a gradual, controlled descent.
Automatic Terrain Stability
Dynamic leveling control, driven by machine self-awareness, maintains platform stability on potholes or slopes.
Simplified Precision Control
CANbus fieldbus architecture reduces wiring complexity while enabling proportional, synchronized actuator operation.
Efficient Battery Protection
Safe and efficient recharging cycles are achieved through multi-parameter regulation of current, voltage, and temperature.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

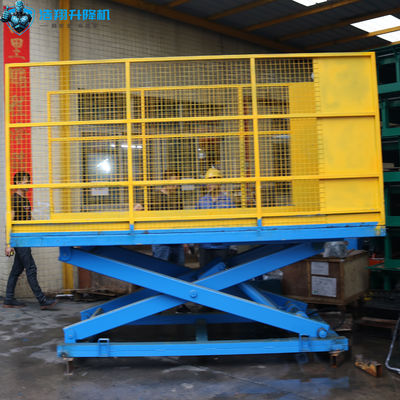

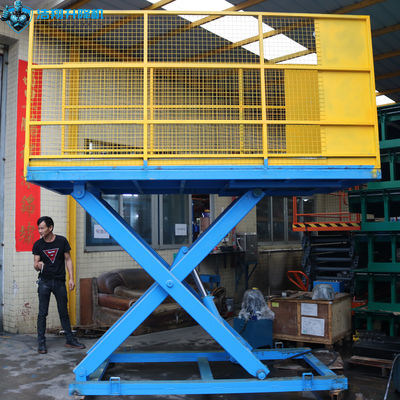

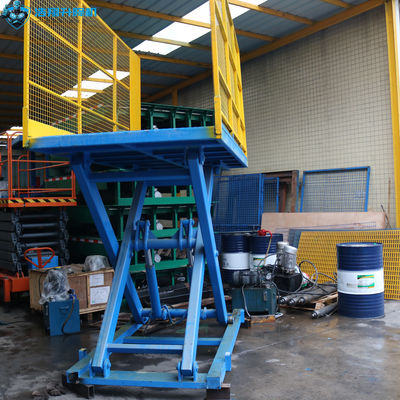

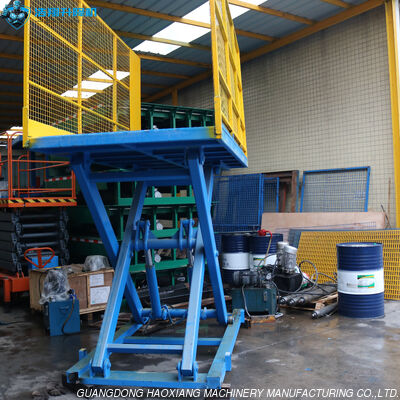

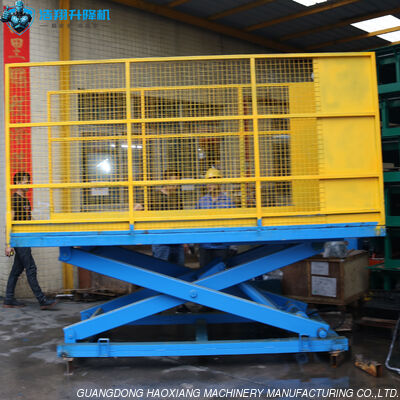

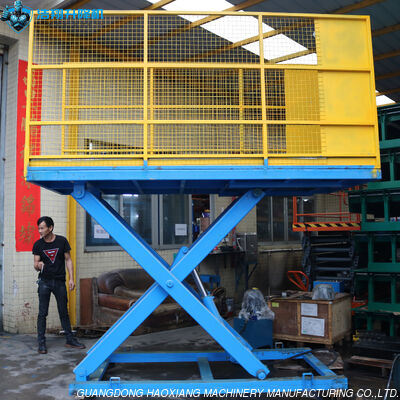

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
