Stationary Hydraulic Scissor Lift Fixed Scissor Lift Tables Cargo Lift Platform With CE/ISO
Product key attributes
| Parameter/Feature |
Specification Details |
| Service Environment |
Indoor or Outdoors |
Application
|
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Feature |
Explosion-Proof |
| Origin |
China(Mainland) |
| Transport Package |
High Quality Box |
What is the Fixed Scissor Lift Platform?
Hydraulic table is our standard model, it is equipped with single layer scissor. The max. platform height 3000mm. Load capacity has 1000kg and 2000kg.
This scissor lift table equipped with safety valve to protect the safety both for goods and user. There is also 6 types options you can choose, such as rollers, organ cover and wheels etc.
What are the Benefits of the Fixed Scissor Lift Platform?
Sagafirst scissor lifts receive corrosion-resistant shot blasting and baking finishes.
High-performance pumps ensure stable and reliable vertical transport.
Self-lubricating pivot design in anti-pinch frames prolongs equipment life.
Detachable lifting points aid in safe installation and movement.
Heavy-duty cylinders with drainage and check valves prevent accidental lowering.
Safety valves protect against overload; adjustable descent control enhances usability.
Compact, user-friendly design simplifies both operation and maintenance tasks.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

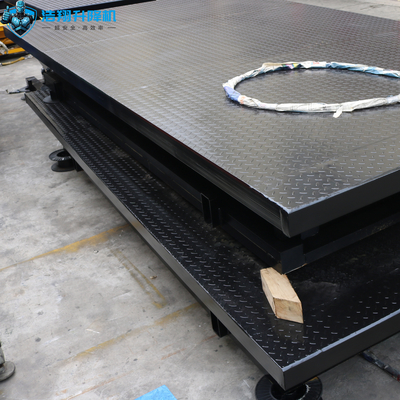

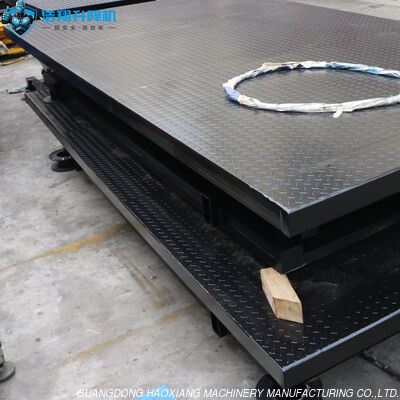

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
