CE/ISO Hot Selling Electric Portable Mini Hydraulic Scissor Lift Table
Product key attributes
| Parameter/Feature |
Specification Details |
| Twenty Years′ Experience |
Twenty Years′ Experience |
| Machine Item |
Electric Portable Mini Scissor Lift Table |
| Optional 2 |
Wheel,Guardrail,Organ Cover,Roller,Rotary Platform |
| Machine Painting Color |
Be Made According to Your Need |
| Switch |
Up/Down Button |
What is the Fixed Scissor Lift Platform?
HAOXIANG Lift is in the vertical up and down channel to carry people or goods lift the platform or semi-closed platform lifting machinery and equipment or devices,for machinery and equipment transportation, aerial work,industrial transportation,They come in different types and classifications, each designed for specific applications.
• Lifting mechanism is made by High-strength manganese steel rectangular tube
• Provided with safety devices to prevent the lift overloading
• It has a safety protection valve to prevent hydraulic hose rupture
• provided with an emergency lowering device in case of power failure
• Suit for truck unloading, assembly line, machine tools, dies, equipment installation, maintenance and other operations.
What are the Benefits of the Fixed Scissor Lift Platform?
Corrosion-resistant scissor lifts feature shot blasting and baked enamel finishes.
High-precision pump systems deliver stable lifting/lowering performance.
Anti-pinch scissor design with self-lubricating joints enhances safety and longevity.
Portable lifting attachments aid in secure transportation and installation.
Fail-safe cylinders with drainage and check valves stop descent during hydraulic failure.
Load-limiting pressure valves and adjustable flow controls ensure safe operation.
Simplified architecture reduces complexity in both use and servicing.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

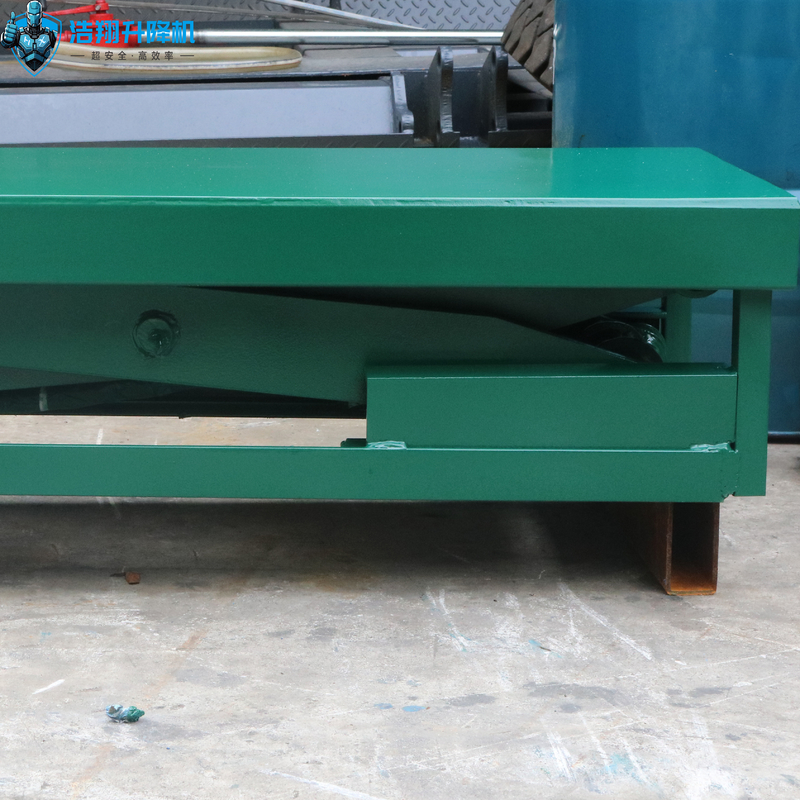

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
