HAOXIANG BRAND HX-GTY 6×8 CE/ISO Hydraulic Dock Leveler In GUANGDONG,CHINA
Product Key Attributes
| Parameter/Feature |
Specification Details |
| Load Capacity |
6T-20T |
| Platform Size |
1830(W)×495(D)×2280(H) mm |
| Safety Features |
Safety Legs, Guardrail |
| Core Components |
Motor, Oil Pump |
| Lifting Stroke |
+400mm/-300mm |
What is the Hydraulic Dock Leveler?
Safety and reliability define our Hydraulic Dock Leveler. At its core, a sophisticated hydraulic system—powered by a strong motor and efficient oil pump—delivers consistently smooth and effortless lifting, accommodating loads up to 480mm. Available initially in grey, we provide color customization options to ensure the ramp complements your facility's professional image. Manufactured from top-tier, corrosion-resistant materials, it promises maximum durability and sustained performance under rigorous use. Critical safety components like automatic safety legs and a full-length guardrail are standard, actively protecting your workforce and ensuring compliance with stringent safety codes . This versatile equipment, whether you call it a hydraulic dock ramp, leveler, or unloading system, is engineered for dependable, efficient operation. Simplified installation and minimal upkeep requirements make it a cost-effective, long-lasting investment for optimizing your loading dock's safety and throughput.
What are the Benefits of the Hydraulic Dock Leveler?
Featuring cutting-edge hydraulic technology, this Dock Leveler boasts a powerful motor and precision oil pump, forming a hydraulic lift drive system renowned for its smooth, low-effort functionality. Capable of lifting up to 480mm, it manages substantial loads with remarkable ease. While the standard finish is grey, we offer color customization (including RAL matching) to align perfectly with your facility's aesthetic. Built to endure tough conditions, its high-grade construction ensures exceptional resilience and long service life. Comprehensive safety is paramount: integrated safety legs and a sturdy guardrail safeguard personnel during operations, and the design rigorously complies with all relevant safety standards. As a versatile hydraulic loading solution—be it a ramp, leveler, or unloading device—it excels in reliability and efficiency. Its straightforward installation and low-maintenance design translate directly into operational savings and enhanced productivity.
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

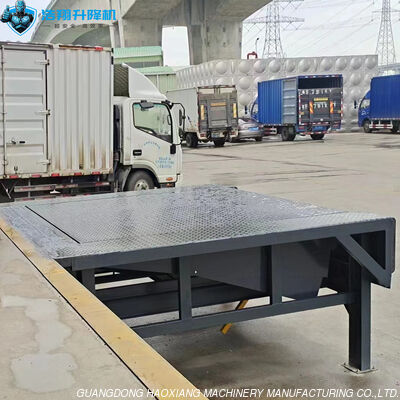

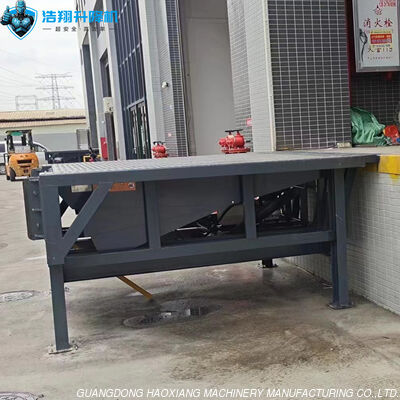

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
