Warehouse Loading Dock Ramps 10T-20T Container Loading Platform
Product Key Attributes
| Parameter/Feature |
Specification Details |
| Load Capacity |
6T-20T |
| Platform Size |
1830(W)×495(D)×2280(H) mm |
| Frequency |
50Hz |
| Lip Length |
400mm |
| Motor Power |
3kW |
| Lifting Stroke |
+400mm/-300mm |
What is the Hydraulic Dock Leveler?
Our Hydraulic Dock Leveler is the perfect solution for your loading dock needs. With its hydraulic lift drive, it provides smooth and efficient loading and unloading of your goods. The 5mm Non-Slip Diamond Mesh work platform ensures stability and safety for workers. The frequency of 50Hz ensures a reliable and consistent operation. Safety features such as Safety Legs and Guardrail ensure the safety of workers and goods. The core components, Motor and Oil Pump, are of high quality and ensure a long-lasting and durable product. Whether you need a Hydraulic loading dock ramp or a Hydraulic loading yard ramp, our Hydraulic Dock Leveler is the right choice for you.
What are the Benefits of the Hydraulic Dock Leveler?
The Hydraulic loading dock ramp is a versatile product that can be used in a variety of application occasions and scenarios. It is perfect for use in warehouses, factories, distribution centers, and other industrial settings. The loading bridge can be customized to match the unique needs of your business, and is available in grey color.
One of the key features of the haoxiang Hydraulic Dock Leveler is its lifting height of up to 480mm. This makes it easy to load and unload cargo from high trucks or trailers. The lift drive is hydraulic, which ensures a smooth and safe lifting process. The core components of this product are the motor and oil pump, which are designed to provide reliable performance over the long term.
In conclusion, the haoxiang Hydraulic Dock Leveler is a high-quality product that provides a safe and efficient solution for loading and unloading cargo. Its versatility and customization options make it a great investment for businesses of all sizes. Whether you need a Hydraulic loading dock ramp for your warehouse, factory, or distribution center, haoxiang has the perfect solution for you.
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

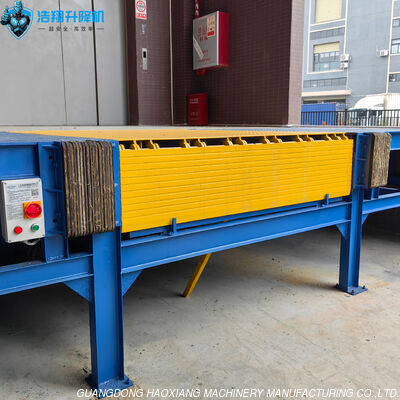

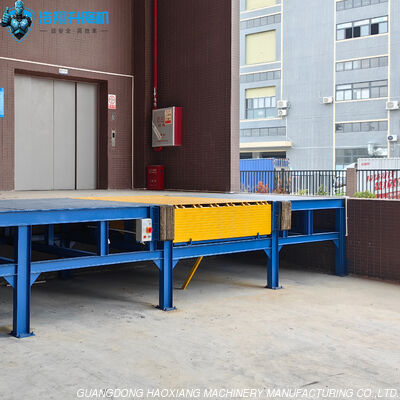

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
