3KW 380V/50HZ More Than 20000 Times CE / ISO Hydraulic Dock Leveler

3KW 380V/50HZ More Than 20000 Times CE / ISO Hydraulic Dock Leveler
3KW 380V/50HZ More Than 20000 Times CE / ISO Hydraulic Dock Leveler 3KW 380V/50HZ More Than 20000 Times CE / ISO Hydraulic Dock Leveler

Large Image :  3KW 380V/50HZ More Than 20000 Times CE / ISO Hydraulic Dock Leveler

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: HAOXIANG BRAND
Certification: CE/ISO
Model Number: HX-GTY 6×8
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 1500-2000 /UNIT
Packaging Details: nakes
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 5000 UNITS PER YEAR

3KW 380V/50HZ More Than 20000 Times CE / ISO Hydraulic Dock Leveler

Description
Product Name: Hydraulic Dock Leveler Lip Board Thickness: 15mm Anti-slip Grooved Plate
Operation Method: Hydraulic Country Of Origin: Made In China
Device Size: W1980 × L1830× H495mm Warranty: 12 Months
Power Supply: 220v/380v Lifting Speed: Up: 12s/400mm; Down: 8s/400mm
Motor Power: 3KW
Highlight:

50HZ Hydraulic Dock Leveler

,

3KW Hydraulic Dock Leveler

,

20000 Times Hydraulic Dock Leveler

3KW 380V/50HZ More Than 20000Times CE/ISO Hydraulic Dock Leveler

Product Key Attributes

Parameter/Feature Specification Details
Load Capacity 10T
Platform Size W1980 × L1830× H495mm
Certification CE/ISO
Power supply 380V/50HZ
Articulated Open / Close


What is the Hydraulic Dock Leveler?
The Hydraulic Dock Leveler is a high-performance loading bridge designed to seamlessly connect docks to trucks, trailers, and containers. With a 10T load capacity, 480mm lifting height, and rugged construction, it ensures efficient, safe, and long-lasting operation in warehouses, logistics hubs, and manufacturing plants.
What are the Benefits of the Hydraulic Dock Leveler?
Hydraulic Drive System
Key Components: High-efficiency motor + imported oil pump, delivering smooth lifting.
Precision Control: Equipped with cushioning valves to eliminate sudden drops or vibrations, protecting cargo integrity.
Low Maintenance: Sealed hydraulic circuits prevent leaks; only periodic oil changes required.

Safety Features
Safety Legs: Mechanical locking mechanism secures the platform even during hydraulic failure.

Anti-Slip Platform: 5mm diamond-pattern steel plate (optional rubber strips) with a friction coefficient ≥0.6 for wet/slippery conditions.

Durable Construction
Main Beam: high-tensile steel , sandblasted + epoxy zinc-rich coated for corrosion resistance.

Hinge Bearings: Self-lubricating copper alloy, maintenance-free, 100,000+ cycle lifespan.
Lip Plate: 400mm extension with spring-assisted return, adaptable to containers, box trucks, and flatbeds.
Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model Equipment specifications (mm) Load Capacity (t) Pit size (mm) Adjustment range (mm)
HX-GTY6×6 1830(W)×1830(L)×495(H) 6-20T 1870(W)×1830(L)×500(H) +400/-300
HX-GTY6.5×6 1980(W)×1830(L)×495(H) 6-20T 2020(W)×1830(L)×500(H) +400/-300
HX-GTY7×6 2130(W)×1830(L)×495(H) 6-20T 2170(W)×1830(L)×500(H) +400/-300
HX-GTY6×8 1830(W)×2280(L)×495(H) 6-20T 1870(W)×2280(L)×500(H) +400/-300
HX-GTY6.5×8 1980(W)×2280(L)×495(H) 6-20T 2020(W)×2280(L)×500(H) +400/-300
HX-GTY7×8 2130(W)×2280(L)×495(H) 6-20T 2170(W)×2280(L)×500(H) +400/-300
HX-GTY6×10 1830(W)×2850(L)×495(H) 6-20T 1870(W)×2850(L)×500(H) +400/-300
HX-GTY6.5×10 1980(W)×2850(L)×495(H) 6-20T 2020(W)×2850(L)×500(H) +400/-300

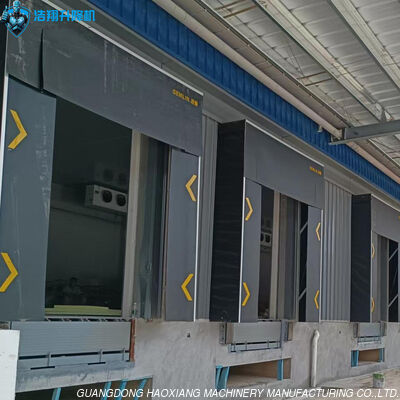

What does the Hydraulic Dock Leveler look like?
3KW 380V/50HZ More Than 20000 Times CE / ISO Hydraulic Dock Leveler 0
3KW 380V/50HZ More Than 20000 Times CE / ISO Hydraulic Dock Leveler 1
3KW 380V/50HZ More Than 20000 Times CE / ISO Hydraulic Dock Leveler 2
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.

3KW 380V/50HZ More Than 20000 Times CE / ISO Hydraulic Dock Leveler 3

3KW 380V/50HZ More Than 20000 Times CE / ISO Hydraulic Dock Leveler 4
