Electric Scissor Lift Fixed Hydraulic Electric Platform Lift Lifts Elevator for Cars
Product key attributes
| Parameter/Feature |
Specification Details |
| Type |
Fixed Scissor Lift / Immovable Scissor Elevator / Permanent Scissor Lift |
| Lifting Height |
Customized |
| Application |
Building Material Shops, Machinery Repair |
| Voltage/Power Source |
AC 220v/380v |
What is the Fixed Scissor Lift Platform?
The HAOXIANG Heavy-Duty Fixed Scissor Lift delivers industrial-grade vertical transportation with a 4-ton payload capacity and 5.5kW hydraulic power. Engineered for 5-meter elevation tasks, its all-steel frame and precision scissor assembly ensure vibration-free operation at full load. Designed as a permanent installation, this lift requires no assembly - ideal for warehouses, factories, and distribution centers. Key features include:
Low-maintenance hydraulic system with accessible components
Non-slip work surface for enhanced operator safety
Customizable options: guardrails, pit-level mounting, platform dimensions
Professional support package with preventive maintenance
A cost-effective solution for logistics, construction, and material handling operations requiring safe, reliable vertical movement.
What are the Benefits of the Fixed Scissor Lift Platform?
Streamlined Deployment & Reliability
Rapid installation minimizes operational interruptions
User-friendly hydraulic system with tool-free access points
Heavy-duty steel frame ensures extended service life
Multi-Industry Capability
Perfect for warehouses, factories, ports, and construction zones
4-ton capacity with adjustable platform dimensions
Suitable for logistics, automotive, and manufacturing sectors
Precision Performance
Vibration-damped operation maintains load stability
Safe material handling with integrated safety mechanisms
Consistent performance in high-demand environments
Enterprise-Grade Support
Technical consultancy for lifecycle management
Preventative maintenance schedules available
OEM-certified repair network for rapid response
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

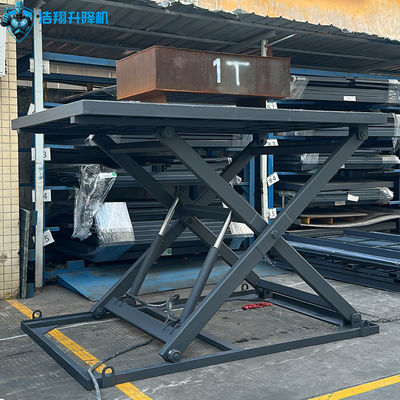

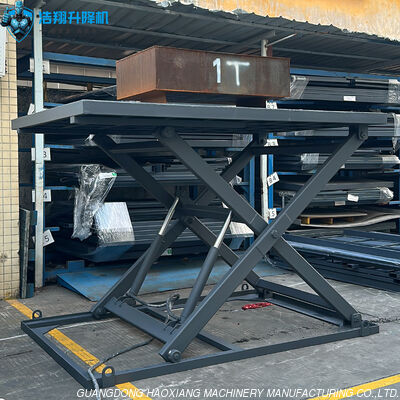

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
