Product Details:
|
Product Name: | Fixed Scissor Lifting Platform | Country Of Origin: | Made In China |
---|---|---|---|
Lift Drive: | Hydraulic | Table Size: | L2500mm×W2200mm,Customizable |
Lifting Height: | 4m/6m/8m/9m/10m/12m/14m/16m/Max 20m | Load Capacity: | 0.5-10t |
Voltage: | 220v/380v | Color: | Black,Customizable |
Material: | Steel | Core Components: | Motor, Oil Pump |
Anti Skid 10T Stationary Scissor Lift Platform With 5000mm Max Height
Product key attributes
Parameter/Feature | Specification Details |
Lift Drive / Actuation | Hydraulic |
Rainproof | Yes |
Application | Building Material Shops, Machinery Repair |
Main body finish | Painting + Baking |
Voltage | 220v/380v |
Core Components | Pressure vessel, motor, Bearing, Gear, Pump |
What is the Fixed Scissor Lift Platform?
Our Fixed - Design Scissor Lift boasts a platform that reaches a height of 5 meters, rendering it highly suitable for an array of tasks. Be it hoisting bulky machinery, transporting construction materials, or elevating workers, this scissor lift is up to the challenge. Moreover, we can tailor the lifting height to align precisely with your individual requirements, enabling you to effortlessly attain the target elevation.
The hydraulic mechanism of our Immobile Scissor Lift is crafted to deliver seamless and accurate management of the lifting operation. Operating this system is a breeze, and it guarantees that the lift maintains a steady and secure state during the entire lifting process. As a result, our scissor lift stands as a dependable and trustworthy option for your demanding lifting tasks.
We recognize that customers often have distinct preferences regarding the color of their equipment. Hence, we provide the flexibility to personalize the color of our Stable Scissor Platform to suit your particular wishes. This way, your equipment not only excels in performance but also enhances the aesthetic appeal of your workspace.
To sum up, our Stable Scissor Platform is a dependable and high - performance solution for your heavy - duty lifting requirements. Equipped with a hydraulic system, a customizable lifting height, and a fixed - type construction, this Non - Movable Scissor Lift is perfect for diverse applications. And with the ability to customize its color, you can ensure that the lift not only functions optimally but also adds a touch of style to your workspace. So, don't hesitate! Invest in our Stationary Scissor Lift right now and elevate your heavy - duty lifting capabilities to new heights!
What are the Benefits of the Fixed Scissor Lift Platform?
One common application for the HAOXIANG SJG3-4 is in industrial settings, where heavy machinery or materials need to be lifted to different heights. This stationary scissor lift can be used to move items between floors, load and unload trucks, and transport materials to different areas of the facility.
In the construction industry, the HAOXIANG SJG3-4 is ideal for use in building maintenance and repair work. Workers can use the steady scissor stage to access hard-to-reach areas, such as the exterior of a building, and perform tasks safely and efficiently.
The HAOXIANG SJG3-4 can also be used in the automotive industry for tasks such as changing tires or performing undercarriage repairs. The anti-skid platform provides a stable and safe surface for workers, while the lifting stroke of 4000mm allows for easy access to the underside of vehicles.
Other possible scenarios for the HAOXIANG SJG3-4 include use in warehouses, where it can be used to move heavy items to different levels, and in retail settings, where it can be used to set up displays or change signage at high levels.
With a minimum order quantity of just one unit and delivery time of 15 days, the HAOXIANG SJG3-4 is a flexible and reliable option for businesses in need of a steady scissor stage. The product, which is certified and has a supply ability of 4000 units per year, is shipped naked and payment can be made via T/T.
Products model and parameter series of the Fixed Scissor Lift Platform.
Technical Parameter | |||||||
Specifications, sizes and colors can be customized according to customer requirements | |||||||
Model | Rated load (kg) | Lifting stroke (mm) | Maximum height (mm) | Lower height (mm) | Table size (mm) | Lifting time | Motor power (kw) |
SJG1-1.7 | 1000 | 1700 | 2150 | 450 | 2500×2000 | 20 | 3 |
SJG10-1.7 | 10000 | 1700 | 2500 | 800 | 4000×2000 | 30 | 11 |
SJG3-4 | 3000 | 3000 | 3650 | 650 | 1500×6000 | 40 | 5.5 |
SJG1-4 | 1000 | 4000 | 4600 | 600 | 3100×5000 | 60 | 4 |
SJG2-5 | 2000 | 5000 | 5900 | 900 | 7000×3000 | 60 | 5.5 |
SJG3-6 | 3000 | 6000 | 7000 | 1000 | 6000×5000 | 70 | 7.5 |
SJG5-1.7 | 5000 | 1700 | 2350 | 650 | 6000×2000 | 40 | 7.5 |

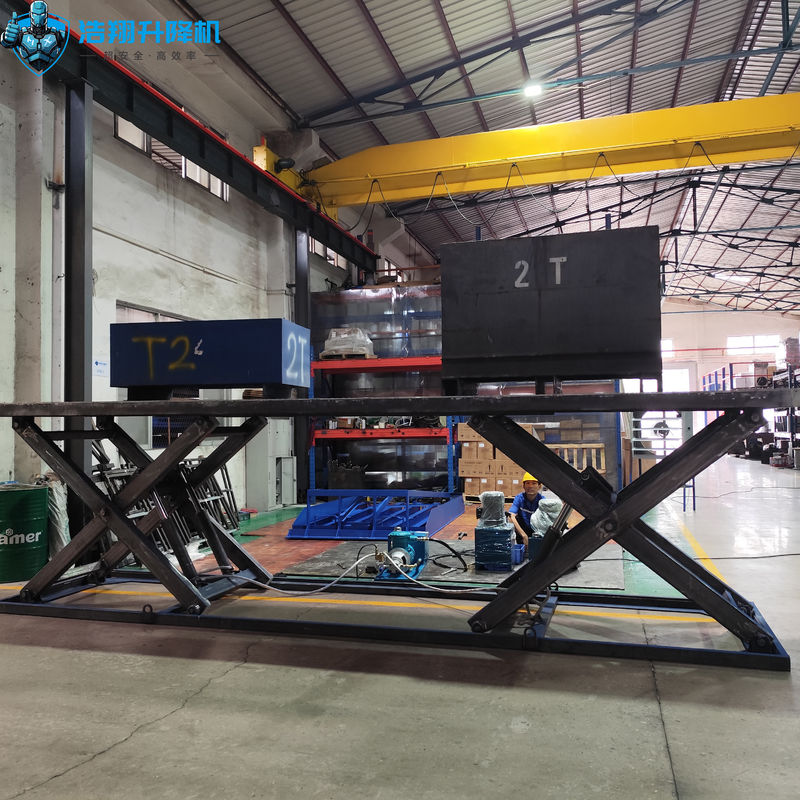

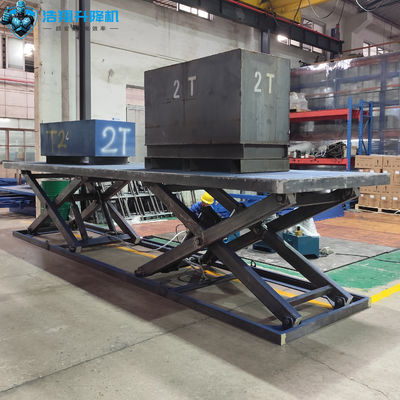

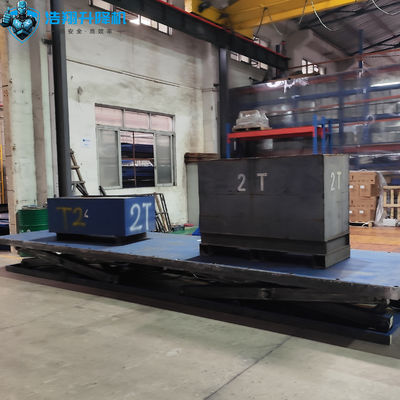

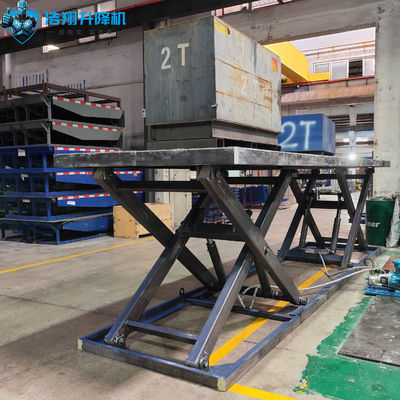

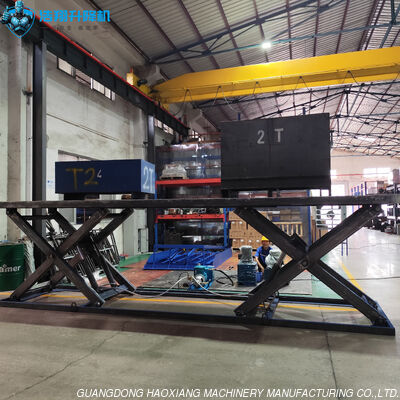

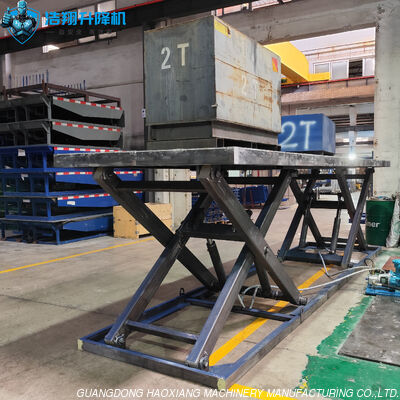

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
