Container Loading And Unloading Cargo Hydraulic Leveler 10T Container Loading Platform
Product key attributes
| Parameter |
Specification |
| Safety Features |
Safety Legs, Guardrail |
| Platform Size |
W1980 × L1830× H495mm |
| Color |
Green / Customizable |
| Operation |
Hydraulic, push-button control |
| Adjust |
+400mm/-300mm |
| Core Components |
Motor, Oil Pump |
What is the Hydraulic Dock Leveler?
The Hydraulic Dock Leveler is a high-performance loading bridge designed to seamlessly connect docks to trucks, trailers, and containers. With a 10T load capacity, 480mm lifting height, and rugged construction, it ensures efficient, safe, and long-lasting operation in warehouses, logistics hubs, and manufacturing plants.
What are the Benefits of the Hydraulic Dock Leveler?
Hydraulic Drive System
Key Components: High-efficiency motor + imported oil pump, delivering smooth lifting.
Precision Control: Equipped with cushioning valves to eliminate sudden drops or vibrations, protecting cargo integrity.
Low Maintenance: Sealed hydraulic circuits prevent leaks; only periodic oil changes required.
Safety Features
Safety Legs: Mechanical locking mechanism secures the platform even during hydraulic failure.
Anti-Slip Platform: 5mm diamond-pattern steel plate (optional rubber strips) with a friction coefficient ≥0.6 for wet/slippery conditions.
Durable Construction
Main Beam: high-tensile steel , sandblasted + epoxy zinc-rich coated for corrosion resistance.
Hinge Bearings: Self-lubricating copper alloy, maintenance-free, 100,000+ cycle lifespan.
Lip Plate: 400mm extension with spring-assisted return, adaptable to containers, box trucks, and flatbeds.
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

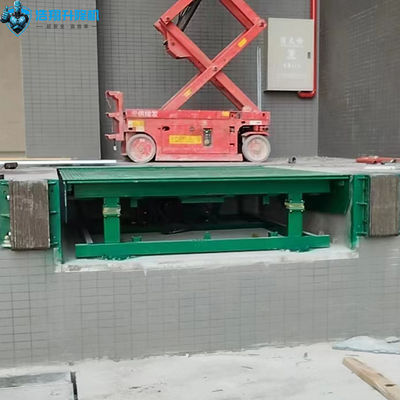

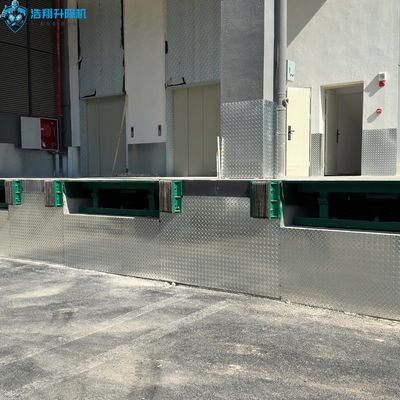

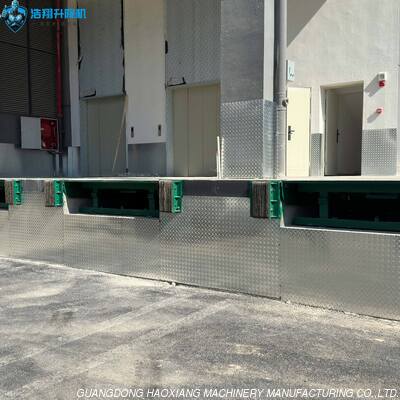

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
