Green 10T Warehouse Fixed Hydraulic Dock Leveler Hydraulic Dock Ramp Adjustable Height Loading Dock

Large Image : Green 10T Warehouse Fixed Hydraulic Dock Leveler Hydraulic Dock Ramp Adjustable Height Loading Dock

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	HX-GTY 6×8

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD 1500-2000 /UNIT
Packaging Details:	nakes
Delivery Time:	7-15 working days
Payment Terms:	T/T
Supply Ability:	5000 UNITS PER YEAR

Contact Now

Green 10T Warehouse Fixed Hydraulic Dock Leveler Hydraulic Dock Ramp Adjustable Height Loading Dock

Description

Product Name:	Hydraulic Dock Leveler	Country Of Origin:	Made In China
Operation Method:	Hydraulic	Lip Board Thickness:	15mm Anti-slip Grooved Plate
Core Components:	Motor, Oil Pump	Power Source:	Electric
Certification:	CE/ISO	Articulated:	Open / Close
Working Lift:	More Than 20000times	Power Supply:	220v/380v

Green 10T Warehouse Fixed Hydraulic Dock Leveler Hydraulic Dock Ramp Adjustable Height Loading Dock

Product key attributes

Parameter	Specification
Load Capacity	6-20T (customizable)
Platform Size	W1980 × L1830× H495mm
Power Source	Electric
Operation	Hydraulic, push-button control
Warranty	12Months
Color	Green / Customizable

What is the Hydraulic Dock Leveler?
The Warehouse Dock Leveler is a robust, hydraulic-operated loading dock solution designed to bridge the gap between the dock and trucks seamlessly. With a 10T load capacity (expandable to 20T) and CE certification, it ensures safe, efficient, and ergonomic cargo handling for warehouses, distribution centers, and logistics hubs.
What are the Benefits of the Hydraulic Dock Leveler?
Heavy-Duty Capability
Cylinder bore sizes up to Φ320mm generate 250-bar operating pressure
Reinforced chrome-plated rods resist bending under full load
Case Study: Automotive assembly line lifting 18T diesel engines

Precision Motion Control
Proportional valve technology enables 0.1mm/s micro-adjustments
Vibration damping coefficient <0.5Hz for nanoscale alignment
Applications: Lithography machine leveling, telescope mirror positioning

Safety Architecture
Dual-circuit fail-safe system with mechanical locks
Real-time pressure monitoring (1,000Hz sampling rate)
Compliance: EN ISO 4413, ASME B30.1 standards

Environmental Resistance
Operating temperature: -30°C to +80°C
IP69K enclosure rating for washdown environments
Seismic-rated mounting options (up to 0.5g acceleration)
Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

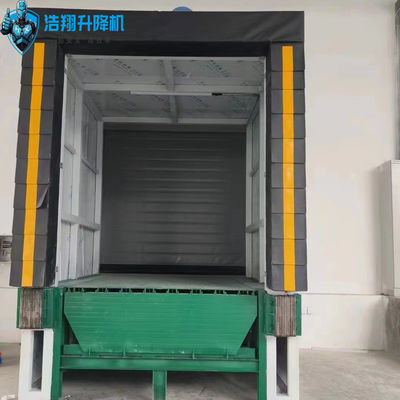

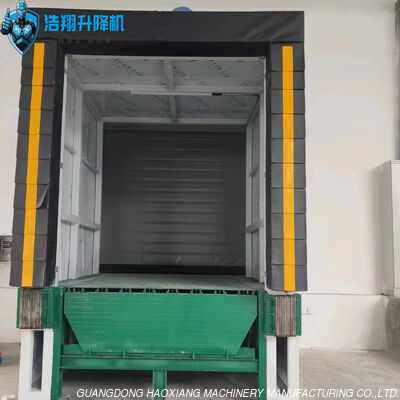

What does the Hydraulic Dock Leveler look like?
Green 10T Warehouse Fixed Hydraulic Dock Leveler Hydraulic Dock Ramp Adjustable Height Loading Dock 0

What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
