Warehouse Loading Dock Leveler 6T Container Loading Platform
Product key attributes
| Parameter |
Specification |
| Load Capacity |
6-20T (customizable) |
| Platform Size |
W1980 × L1830× H495mm |
| Lifting Height |
700mm (+400/-300mm adjustable) |
| Motor Power |
380V / 50Hz |
| Warranty |
1 Year |
| Certification |
CE/ISO |
What is the Hydraulic Dock Leveler?
Hydraulic height adjustment plate is a platform or pad driven by a hydraulic system and used for precise height adjustment. It is widely used in industries, logistics, automobiles, stage equipment and other fields. Its core principle is to use hydraulic cylinders or hydraulic pumps to provide power to achieve a stable and efficient lifting function.
What are the Benefits of the Hydraulic Dock Leveler?
High load capacity
The hydraulic system can provide great thrust and is suitable for height adjustment of heavy equipment (such as machine tools, cars, containers), and can bear dozens of tons of load.
Smooth and accurate control
The hydraulic transmission has no impact and stable lifting process, which is suitable for precision equipment adjustment (such as semiconductor manufacturing, optical instrument calibration).
Available in millimeter-level fine adjustment, which is better than mechanical spiral or pneumatic adjustment methods.
Adjust height across a large range
The travel range is wide, from a few centimeters to several meters to custom-made (such as stage lifts, car lifts).
Safe and reliable
The hydraulic system comes with a self-locking function, which can keep the position unchanged even if the power is cut off or oil leakage.Equipped with explosion-proof valve and overload protection to prevent accidental falls.
Adapt to harsh environments
The hydraulic system is resistant to high temperature, dust and vibration, and is suitable for complex working conditions such as factories, mines, outdoors and other conditions.
Low maintenance requirements
Compared with pneumatic systems (needed to air compressors) or electric systems (easy to wear), hydraulic systems are simple to maintain, and only regular inspection of oil circuits and seals are required.
Energy-saving and efficient
Energy is consumed only when lifting and lowering, and no power consumption is required when stationary (the electric system needs to be continuously powered and maintained at the position).
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

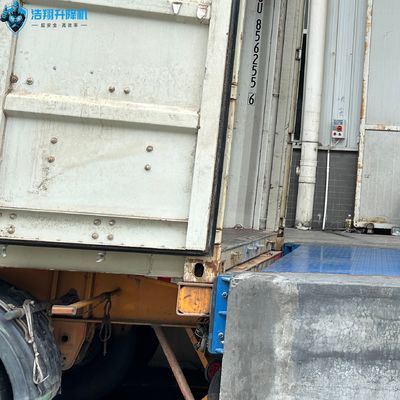

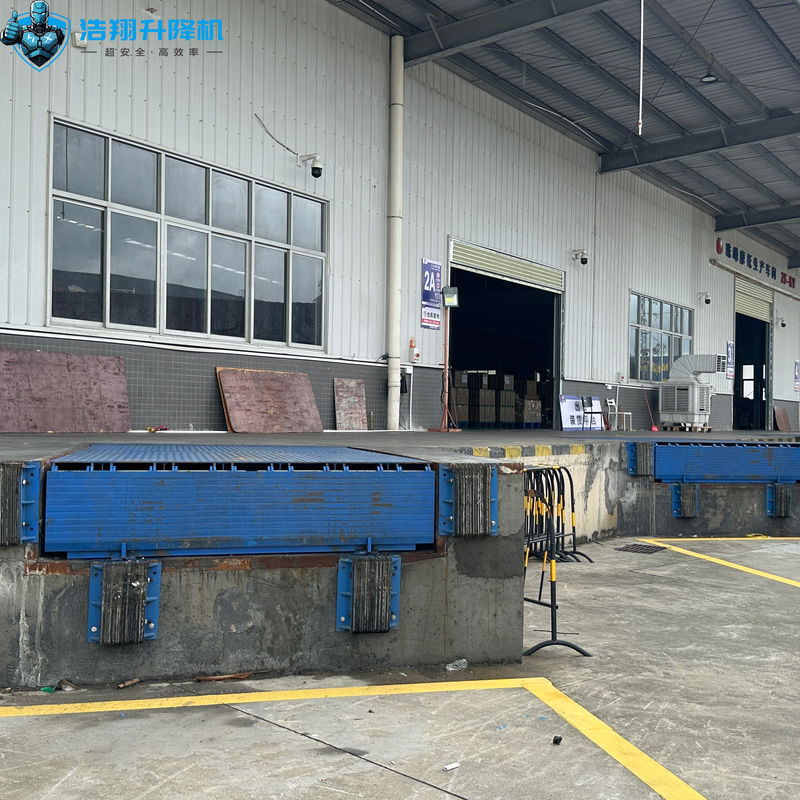

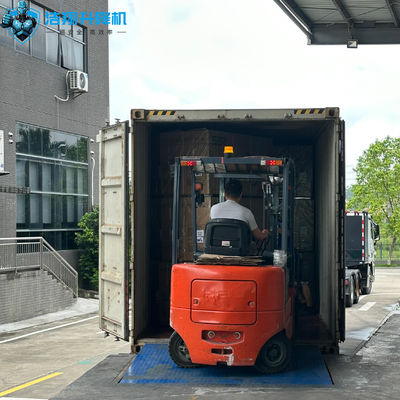

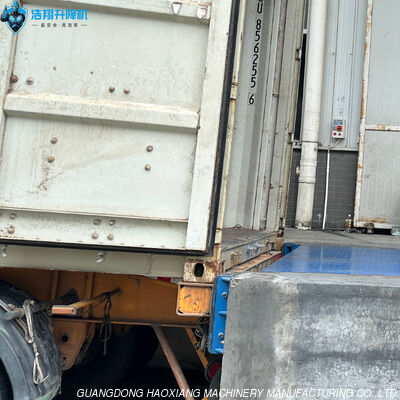

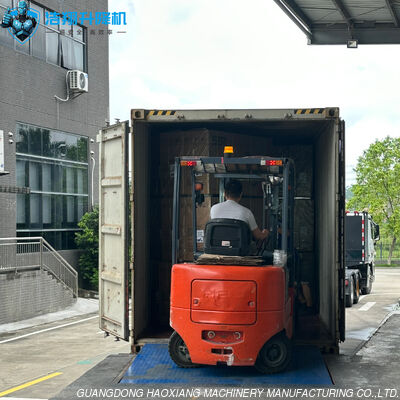

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Haoxiang: Pioneering Hydraulic Lifting Solutions Since 2005
Strategically located in Zhongshan's manufacturing hub, our 21,500㎡ state-of-the-art facility produces industry-leading hydraulic equipment. As a government-recognized high-tech enterprise, we combine 30 million RMB capital strength with German-engineered precision.
Differentiators:
Product Portfolio: Full range of hydraulic lifts, dock levelers, and goods lifts
Technology: AI-powered predictive maintenance systems for equipment
Safety: Compliance with EN 1570 and ASME B30.1 standards
Capacity: 15,000 units/year production capacity with 89% automation rate
Service: 24/7 national support with 45 mobile service units.
