Container Loading And Unloading Cargo Hydraulic Leveler 6-20T Container Loading Platform

Large Image : Container Loading And Unloading Cargo Hydraulic Leveler 6-20T Container Loading Platform

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	HX-GTY 6×8

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	USD 1500-2000 /UNIT
Packaging Details:	NAKES
Delivery Time:	7-15 WORKING DAYS
Payment Terms:	T/T
Supply Ability:	5000 UNITS PER YEAR

Contact Now

Container Loading And Unloading Cargo Hydraulic Leveler 6-20T Container Loading Platform

Description

Product Name:	Hydraulic Dock Leveler	Country Of Origin:	Made In China
Lifting Height:	700mm (+400/-300mm Adjustable)	Platform Thickness:	5mm Steel + Reinforcement Ribs
Warranty:	12 Months	Power Source:	Electric
Color:	Green / Customizable	Working Lift:	More Than 20000times
Power Supply:	220v/380v	Application:	Loading And Unloading Goods Between Trucks And Warehouse

Container Loading And Unloading Cargo Hydraulic Leveler 6-20T Container Loading Platform

Product key attributes

Parameter	Specification
Load Capacity	6-20T (customizable)
Platform Size (L×W)	customizable
Lifting Height	700mm (+400/-300mm adjustable)
Motor Power	3kW / 380V / 50Hz
Platform Thickness	5mm steel + reinforcement ribs

What is the Hydraulic Dock Leveler?
The Hydraulic Dock Leveler is a high-performance loading bridge designed to seamlessly connect docks to trucks, trailers, and containers. With a 6-20T load capacity, 700mm total lifting height, and rugged construction, it ensures efficient, safe, and long-lasting operation in warehouses, logistics hubs, and manufacturing plants.

What are the Benefits of the Hydraulic Dock Leveler?
Hydraulic Drive System
Key Components: High-efficiency motor + imported oil pump, delivering smooth lifting.
Precision Control: Equipped with cushioning valves to eliminate sudden drops or vibrations, protecting cargo integrity.
Low Maintenance: Sealed hydraulic circuits prevent leaks; only periodic oil changes required.

Safety Features
Safety Legs: Mechanical locking mechanism secures the platform even during hydraulic failure.
Anti-Slip Platform: 5mm diamond-pattern steel plate (optional rubber strips) with a friction coefficient ≥0.6 for wet/slippery conditions.

Durable Construction
Main Beam: high-tensile steel , sandblasted + epoxy zinc-rich coated for corrosion resistance.
Hinge Bearings: Self-lubricating copper alloy, maintenance-free, 100,000+ cycle lifespan.
Lip Plate: 400mm extension with spring-assisted return, adaptable to containers, box trucks, and flatbeds.

Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

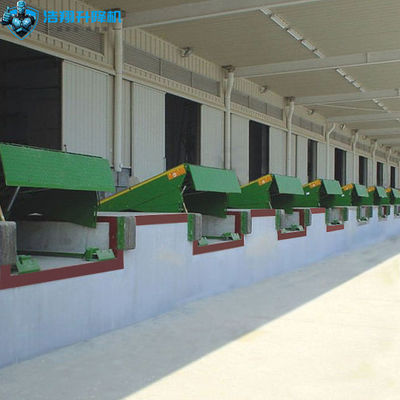

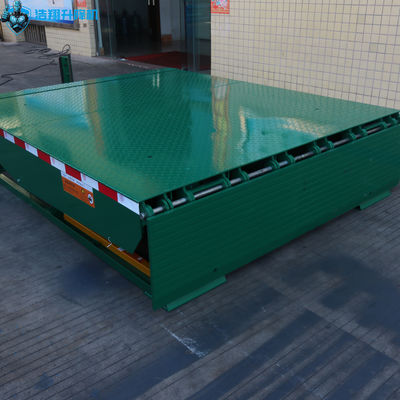

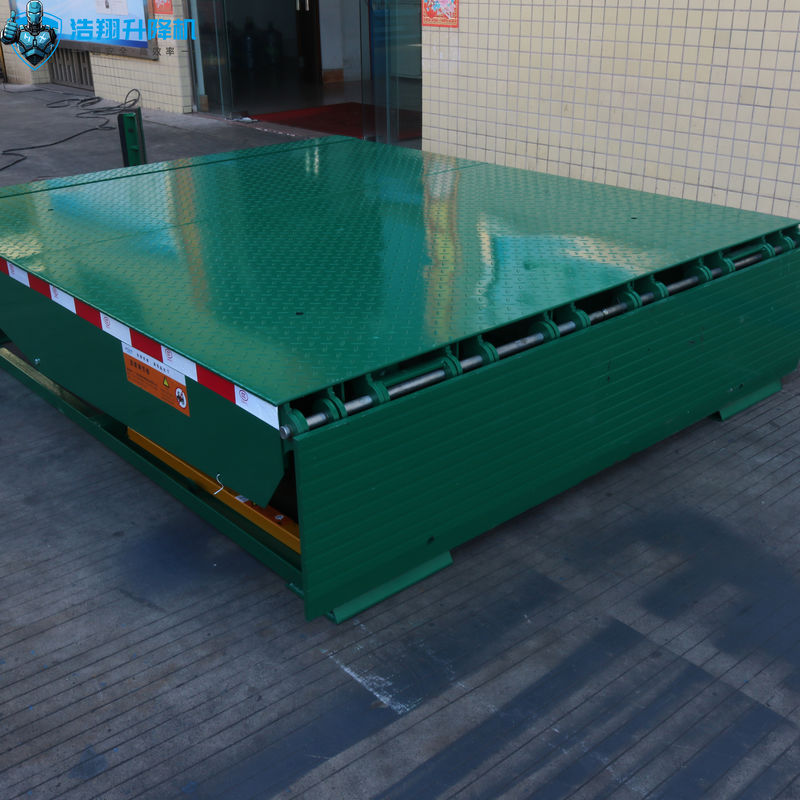

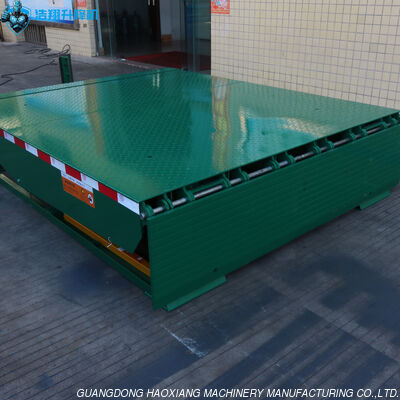

What does the Hydraulic Dock Leveler look like?
Container Loading And Unloading Cargo Hydraulic Leveler 6-20T Container Loading Platform 0

What is the name of our company and where we are?
Haoxiang: Pioneering Hydraulic Lifting Solutions Since 2005
Strategically located in Zhongshan's manufacturing hub, our 21,500㎡ state-of-the-art facility produces industry-leading hydraulic equipment. As a government-recognized high-tech enterprise, we combine 30 million RMB capital strength with German-engineered precision.

Differentiators:
Product Portfolio: Full range of hydraulic lifts, dock levelers, and goods lifts
Technology: AI-powered predictive maintenance systems for equipment
Safety: Compliance with EN 1570 and ASME B30.1 standards
Capacity: 15,000 units/year production capacity with 89% automation rate
Service: 24/7 national support with 45 mobile service units.
