FASTLINK 6.8-15Tons New Steel Truck Forklift Unloading Electric Hydraulic Scissor Dock Leveler Lifting Table Platform
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Hydraulic Dock Leveler |
| Lift Drive / Actuation |
Hydraulic |
| Operation Method |
Hydraulic |
| Core Components |
Motor, Oil Pump |
| Device Size |
W1980 × L1830× H495mm |
| Adjustment Range |
Up to 400 mm,Down to 300 mm |
| Application |
Loading and unloading goods between trucks and warehouse |
What is the Hydraulic Dock Leveler?
Designed for intensive loading/unloading operations, this Chinese hydraulic dock leveler serves as the critical link between warehouse and vehicles. Key specifications:
15mm lip thickness for durable truck.
6.5ft×6ft platform with 20T maximum load
±700mm vertical adjustment range
Electric hydraulic system with 20,000+ cycle life
CE/ISO certified safety compliance
Fixed scissor lift mechanism with open/close articulation
220v/380v dual voltage operation
1-year comprehensive warranty
Available in green or custom colors for industrial facilities.
What are the Benefits of the Hydraulic Dock Leveler?
Corporate Color Matching
Choose from 6 standard powder-coat finishes or customize with your company colors (RAL color matching available).
Adaptive Height Programming
Programmable memory settings store frequently used vehicle heights, reducing setup time between different carrier fleets.
Expandable Platform System
Modular design allows future extension to 8ft widths as your logistics needs grow.
Cold Storage Package
Optional -40°C rated components for food-grade and refrigerated warehouse applications.
IoT-Ready Architecture
Pre-wired for sensor integration with warehouse management systems (WMS) for predictive maintenance alerts.
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

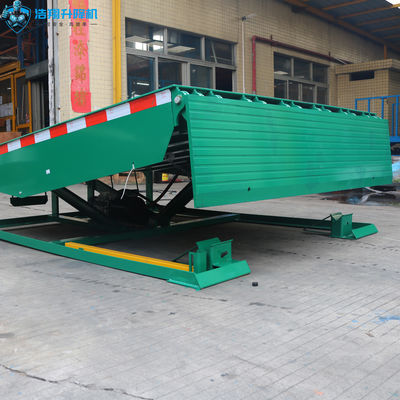

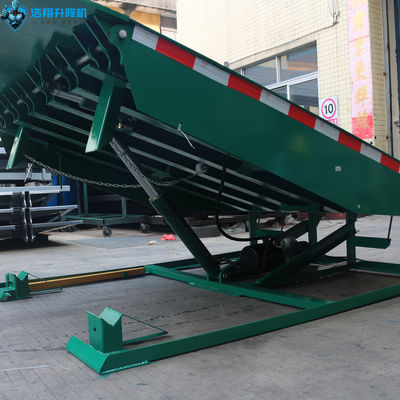

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
