New Condition Mini Power Pack Dock Leveler Container Loading Platform Dock Level Lifter Mechanical Dock Levelers
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Hydraulic Dock Leveler |
| Lift Drive / Actuation |
Hydraulic |
| Load |
6-20 tons |
| Adjustment Range |
Up to 400 mm,Down to 300 mm |
| Application |
Loading and unloading goods between trucks and warehouse |
| Warranty |
12Months |
What is the Hydraulic Dock Leveler?
Maximize warehouse efficiency with this Chinese-made hydraulic dock leveler featuring:
15mm reinforced lip for seamless truck.
±700mm vertical adjustment range (+400/-300mm)
6.5ft×6ft standard platform with 20T max capacity
Electric hydraulic system with motor/oil pump core
Over 20,000 cycle lifespan with CE/ISO certification
Adjustable green finish (custom colors available)
12-month comprehensive warranty
Dual voltage compatibility (220v/380v)
Fixed scissor lift mechanism with safe articulation
What are the Benefits of the Hydraulic Dock Leveler?
Electric Hydraulic Powertrain
The maintenance-free electric motor and oil pump system delivers smooth, precise operation without hydraulic fluid leaks common in older systems.
6.5ft×6ft Optimized Platform
This strategically sized platform balances warehouse space efficiency with sufficient loading area for standard pallet configurations.
Dual Voltage Flexibility
Compatible with both 220v and 380v power supplies, this unit adapts to diverse industrial electrical infrastructures without requiring transformer modifications.
Open/Close Safety Articulation
The sequential movement mechanism ensures safe transition between warehouse floor and vehicle bed, preventing dangerous platform separation.
Rapid Deployment Design
Factory pre-assembled with modular components, installation time is reduced by 40% compared to traditional dock levelers.
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

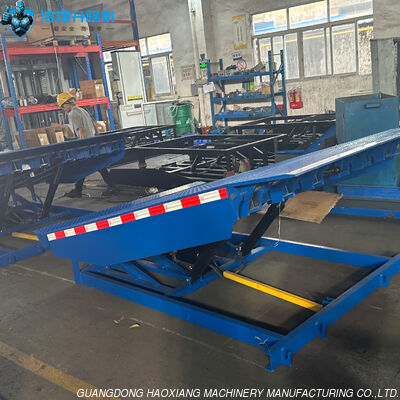

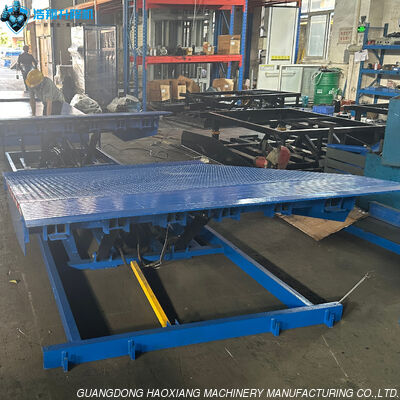

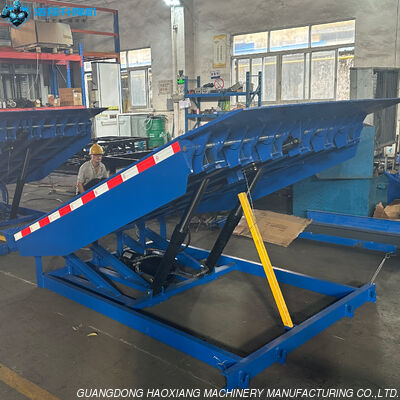

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
