New Manufacturing Plant Articulated Lift Automatic Truck Loading Ramp Hydraulic Warehouse Truck Ramp Loading Dock Leveler
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Hydraulic Dock Leveler |
| Lift Drive / Actuation |
Hydraulic |
| Country of Origin |
Made in China |
| Certification |
CE/ISO |
| Lip Board Thickness |
15mm Anti-slip grooved plate |
What is the Hydraulic Dock Leveler?
The Hydraulic Dock Leveler (Made in China, CE/ISO certified) features a robust 15mm lip board and operates via electric-powered hydraulic system with core components including motor and oil pump. Designed for loading/unloading applications, it offers adjustable height range of +400mm/-300mm with standard 6.5ft×6ft dimensions. Capable of handling 6-20T loads with over 20,000 working cycles, this green-colored unit (customizable) operates at 220v/380v and includes 1-year warranty. The fixed scissor lift mechanism with open/close articulation ensures smooth vehicle.
What are the Benefits of the Hydraulic Dock Leveler?
Reinforced 15mm Lip Plate
Constructed with heavy-duty 15mm thick steel, this lip plate withstands constant impact from loading vehicles, ensuring long-term structural integrity at critical docking points.
20,000+ Cycle Industrial Rating
Engineered for continuous operation, this dock leveler maintains performance through over 20,000 working cycles - equivalent to 5+ years of 10-cycles-per-day operation.
Fixed Scissor Lift Stability
The robust scissor mechanism provides exceptional lateral stability while handling loads from 6 to 20 tons, minimizing platform deflection during heavy cargo transfers.
±700mm Vertical Adjustment
With an impressive +400mm/-300mm adjustment range, this leveler accommodates vehicles with ground clearances ranging from standard trailers to low-profile delivery vans.
Dual CE/ISO Certification
Compliance with both European CE standards and ISO quality management systems guarantees global safety compliance and manufacturing excellence.
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

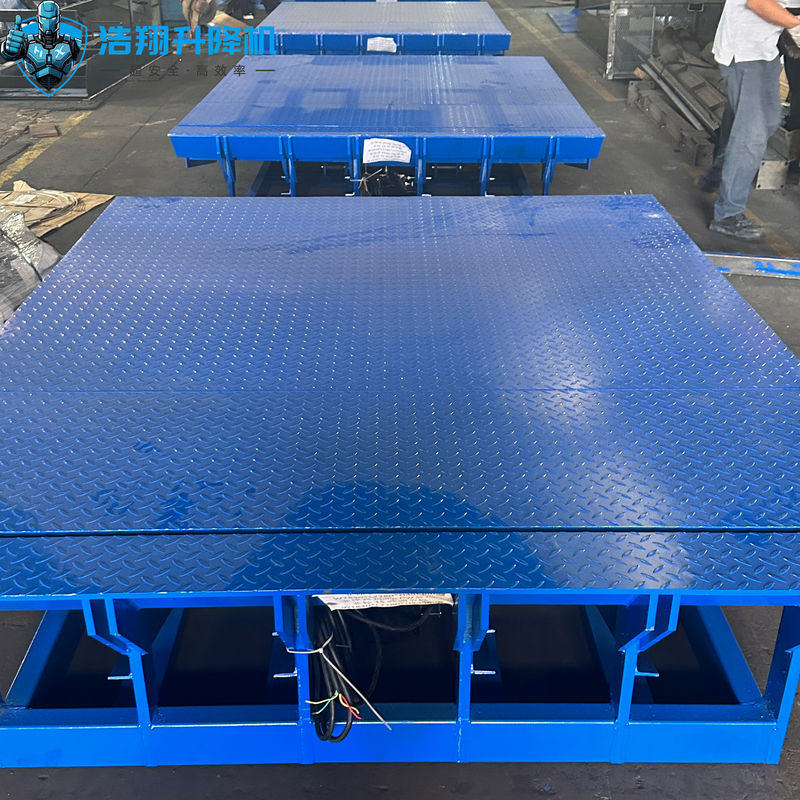

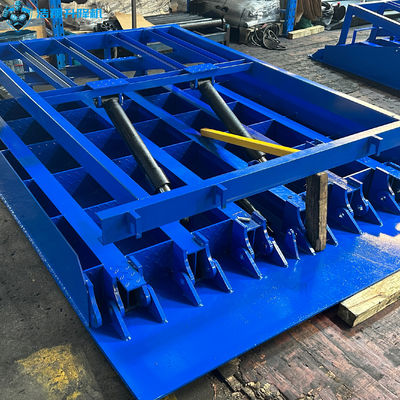

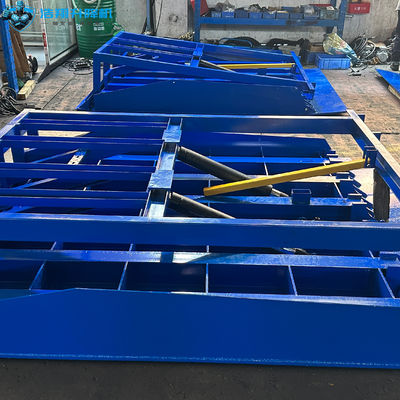

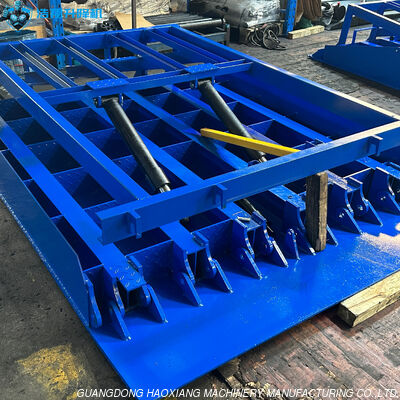

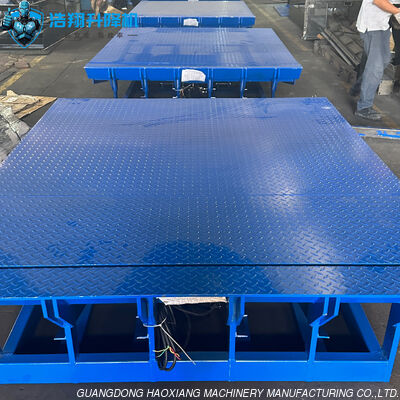

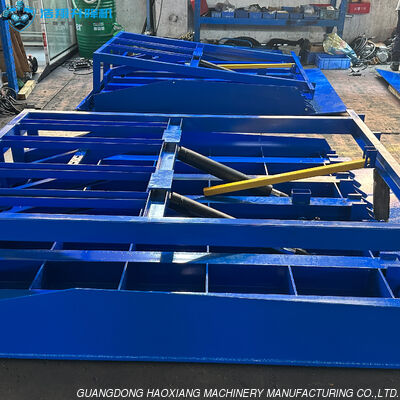

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
