Customized 3 Tons Stationary Scissor Lift Table for Warehouses Factory Hoist Product
Product key attributes
| Parameter/Feature |
Specification Details |
| Lift Drive / Actuation |
Hydraulic |
| Overall Dimensions |
On-demand customization |
| Customized support |
OEM |
| Certification |
CE/ISO |
| Table Size |
L1920*W1300mm or Customized |
| Color |
red/ yellow / as your request |
What is the Fixed Scissor Lift Platform?
Featuring critical safety enhancements—360° obstacle detection, dual-channel emergency stops, articulating support legs, motor-driven safety barriers, and modular handrails—this fixed scissor lift platform supports 0.1-10 metric tons. It is constructed with either a steel skeleton or high-strength plating. A monocoque platform and parallelogram scissor mechanism provide the necessary rigidity for industrial applications. Engineered with anti-corrosion treatments for precision and durability, it serves diverse sectors (shipbuilding to pharmaceuticals) and allows for complete customer-driven modifications.
What are the Benefits of the Fixed Scissor Lift Platform?
Hydraulic System (Full-Flow)
Overall powertrain efficiency is increased by continuous speed regulation via adaptive load sensing.
Descent Priority Function
For emergency situations, gradual platform lowering is achieved by activating precision-engineered cylinders.
Intelligent Ground Adaptation
Stability on potholes or inclines is maintained by a machine self-awareness system performing dynamic leveling control.
Proportional Control (CANbus)
Wiring complexity is reduced, and precise actuator synchronization is enabled, using fieldbus architecture.
Battery Charge Management (Smart)
Safe and efficient recharging is ensured through multi-parameter regulation of current, voltage, and temperature.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

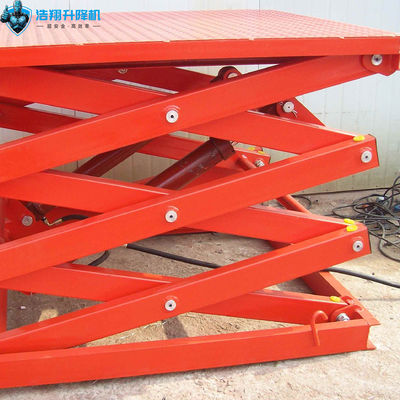

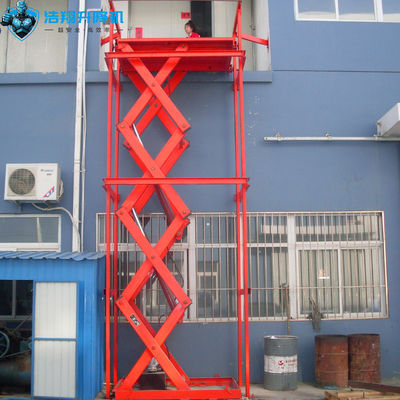

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
