Hydraulic Fixed Scissor Lift Platform for Large Fixed Scissor Lift Operation Platform, Warehouse Factory
Product key attributes
| Parameter/Feature |
Specification Details |
| Lift Drive / Actuation |
Hydraulic |
| Overall Dimensions |
On-demand customization |
| Application |
Building Material Shops, Machinery Repair |
| Main body finish |
Painting + Baking |
| Lifting Height |
1-20m/As per users' need |
| Certification |
CE/ISO |
| Usage |
Cargo Lift Used |
| Warranty |
1 Year |
What is the Fixed Scissor Lift Platform?
Supporting capacities from 0.1 to 10 metric tons, this fixed scissor lift platform offers a choice between steel skeletal construction or high-strength steel plating. Its rigid monocoque platform and parallelogram scissor mechanism ensure exceptional stability for demanding industrial use. Enhanced safety is provided by 360° obstacle detection, dual-channel emergency stops, articulating support legs, motor-driven safety barriers, and modular handrails. Treated for corrosion resistance and built for precision and longevity, it serves diverse sectors from shipbuilding to pharmaceuticals and can be fully customized per customer specifications.
What are the Benefits of the Fixed Scissor Lift Platform?
Full-Flow Hydraulics
Adaptive load sensing enables continuous speed adjustment, boosting powertrain efficiency.
Priority Descent
Emergency activation deploys precision cylinders for controlled, gradual platform lowering.
Intelligent Ground Compensation
A self-aware system ensures stability on uneven or inclined terrain via dynamic leveling.
CANbus Proportional Control
Fieldbus technology simplifies wiring and delivers precise, synchronized actuator management.
Smart Charging
Multi-parameter control (current, voltage, temperature) guarantees safe and efficient battery recharging.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

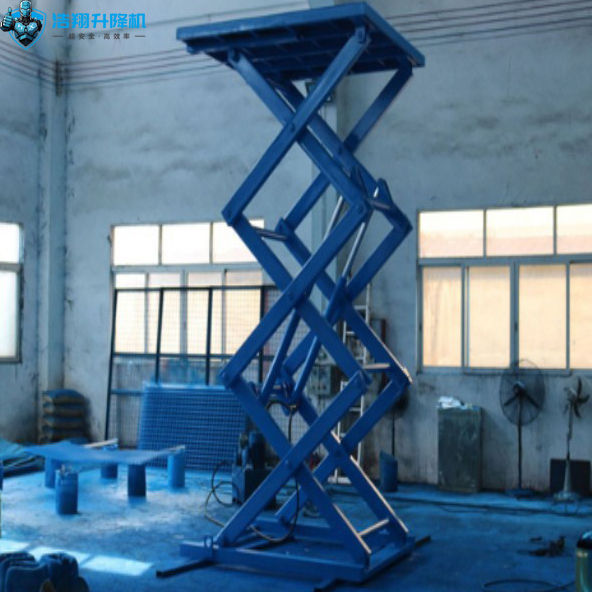

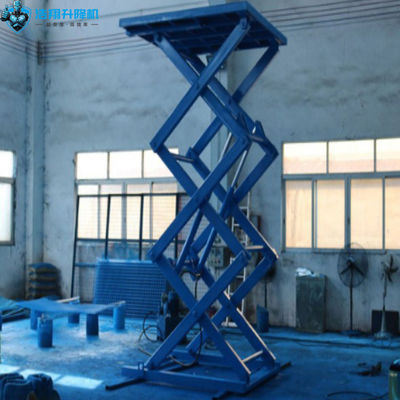

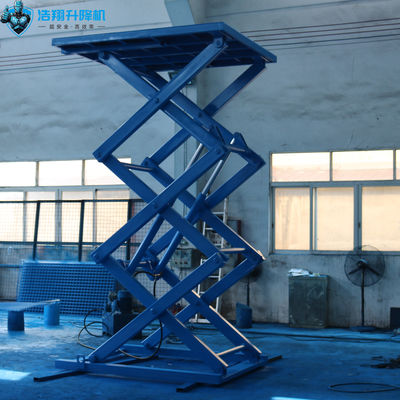

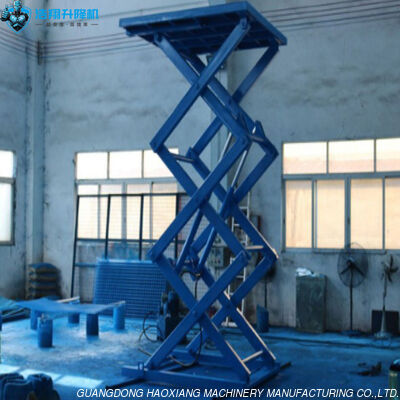

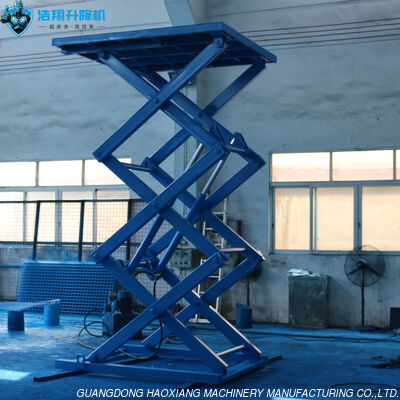

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
