Multifunction Stationary Scissor Lift 500kg 2000KG 3000KG 4000KG Electric Hydraulic Small Lift Fixed Scissor Lift
Product key attributes
| Parameter/Feature |
Specification Details |
| Lift Drive / Actuation |
Hydraulic |
| Rainproof |
Yes |
| Application |
Building Material Shops, Machinery Repair |
| Main body finish |
Painting + Baking |
| Lifting Height |
1-20m/As per users' need |
| Voltage |
220v/380v |
| Certification |
CE/ISO |
| Core Components |
Pressure vessel, motor, Bearing, Gear, Pump |
| Power Unit |
High quality exclusive motor |
What is the Fixed Scissor Lift Platform?
Offering either steel skeletal construction or high-strength steel plating options, the fixed scissor lift platform supports 0.1-10 metric ton capacities. Its parallelogram scissor design and monocoque platform provide exceptional rigidity for industrial applications. Safety enhancements include 360° obstacle detection, dual-channel emergency stops, articulating support legs, motor-driven safety barriers, and modular handrails. Engineered for precision and longevity with anti-corrosion treatments, this equipment serves sectors from shipbuilding to pharmaceuticals while accepting full equipment modifications per customer requirements.
What are the Benefits of the Fixed Scissor Lift Platform?
Full-Flow Hydraulic System
Continuous speed regulation with adaptive load sensing improves overall powertrain efficiency.
Priority Descent Control
Emergency mode activates precision-engineered cylinders for gradual platform lowering in emergency situations.
Ground Compensation Intelligence
Machine self-awareness system maintains stability in potholes or inclined surfaces through dynamic leveling control.
CANbus Proportional Control
Fieldbus architecture reduces wiring complexity while enabling precise, synchronized actuator control.
Smart Charge Management
Multi-parameter regulation of current/voltage/temperature ensures safe, efficient battery recharging cycles.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

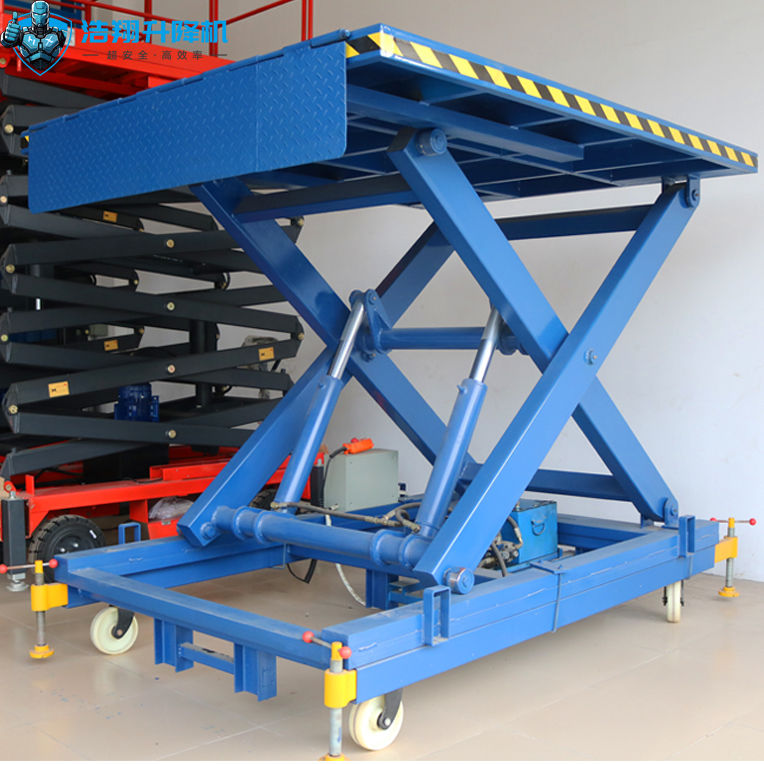

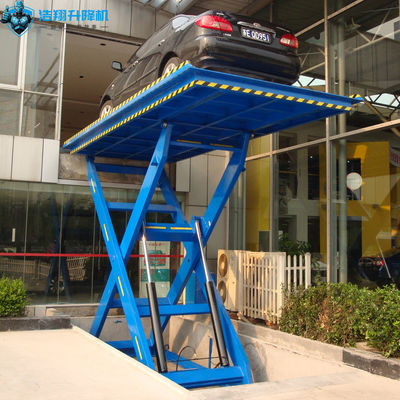

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
