Customized 5 Ton ultra Thin Small Scissor Lift Hydraulic Stationary Scissor Lift Platform Workshop Scissor Lift
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Fixed Scissor Lifting Platform |
| Country of Origin |
Made in China |
| Rainproof |
Anti-slip Patterned Plate |
| Load Capacity |
0.5-10t |
| Certification |
CE/ISO |
| Warranty |
12Months |
What is the Fixed Scissor Lift Platform?
The permanent scissor lift installation utilizes either structural steel or high-grade steel alloy construction, offering 0.1-10 ton load capacities. Its diamond-pattern scissor assembly and rigid platform architecture deliver exceptional stability for demanding applications. Safety systems integrate full-perimeter bumpers, two-hand control stations, mechanical locking legs, motorized safety screens, and access gates. Engineered for precision operation and corrosion protection, this equipment suits diverse sectors including engineering, textiles, and defense industries while supporting bespoke configurations.
What are the Benefits of the Fixed Scissor Lift Platform?
Total Hydraulic Transmission
Seamless speed modulation capability enhances power conversion efficiency.
Controlled Emergency Descent
High-precision counterbalance valves enable safe platform lowering during unexpected system failures.
Dynamic Leveling System
Machine intelligence continuously monitors terrain conditions, maintaining stability in uneven environments for operator safety.
Wire-Reduced Proportional Control
Optimized circuitry minimizes power loss while delivering precise, jitter-free performance.
Intelligent Power Management
Advanced charger with multi-stage current/voltage control prevents battery overcharging and thermal damage.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

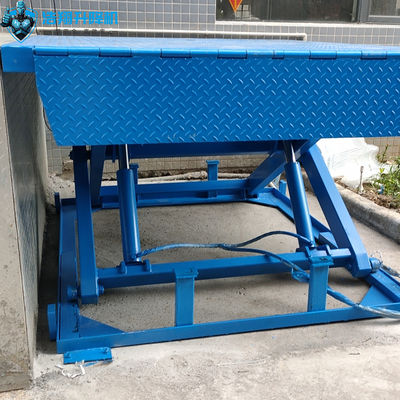

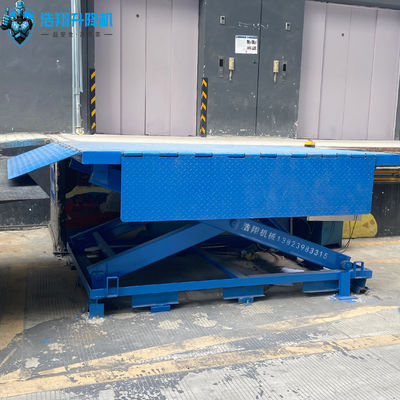

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
