Bowete 5m Lift Height Fixed Scissor Lift Hydraulic Scissor Lift Used Workshop for Sale
Product key attributes
| Parameter/Feature |
Specification Details |
| Product Name |
Fixed Scissor Lifting Platform |
| Country of Origin |
Made in China |
| Rainproof |
Anti-slip Patterned Plate |
| Color |
Customized Color Acceptable |
| Load Capacity |
0.5-10t |
| Material |
Steel |
| Certification |
CE/ISO |
| Showroom Location |
Canada, United States, Italy, Germany, |
| Warranty |
12Months |
What is the Fixed Scissor Lift Platform?
Built with options for steel truss framing or high-tensile steel decking, this stationary scissor lift accommodates 0.1 to 10-ton payloads. The system's reinforced scissor mechanism and rigid platform structure ensure maximum stability during heavy lifting. Standard safety features include proximity-sensing bumpers, dead-man control circuits, hydraulic outriggers, automatic safety curtains, and tubular railings. Designed for reliability and operator safety, it operates across automotive, aerospace, and electronics manufacturing with full customization available per client specifications.
What are the Benefits of the Fixed Scissor Lift Platform?
Closed-Loop Hydraulic Drive
Variable displacement pump system improves power utilization through stepless speed adjustment.
Fail-Safe Descent Circuit
Emergency operation with load-sensing cylinders ensures controlled platform lowering in critical scenarios.
Terrain Compensation System
Real-time incline detection maintains stability in uneven ground conditions through adaptive control algorithms.
Digital Proportional Valve Control
Reduced conductor count minimizes energy dissipation while maintaining micro-adjustment capabilities.
Temperature-Compensated Charging
Multi-stage current regulation with thermal monitoring protects battery integrity during recharge cycles.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

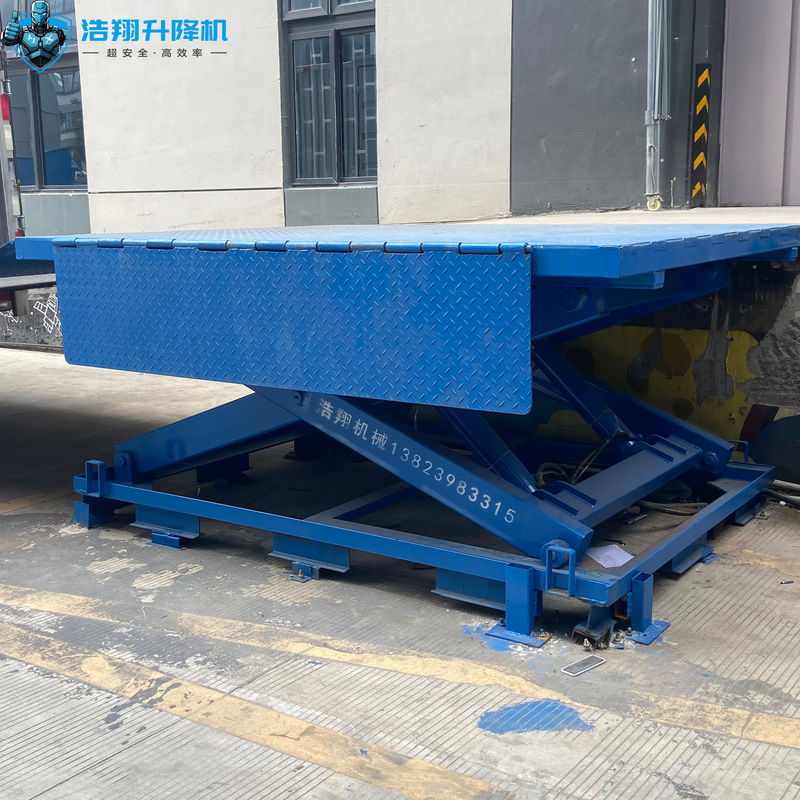

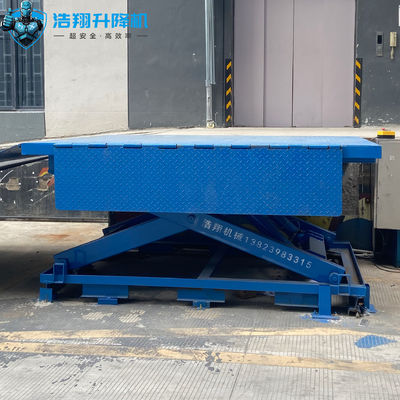

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
