China Suppliers Lifting Height 15m Stationary Hydraulic Electric Scissor Lift Table 2 Ton
Product key attributes
| Parameter/Feature |
Specification Details |
| Lift Drive / Actuation |
Hydraulic |
| After-sales Service |
Online Support |
| Application |
Building Material Shops, Machinery Repair |
| Color |
Blue,Customizable |
| Voltage |
220v/380v |
| Certification |
CE/ISO |
| Core Components |
Pressure vessel, motor, Bearing, Gear, Pump |
| Lifting height |
2-20 m |
What is the Fixed Scissor Lift Platform?
Constructed with either steel framing or high-tensile steel plating, the stationary scissor lift system supports loads from 0.1 to 10 metric tons. Its robust scissor mechanism and rigid platform design ensure structural coherence for heavy-duty operations. Safety provisions encompass 360-degree perimeter sensors, emergency-stop pushbuttons, stabilizing outriggers, rolling safety curtains, and guardrail systems. Engineered for precision and corrosion resistance, this equipment operates reliably across automotive, engineering, defense, textile, and electronics sectors while accommodating client-specific modifications.
What are the Benefits of the Fixed Scissor Lift Platform?
Full Hydraulic Actuation
Enhanced stepless speed regulation for optimized power efficiency.
Emergency Lowering Mechanism
Features precision relief-valve cylinders for controlled descent during emergencies, prioritizing personnel safety.
Incline Protection System
Advanced machine intelligence maintains platform stability in uneven terrain or inclined surfaces, safeguarding operators.
Proportional Control Technology
Reduced wiring complexity minimizes energy loss while ensuring precise, stable operation.
Intelligent Charging Protection
Microprocessor-controlled charger maintains optimal current/voltage parameters throughout battery cycles, preventing degradation.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

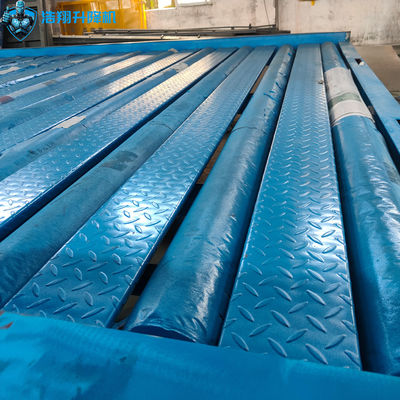

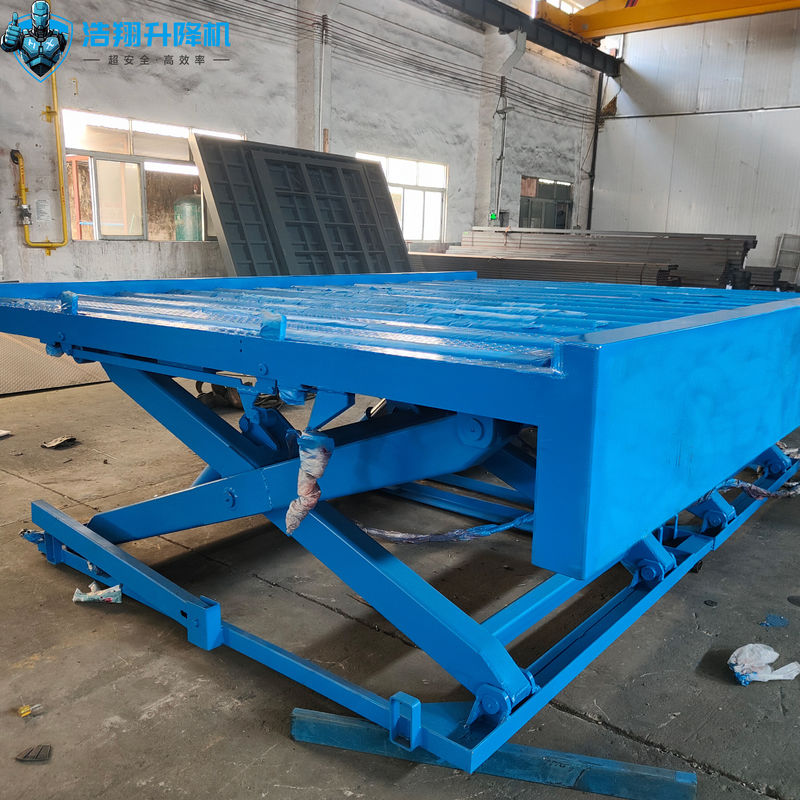

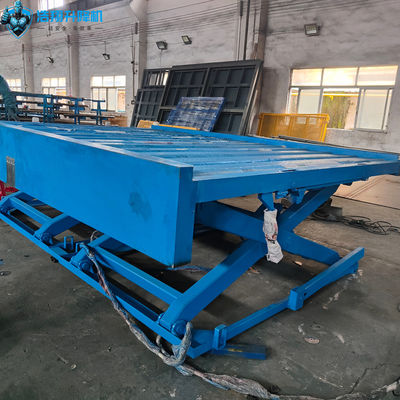

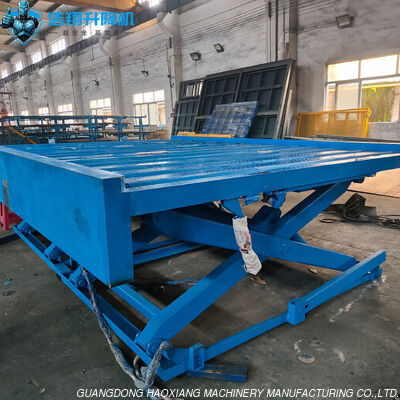

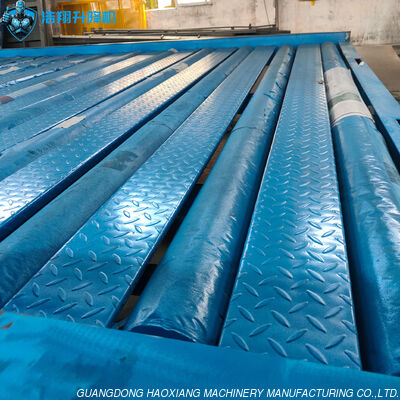

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
