Lifting Table Scissor Lift Platform Price 150Gkg Manual Lifter 200KG 300kg 500KG Weight Lifting Platform
Product key attributes
| Parameter/Feature |
Specification Details |
| Lift Drive / Actuation |
Hydraulic |
| After-sales Service |
Online Support |
| Application |
Widely |
| Color |
Customers' Requirements |
| Certification |
CE/ISO |
| Core Components |
Pressure vessel, motor, Bearing, Gear, Pump |
| Video outgoing-... |
Provided |
What is the Fixed Scissor Lift Platform?
The fixed scissor lift platform adopts a steel frame structure or a high-strength steel plate structure, with a bearing capacity ranging from 0.1 to 10 tons.The high tensile structural scissor arms and rigid platform construction provide unit integrity and allow high capacities. Safety features include all sided safety edges,deadman pushbutton control,safety support legs,safety roller curtains, portal rails, etc.
The fixed scissor lift platform is precisely designed, reliable, rust resistant and safe in operation. These are applicable in various industries like automobile, engineering, defense, textile and electrical and electronics industries and can be customized as per the requirement of the client.
What are the Benefits of the Fixed Scissor Lift Platform?
Full hydraulic drive
Stepless speed capacity enhancement, power utilization increased.
Emergency descent system
High-quality and high-precision with relief valve cylinder, in a sudden state can make the platform stable down to ensure the safety of life of staff.
Tilt protection system
The intelligent design of the whole machine makes the scissor lift platform in intelligent protection state in potholes, uneven or inclined ground to ensure the safety of the operators.
Proportional intelligent control
Reduce the wiring harness, reduce the energy loss, make the control accurate and steady.
Charge protection system
Intelligent charger, the entire charging process in the current, voltage, precise control, and will not damage the battery.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

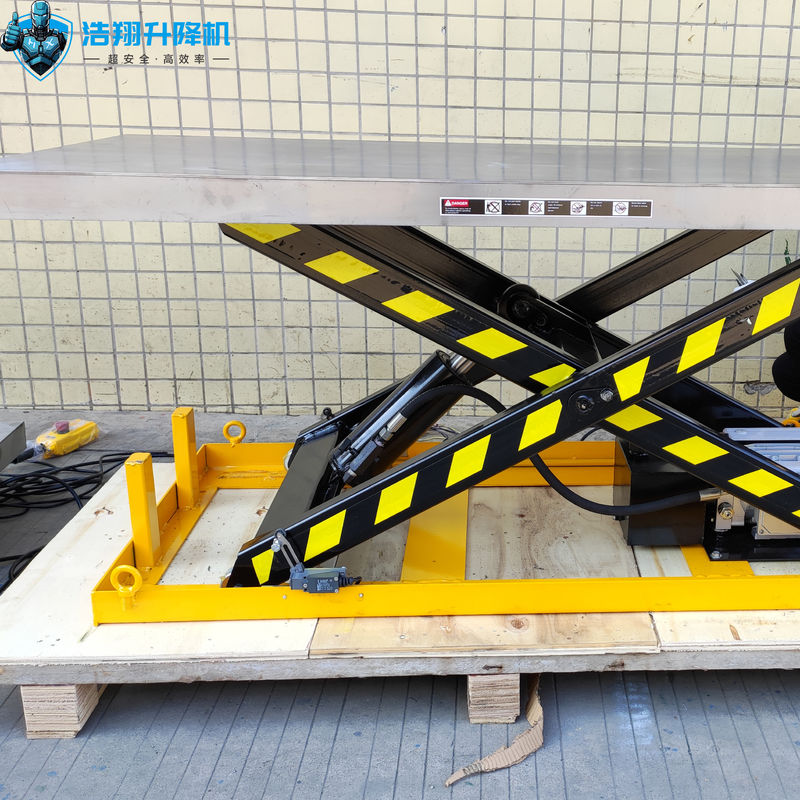

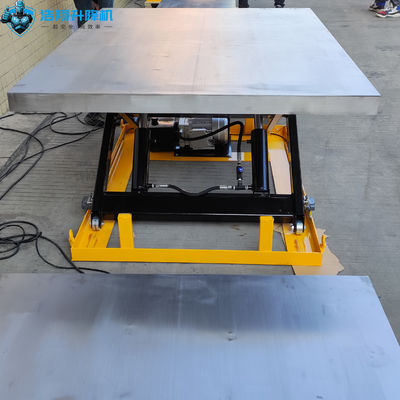

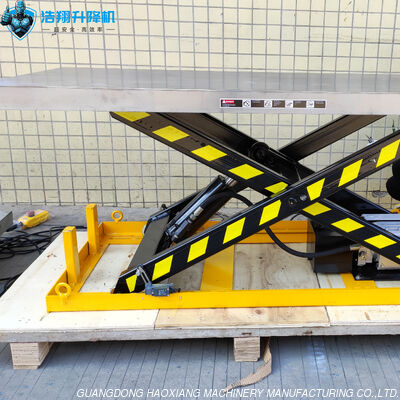

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd., situated in Xiaolan Town, Zhongshan City, operates as a cutting-edge technology enterprise specializing in hydraulic logistics solutions. As a licensed manufacturer of special-purpose equipment, the company boasts RMB 30 million in registered capital and exceeds RMB 100 million in annual production value. Our sprawling 21,500-square-meter production complex houses advanced manufacturing facilities, reflecting our commitment to precision engineering.
Guided by the mission to "deliver ultra-safe, intelligent lifting solutions that empower users," we focus on developing innovative hydraulic lifting platforms categorized under our "Safety-First, Performance-Driven" product philosophy. These systems combine avant-garde design with proven operational stability, finding applications across logistics networks, distribution centers, and industrial operations.
Leveraging automated production lines and ISO-certified management protocols, we've established benchmarks in material handling efficiency, particularly within smart warehouse ecosystems. To date, our installation network comprising 45 professional teams has supported over 40,000 client enterprises nationwide, offering guaranteed 2-hour onsite support in the Pearl River Delta economic zone and 24/7 rapid-response coverage across China. This comprehensive service infrastructure ensures seamless product utilization while minimizing customer downtime.
