Hydraulic Self Propelled Electric Scissor Lift Working Platform Custom
What is the Fixed Scissor Lift Platform?
Precision-Engineered for Safety
This fixed scissor lift platform prioritizes operator safety with cutting-edge features: 360° obstacle detection, redundant emergency stops, articulating support legs, motor-driven barriers, and modular handrails. Capable of handling 0.1–10 metric tons, it offers a choice between a rugged steel skeleton or high-strength plated frame. Its monocoque deck and parallelogram scissor design deliver exceptional stability for industrial use, while corrosion-resistant treatments extend service life. Versatile for industries from maritime to healthcare, it adapts fully to customer specifications.
What are the Benefits of the Fixed Scissor Lift Platform?
Adaptive Full-Flow Hydraulics
Continuous speed regulation via load-sensitive controls enhances powertrain efficiency, optimizing energy use and performance.
Priority Descent Functionality
For emergencies, specially engineered cylinders activate to enable steady, safe platform descent without compromising stability.
Self-Leveling Intelligence
Advanced machine awareness systems perform real-time adjustments, ensuring platform stability on potholes, ramps, or uneven ground.
CANbus-Integrated Controls
Proportional actuator synchronization is achieved through fieldbus technology, reducing wiring while improving precision.
Intelligent Charging System
Adaptive regulation of current, voltage, and thermal parameters safeguards battery health during recharging operations.
Products model and parameter series of the Fixed Scissor Lift Platform.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Rated load (kg) |
Lifting stroke (mm) |
Maximum height (mm) |
Lower height (mm) |
Table size (mm) |
Lifting time |
Motor power (kw) |
| SJG1-1.7 |
1000 |
1700 |
2150 |
450 |
2500×2000 |
20 |
3 |
| SJG10-1.7 |
10000 |
1700 |
2500 |
800 |
4000×2000 |
30 |
11 |
| SJG3-4 |
3000 |
3000 |
3650 |
650 |
1500×6000 |
40 |
5.5 |
| SJG1-4 |
1000 |
4000 |
4600 |
600 |
3100×5000 |
60 |
4 |
| SJG2-5 |
2000 |
5000 |
5900 |
900 |
7000×3000 |
60 |
5.5 |
| SJG3-6 |
3000 |
6000 |
7000 |
1000 |
6000×5000 |
70 |
7.5 |
| SJG5-1.7 |
5000 |
1700 |
2350 |
650 |
6000×2000 |
40 |
7.5 |

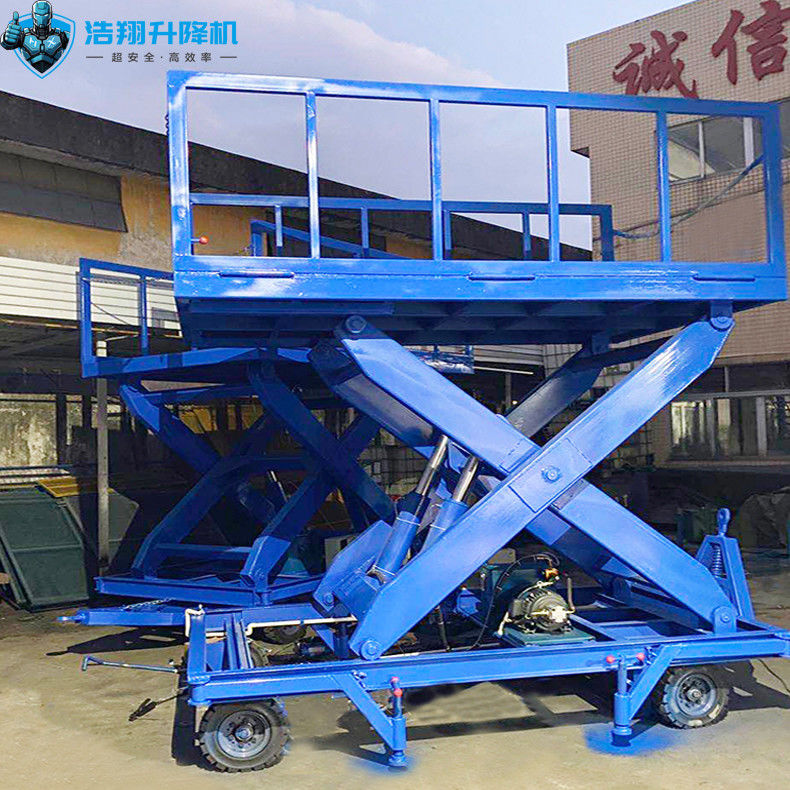

What does the Fixed Scissor Lift Platform look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
