Customized Container Hydraulic Loading Dock Platform Plate For Truck Warehouse

Large Image : Customized Container Hydraulic Loading Dock Platform Plate For Truck Warehouse

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	HX-GTY 6×8

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	USD 1500-2000 /UNIT
Packaging Details:	NAKES
Delivery Time:	7-15 WORKING DAYS
Payment Terms:	T/T
Supply Ability:	5000 UNIT PER YEAR

Contact Now

Customized Container Hydraulic Loading Dock Platform Plate For Truck Warehouse

Description

Product Name:	Hydraulic Dock Leveler	Country Of Origin:	Made In China
Operation Method:	Hydraulic	Lip Board Thickness:	15mm Anti-slip Grooved Plate
Core Components:	Motor, Oil Pump	Device Size:	W1980 × L1830× H495mm
Adjustment Range:	+400mm/-300mm	Application:	Loading And Unloading Goods Between Trucks And Warehouse
Warranty:	12 Months	Certification:	CE/ISO
Highlight:	Container hydraulic loading dock , Warehouse hydraulic loading dock , Warehouse hydraulic dock plate

Customized Container Hydraulic Loading Dock Platform Plate For Truck Warehouse

What is the Hydraulic Dock Leveler?
Transforming Loading Dock Operations with Intelligent Solutions
Modern dock levelers represent the nexus of safety and productivity in material handling environments. Found in high-volume distribution centers and intermodal facilities, these devices utilize servo-hydraulic technology to automate the connection between buildings and vehicles.

Performance Highlights:
Automatic Height Matching: Real-time adjustment to vehicle bed heights from 1,000mm to 1,600mm
Load Stability: Anti-slip deck surface with 1.5mm raised diamond pattern (R13 rating)
Energy Efficiency: Regenerative braking systems reducing power consumption by 30%
Connectivity: API integration with warehouse management systems (WMS)
Compliance: CE marking and EN 1398 certification for loading bay equipment

What are the Benefits of the Hydraulic Dock Leveler?
Type Selection Matrix
High-cycle operations (>100 cycles/day): Hydraulic
Hazardous environments: Pneumatic with intrinsically safe circuits
Budget-constrained projects: Mechanical with spring counterbalance
Material Durability
Abrasion-resistant steel (AR400/AR500) for heavy-forklift traffic
316 stainless steel options for food-grade facilities
Load Capacity Considerations
Dynamic load: 125% of stated capacity during operation
Static load: 200% for parked vehicles
Control Philosophy
Manual override for emergency situations
Automatic leveling via laser distance sensors
Integration with warehouse management systems (WMS)
Safety Architecture
Dual-channel safety circuits with redundant sensors
Emergency stop buttons at strategic access points
Audible alarms with adjustable volume control
Adaptability Features
Hydraulic cylinders with chromed piston rods
Self-cleaning lip hinges with grease fittings
Adjustable height settings via digital encoder

Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

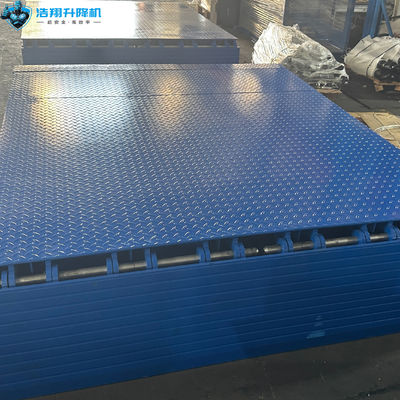

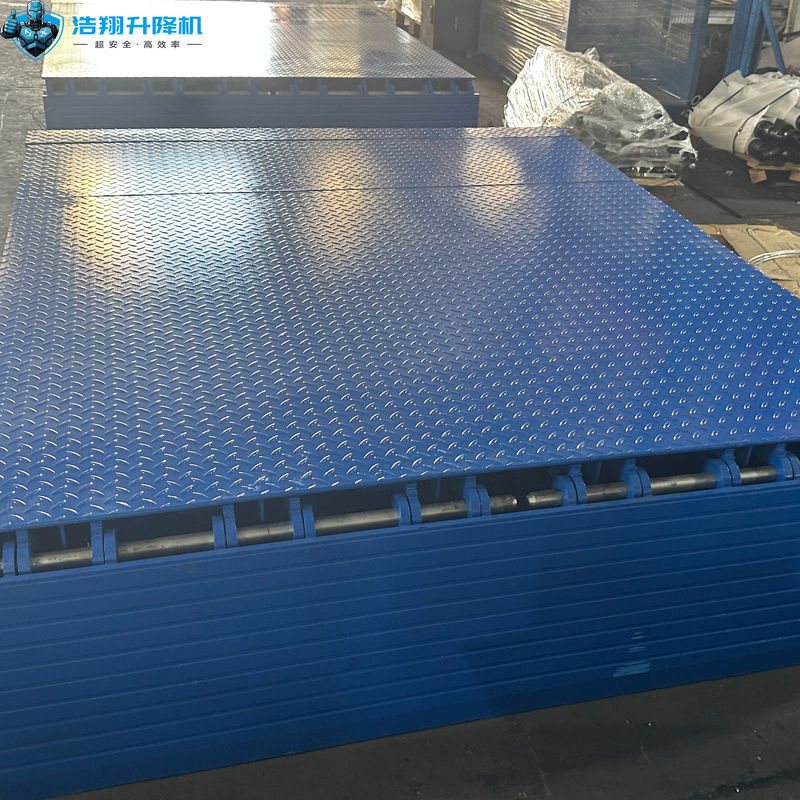

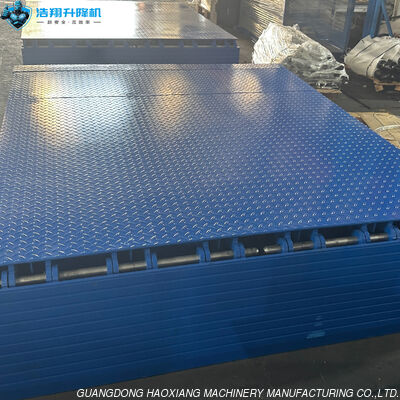

What does the Hydraulic Dock Leveler look like?
Customized Container Hydraulic Loading Dock Platform Plate For Truck Warehouse 0

What is the name of our company and where we are?

Haoxiang: Pioneering Hydraulic Lifting Solutions Since 2005
Strategically located in Zhongshan's manufacturing hub, our 21,500㎡ state-of-the-art facility produces industry-leading hydraulic equipment. As a government-recognized high-tech enterprise, we combine 30 million RMB capital strength with German-engineered precision.

Differentiators:

Product Portfolio: Full range of hydraulic lifts, dock levelers, and goods lifts
Technology: AI-powered predictive maintenance systems for equipment
Safety: Compliance with EN 1570 and ASME B30.1 standards
Capacity: 15,000 units/year production capacity with 89% automation rate
Service: 24/7 national support with 45 mobile service units
