OEM Adjustable Warehouse Dock Leveler Plate Elevated Lifts Heavy Duty

Name: OEM Adjustable Warehouse Dock Leveler Plate Elevated Lifts Heavy Duty
Brand: Guangdong Haoxiang Machinery Manufacturing Co., Ltd.
SKU: HX-GTY 6×8
Price: 1,750.00 USD
Availability: InStock

All Products

Hydraulic Cargo Lift
(15)

Industrial Hydraulic Lift
(11)

Freight Platform Lift
(13)

Industrial Goods Lift
(12)

Hydraulic Leveler
(10)

Mobile Loading Dock
(16)

Portable Forklift Ramp
(12)

Loading Dock Leveler
(7)

Fixed Dock Leveler
(7)

Fixed Scissor Lift Platform
(11)

Hydraulic Scissor Lift Table
(11)

Customer Reviews

great deal,the seller is very helpful.

—— Kevin

My clients are very satified with the products,the quality is very good.

—— Amy

I'm Online Chat Now

OEM Adjustable Warehouse Dock Leveler Plate Elevated Lifts Heavy Duty

Large Image : OEM Adjustable Warehouse Dock Leveler Plate Elevated Lifts Heavy Duty

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	HAOXIANG BRAND
Certification:	CE/ISO
Model Number:	HX-GTY 6×8

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	USD 1500-2000 /UNIT
Packaging Details:	nakes
Delivery Time:	7-15 working days
Payment Terms:	T/T
Supply Ability:	5000 UNIT PER YEAR

Contact Now

OEM Adjustable Warehouse Dock Leveler Plate Elevated Lifts Heavy Duty

Description

Product Name:	Hydraulic Dock Leveler	Country Of Origin:	Made In China
Operation Method:	Hydraulic	Core Components:	Motor, Oil Pump
Adjustment Range:	+400mm/-300mm	Application:	Loading And Unloading Goods Between Trucks And Warehouse
Certification:	CE/ISO	Color:	Blue,Customizable
Power Supply:	220v/380v	Working Lift:	More Than 20000times
Highlight:	OEM warehouse dock leveler , elevated warehouse dock leveler , OEM adjustable dock plate

OEM Adjustable Warehouse Dock Leveler Plate Elevated Lifts Heavy Duty

What is the Hydraulic Dock Leveler?
Enhancing Warehouse Efficiency Through Innovative Docking Technology
The exponential growth of e-commerce and just-in-time inventory systems necessitates sophisticated loading solutions. Modern dock levelers serve as critical interfaces in warehouses and distribution centers, ensuring rapid, safe transfers between buildings and transport vehicles while maximizing throughput rates.
This premium dock leveler features:
German-engineered hydraulic power unit with variable frequency drives
Architecturally inspired design with powder-coated aesthetics
Patented "soft-touch" deployment mechanism for personnel safety
Industry-leading 62dB operational noise levels
Triple-seal hydraulic system eliminating fluid leakage
PLC-integrated control panel with diagnostic capabilities

What are the Benefits of the Hydraulic Dock Leveler?
HaoXiang Dock Leveler: Engineering Efficiency into Logistics
This versatile loading platform creates a safe transition between docks and vehicles, allowing material handling equipment to enter/exit trucks without obstruction. The result is 50% faster loading times and enhanced workplace safety compared to traditional ramps.

Competitive Edge:
Non-Slip Diamond Plate
5mm chequered steel with electro-galvanized coating
Coefficient of friction >0.85 under wet conditions per DIN 51130
Industrial-Grade Motor
SEW Eurodrive helical gearmotor with thermal overload protection
20% more energy-efficient than asynchronous motors
Maintenance intervals extended to 24 months
Patented Milling Process
Computer-controlled groove pattern matching fork tine profiles
30% reduction in lateral fork movement during cargo transfers
Leak-Proof Cylinder Design
Multi-stage piston seals with Teflon backup rings
Withstands -30°C to 80°C temperature extremes

Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model	Equipment specifications (mm)	Load Capacity (t)	Pit size (mm)	Adjustment range (mm)
HX-GTY6×6	1830(W)×1830(L)×495(H)	6-20T	1870(W)×1830(L)×500(H)	+400/-300
HX-GTY6.5×6	1980(W)×1830(L)×495(H)	6-20T	2020(W)×1830(L)×500(H)	+400/-300
HX-GTY7×6	2130(W)×1830(L)×495(H)	6-20T	2170(W)×1830(L)×500(H)	+400/-300
HX-GTY6×8	1830(W)×2280(L)×495(H)	6-20T	1870(W)×2280(L)×500(H)	+400/-300
HX-GTY6.5×8	1980(W)×2280(L)×495(H)	6-20T	2020(W)×2280(L)×500(H)	+400/-300
HX-GTY7×8	2130(W)×2280(L)×495(H)	6-20T	2170(W)×2280(L)×500(H)	+400/-300
HX-GTY6×10	1830(W)×2850(L)×495(H)	6-20T	1870(W)×2850(L)×500(H)	+400/-300
HX-GTY6.5×10	1980(W)×2850(L)×495(H)	6-20T	2020(W)×2850(L)×500(H)	+400/-300

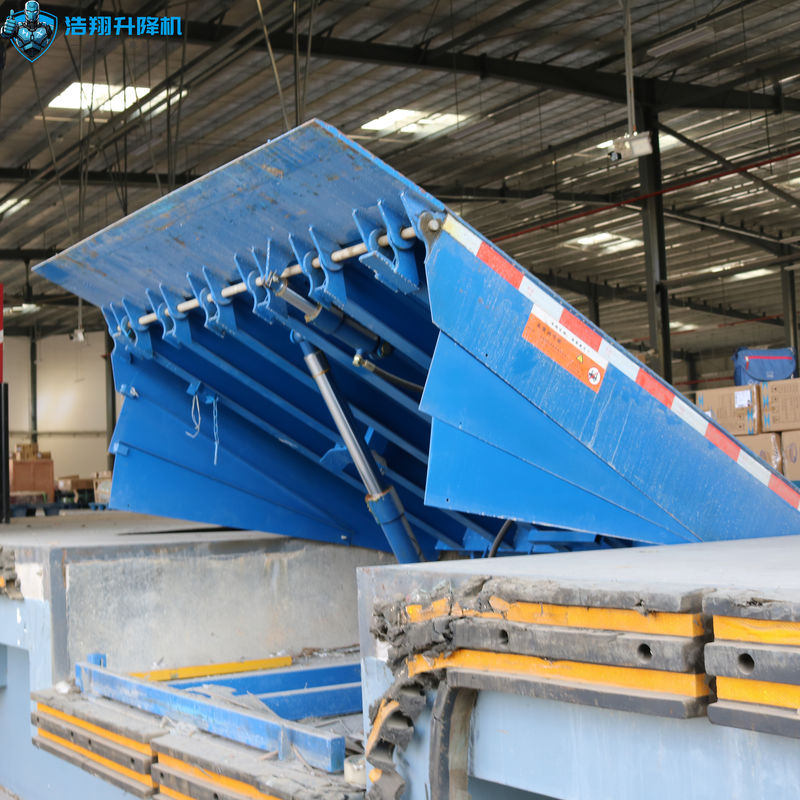

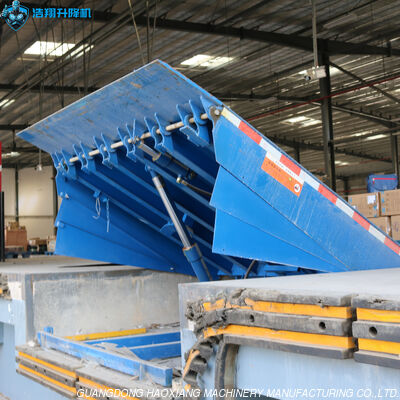

What does the Hydraulic Dock Leveler look like?
OEM Adjustable Warehouse Dock Leveler Plate Elevated Lifts Heavy Duty 0

What is the name of our company and where we are?

Haoxiang: Pioneering Hydraulic Lifting Solutions Since 2005
Strategically located in Zhongshan's manufacturing hub, our 21,500㎡ state-of-the-art facility produces industry-leading hydraulic equipment. As a government-recognized high-tech enterprise, we combine 30 million RMB capital strength with German-engineered precision.

Differentiators:

Product Portfolio: Full range of hydraulic lifts, dock levelers, and goods lifts
Technology: AI-powered predictive maintenance systems for equipment
Safety: Compliance with EN 1570 and ASME B30.1 standards
Capacity: 15,000 units/year production capacity with 89% automation rate
Service: 24/7 national support with 45 mobile service units
