Fixed Hydraulic Dock Leveler 8t 10t 12t Loading Ramp Equipment For Container
What is the Hydraulic Dock Leveler?
China-Manufactured Hydraulic Dock Leveler (CE/ISO Certified)
This industrial-grade dock leveler features a 15mm reinforced lip plate and operates via an electric hydraulic system with a high-efficiency motor and oil pump. Designed for material handling applications, it offers a vertical adjustment range of +400mm to -300mm, with standard dimensions of 6.5ft×6ft. Rated for 6–20-ton loads and over 20,000 operational cycles, the unit comes in a standard green finish (customizable RAL colors available). Powered by 220V/380V inputs, it includes a 12-month manufacturer warranty and features a fixed scissor lift mechanism with smooth open/close articulation for seamless vehicle integration.
What are the Benefits of the Hydraulic Dock Leveler?
15mm Heavy-Duty Lip Plate
Constructed from 15mm-thick reinforced steel, this dock leveler lip endures repeated impacts from forklifts and trucks, preserving structural integrity at high-stress docking interfaces.
20,000+ Cycle Endurance Rating
Designed for 24/7 industrial use, the leveler sustains peak performance through 20,000+ operational cycles—equivalent to 5+ years of daily 10-cycle operations in busy logistics hubs.
Rigid Scissor Lift Design
The fixed scissor mechanism provides exceptional lateral rigidity, minimizing platform flex (<2mm deflection) while handling 6–20-ton payloads during heavy cargo transfers.
±700mm Vertical Adjustment Range
With a +400mm elevation and -300mm depression capability, the leveler accommodates vehicles from low-profile delivery vans (100mm ground clearance) to semi-trailers (400mm bed heights).
Dual Global Certification
CE marking and ISO 9001 compliance ensure adherence to European safety directives and international quality management standards, validating manufacturing excellence.
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

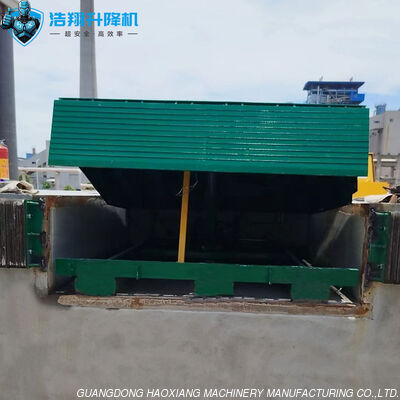

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
