Large Goods Loading Dock Leveler Hydraulic Warehouse Mobile Dock Equipment
What is the Hydraulic Dock Leveler?
CE/ISO-Compliant Hydraulic Dock Leveler (Made in China)
Engineered for loading dock efficiency, this unit incorporates a 15mm-thick steel lip board and an electric-driven hydraulic power unit with a heavy-duty motor and pump. It provides ±400mm height adjustment to accommodate varying truck bed heights, with a standard footprint of 6.5ft×6ft. Capable of sustaining 6–20-ton payloads through 20,000+ cycles, the corrosion-resistant green platform (color customization available) operates on 220V/380V power and includes a 1-year comprehensive warranty. Its articulating scissor mechanism ensures stable, vibration-free vehicle docking.
What are the Benefits of the Hydraulic Dock Leveler?
Ultra-Durable 15mm Steel Lip
Forged from high-strength 15mm alloy steel, this lip plate resists deformation from constant vehicle contact, ensuring reliable docking performance in high-throughput facilities.
Industrial-Grade 20,000-Cycle Lifespan
Engineered for marathon operation, the leveler maintains precision alignment through 20,000+ cycles—exceeding 5 years of non-stop use in demanding distribution centers.
Stabilized Scissor Lift Mechanism
Robust parallelogram scissor arms provide 360° stability, limiting platform movement to <1° tilt while supporting 6–20-ton loads during uneven cargo loading.
Adaptive ±700mm Height Range
The +400mm/-300mm adjustment caters to diverse fleet requirements, seamlessly interfacing with refrigerated trailers (350mm bed heights) and urban delivery vans (120mm ground clearance).
CE/ISO-Certified Quality Assurance
Dual compliance with EU machinery directives and ISO production standards guarantees global market access and operational safety in regulated industries.
Products model and parameter series of the Hydraulic Dock Leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
Equipment specifications (mm) |
Load Capacity (t) |
Pit size (mm) |
Adjustment range (mm) |
| HX-GTY6×6 |
1830(W)×1830(L)×495(H) |
6-20T |
1870(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6.5×6 |
1980(W)×1830(L)×495(H) |
6-20T |
2020(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY7×6 |
2130(W)×1830(L)×495(H) |
6-20T |
2170(W)×1830(L)×500(H) |
+400/-300 |
| HX-GTY6×8 |
1830(W)×2280(L)×495(H) |
6-20T |
1870(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6.5×8 |
1980(W)×2280(L)×495(H) |
6-20T |
2020(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY7×8 |
2130(W)×2280(L)×495(H) |
6-20T |
2170(W)×2280(L)×500(H) |
+400/-300 |
| HX-GTY6×10 |
1830(W)×2850(L)×495(H) |
6-20T |
1870(W)×2850(L)×500(H) |
+400/-300 |
| HX-GTY6.5×10 |
1980(W)×2850(L)×495(H) |
6-20T |
2020(W)×2850(L)×500(H) |
+400/-300 |

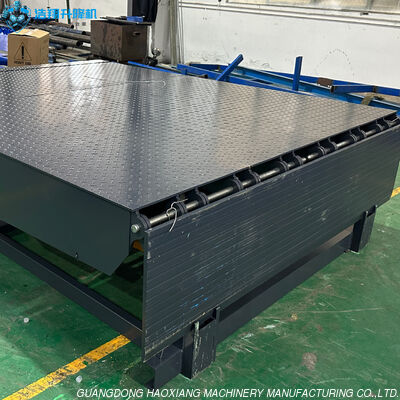

What does the Hydraulic Dock Leveler look like?
What is the name of our company and where we are?
Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".
The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
